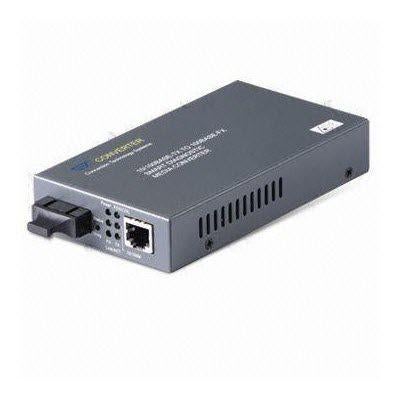

PCT-2212BTFX Converter from Connection Technology Systems is designed to fit into a series of CTS CCT-CHASSIS-II converter Chassis. This slide-in converter adapts the emerging CTS technology and able to expand a copper based network up to 40km through a single optical fiber and it also support existing dual fiber transceiver that can up to 100km.
In addition, built-in Switching ASIC has turned PCT-2212BTFX function just like a 2 ports switch instead of a traditional converter. User now may double their existing optical fiber bandwidth and upgrade their existing 100Base-TX or even 10Base-T network easily and more cost effectively.
PCT-2212BTFX is fully compliant with IEEE802.3 & 802.3u standards. The installation & operation procedures of the PCT-2212BTFX are simple & straightforward.
Diagnostic LEDs located in the front panel indicate the real time operating status. Moreover, if installed in the manageable CCT-CHASSIS-II, network administrator can remotely monitor the PCT-2212BTFX status via standard SNMP manager.

KEY FEATURES

• Comply with IEEE 802.3 10BASE-T, 802.3u 100Base-TX & 100Base-FX
• Store and Forward Switching Mechanism
• Auto-Cross over for MDI/MDIX in TP port
• Auto-Negotiation in TP port
• Support 1K MAC address
• Support 64K Byte Packet Buffer
• Support Link Path Through
• Support Power/Link Activity/FDX/Speed/Status LED
• Support Loop Back and Diagnostic Test Button
• Compatible with CCT-CHASSIS-II Remote Module Management (by CCT-2212)
• Remote port management function

State Monitor – Model/Media/Link/Speed/Duplex/Activity/Power
Port Configuration – Auto/Speed/Duplex/Flow Control

• IN-BAND Diagnostic (Loop Back Test)
• Fiber Transceiver Information
• Plug-and-Play installation
