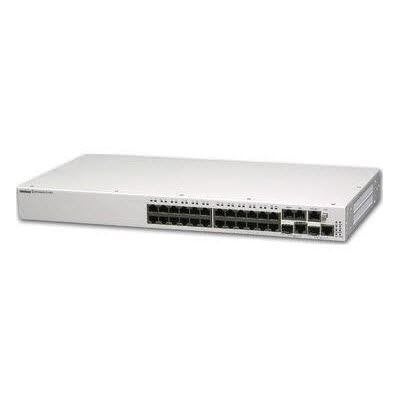

Alcatel’s OmniStack LS 6200 family provides the performance and advanced services required to support 21st century applications at a tremendous value. The OmniStack LS 6200 family is a great alternative when L3 routing or Gigabit speed on every port is not needed.OS-LS-6224P is a Fast Ethernet L2+ stackable fixed configuration chassis in a 1U form factor consisting of 24 10/100 RJ-45 ports with power over Ethernet, two 10/100/1000 RJ-45 ports and two combo ports. Combo ports consist of two additional 10/100/1000 RJ-45 and two mini-GBIC ports. MiniGBIC ports support Gigabit Ethernet MiniGBIC (SFP) optical transceivers. Stacking capability uses the two 10/100/1000 RJ-45 ports and standard Ethernet cabling.

EXPANSION / CONNECTIVITY

• Expansion Slots Total (Free) 2 ( 2 ) x SFP (mini-GBIC)
• Interfaces 24 x network node – Ethernet 10Base-T/100Base-TX – RJ-45
• 2 x network host – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
• 1 x management – RJ-45
• 2 x network stack device – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45

MISCELLANEOUS

• Rack Mounting Kit Included
• Authentication Method Secure Shell (SSH), RADIUS, TACACS+
• Compliant Standards FCC Class A certified, EN50081-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, VCCI Class A ITE, EN55022 Class A, EN50082-1, EN 60555-3, EN 60555-2

POWER

• Power Over Ethernet (PoE) Yes
• Voltage Required AC 120/230 V ( 50/60 Hz )
• Power Consumption Operational 51.5 Watt

ENVIRONMENTAL PARAMETERS

• Min Operating Temperature 0 °C
• Max Operating Temperature 50 °C
• Humidity Range Operating 5 – 95%

Dit is een nieuw product !!
3 stuks beschikbaar
