Intel® PRO/Wireless 2200BG WM3B2200BG WM3A2200BG Network Wireless Connection Mini PCI Card MiniPCI Chipset Wifi B/G PCI Type III Netwerkkaart Laptop Notebook WLAN Wireless LAN Adapter Network card 2.4Ghz and 5Ghz dual band IEEE 802.11b/g Up to 54Mbps Wireless Mini PCI Card 32-bit interface type IIIB, 3.3V only

-Prijs € 6,95 + € 2,95 verzendbijdrage DHL parcel track & trace levering op DHL parcel afhaalpunt (of optioneel DHL thuisbezorging)

-Interface 32-bit Mini PCI (Retro), type IIIB, 3.3V only PCI voor Legacy Retro Laptop systemen (Dit is geen PCI-E/PCI-Express Mini Card)

-Ondersteund Wireless 802.11g 54Mbps at 2.4ghz or 5GHz en voorgaande protocollen Wireless IEEE 802.11b. en lager

-Dual Band support voor 2.4GHz of 5Ghz met deze netwerkkaart.

-Met 54 Mbps tot 5 x sneller dan dan 802.11B modus (11Mbps) en ondersteuning for 11a and 11g clients.

-Wireless G heeft een betere stabiliteit en voorzien van de noodzakeljke beveiliging van WEP 64-bit / 128-bit versleuteling en WPA (WiFi Protected Access) beveiliging-standaarden met 256-bit encryptie

-Zo goed als nieuwe systeem-onderdelen,niet recent gebruikt, door professional uitgebouwd door derden en onderdeel van de voorraad geweest Levering OEM Stijl (Original Equipment Manuafacturer) voor systeembouwers.

-Intel driver update (9-8-2007) via de Microsoft Update Catalogus: voor Windows* XP (Professional, Home, Tablet), WIN 2000, Microsoft* Windows Vista, Windows 7 Windows 8 Windows 8.1 & later (Windows 10)

-Bezorging vanaf 1 werkdag / Delivery with tracking link within 24u~1 working day (Netherlands) Deze zending wordt geschikt gemaakt voor buszending met track & trace.

-3 maanden niet goed geld terug garantie (DOA ) Dead on Arrival

-Betaal veilig met PayPal is accepted, de betalingoptie is aanwezig met aankoopbescherming.


Specificaties

Package Contents Intel® PRO/Wireless 2200BG Network Connection Mini PCI type III Card WM3B2200BG Wireless Adapter

partnumbers DELL 0W3510 0C9063 C59689-004 C59618-008 1.00 Dell p/N Ow3510 CN-0W3510 OW3510 OC9063 Dell Mini PCI Network Wireless Card for Inspiron 700M Spares no:359107-001 Assembly no:350057-002 Customer:CNX5041729

Date First Available 2004-2006-2008 more revisions

Replacement for 802.11g 54MBps of 11Mbps 802.11b (5 keer de snelheid van de conventionele 802.11b WiFi-kaart).

Model WM3B2200BG WMAB2200BG

Broadcom Chipset Intel Pro Wireless

Standards IEEE 802.11b/g

Wireless Data Rates Up to 54Mbps

Security CKIP, TKIP, 128-bit and 64-bit WEP LEAP§, WPA, 802.1X, EAP-TLS, AES, LEAP

Kaart Interface Mini PCI Type III edge connector

Frequency Band 2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)

Channels 11 CH (US, Canada), 13 CH (ETSI), 14 CH (Japan)

Modulation 64QAM(54Mpbs, 48Mbps), 16QAM(36Mbps, 24Mbps), QPSK (18Mbps, 12Mbps), BPSK (9Mbps, 6Mbps), CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)

LEDs WLAN Activity Indicator

WLAN Radio State Indicator

Transmitted Power 19dBm (11b); 15dBm(11g) (at nominal temp. range)

Antenna 2 Hirose U.FL RF connectors

Operating Range Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 1000 ft (310 m) at 11Mbps

Indoor 80 ft (25 m), outdoor (LOS, Light-Of-Sight) 200 ft (60 m) at 54Mbps

Operating System Requirements Diver support WHQL Windows* XP (Professional, Home, Tablet), WIN 2000, Microsoft* Windows Vista, Windows 7 Windows 8 Windows 8.1 & later

Dimensions & Weight (44.60 mm x 59.75 mm x 4.9 mm)

Weight 12gram

Operating Temperature 0 ~ 80 °C (50%)

Humidity 50-90% Maximum, Non-Condensing


Description Intel manufacturer

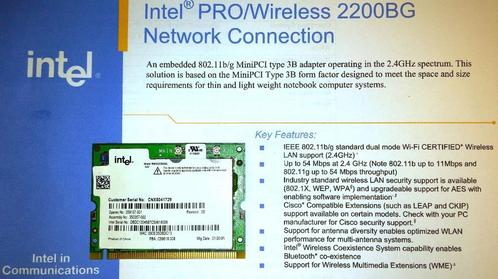

Intel® PRO/Wireless 2200BG Network Connection Product OverviewThe Intel® PRO/Wireless 2200BG Network Connection transfers data at fast wirelessspeeds (up to 54Mbps instantaneous data rate) over the air between two or more users orbetween a user and the wired network. The Intel® PRO/Wireless 2200BG NetworkConnection communicates to the wired LAN through 2.4GHz 802.11b or 802.11g AccessPoints (APs). The Intel® PRO/Wireless 2200BG Network Connection supports the MiniPCI Type IIIA/B form factor which is designed for notebook computer systems whereoverall thickness must be kept to an absolute minimum. The Intel® PRO/Wireless2200BG Network Connection is 802.11b and 802.11g compliant, PCI 2.3, ACPI 2.0,WHQL compliant, and WiFi certified

Hardware EnvironmentOverviewThe Intel® PRO/Wireless 2200BG Network Connection can be used in both notebook andtablet PCs with Mini PCI and antenna support to provide wireless network access. TheMini PCI card communicates over the air between two or more users or between a userand the wired network via an Access Point. The Intel® PRO/Wireless 2200BG NetworkConnection implements the IEEE 802.11b and 802.11g physical (RF) specifications. Itoperates at 1,2,5.5,6,9,11,12,18,24,36,48 and 54 Mbps @2.4GHz. The Mini PCI card usesthe RC82532MDE for modulation, demodulation, spreading, dispreading and processing,and the GQ82532RGE as a direct conversion radio of the RF-Base Band signals.Card DimensionsThe Intel® PRO/Wireless 2200BG Network Connection complies with the dimensions of aMini PCI type IIIA card and Mini PCI type IIIB card with the exception of the matedantenna connector height (deviates from specification by 0.1mm in the Z-dimension). ForType IIIA, the length is 50.65±0.15 mm and the width is 59.30±0.15 mm. For Type IIIB,the length is 44.30±0.15 mm and the width is 59.30±0.15 mm.

Copyright © 2003 Intel Corporation
