AdderView 108 MP KVM

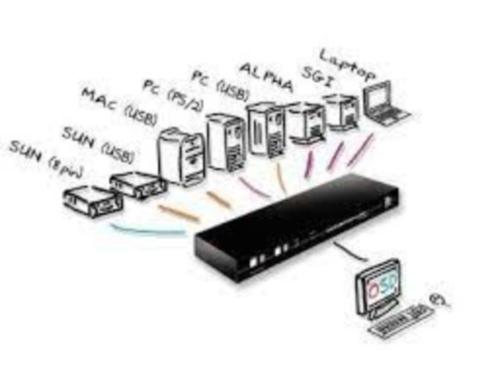

Av108mp adder view matrix mp 1 usb user kvm - 8 cpu adder av108mp front view description: av108mp-uk adder view matrix mp 1 usb user kvm - 8 cpus designed to control mixed pc, sun, mac and laptop computers from a single console, the adderview 108 mp range of popular features make it a good choice for pc only applications too. The adderview 108 mp is designed for demanding applications where reliable operation is needed across multiple computers and mixed operating systems and is a top choice with system administrators. Usb keyboard support enables you to choose the optimum pc, sun or mac style keyboard to control your computers. Whatever the application, the 108 mp is a switch that will not disappoint. This unit works with the ccusb and ccsun adder adaptor cables to allow the use of almost any platform computer. Features: sun, pc and mac style usb keyboards and mice supported on screen display has comprehensive channel selection and security features choose ps/2, usb, or sun (8-pin) style computers cables rack mountable in a standard 19 inch rack flash upgradeability ensures support for future devices units may be synchronised to enable simultaneous switching of multiple video heads. The adder av108mp enables one user to control multiple computers from usb keyboard and mouse enables desktop and laptop pcs, sun (usb), sun (8-pin), mac (usb), sgi, alpha and rs/6000 computers to be controlled from a common kvm console usb keyboard and mouse support enables kvm console devices to be chosen that are the most appropriate for multi-platform control (keyboards and mice for all the main computer types are available in usb format) on-screen menu allows computers to be selected by name or description channel switching by osd, front panel key, keyboard hotkey, or 3 button mouse supports high bandwidth monitors at resolutions up to 1920 x 1440 fully flash upgradeable via the serial port supports a very wide range of software including windows 3.x, wfwg, 95, 98, 2000, nt, me, xp, dos, unix, linux, netware, os/2, bsd, mac os, sun os etc. Supports several computer keyboard styles: ps/2 (6-pin mini-din), usb, sun (8-pin mini-din), at (5-pin standard-din) supports several computer mouse styles: ps/2 (6-pin mini-din), usb, sun (8-pin mini-din), rs232 (9-pin d-type) supports several computer video styles: high bandwidth analogue video signals with separate or combined sync signals presented on standard 15-way hd d connectors or 13w3 connectors video channels support display data channel (ddc/ddc1/ddc2) signalling supports desktop and laptop pcs, sun (usb), sun (8-pin), mac (usb), rs/6000, alpha, and silicon graphics computers front panel healthy voltage indicator automatic detection of the country type of the controlling keyboard enables computers to configure themselves for the correct keyboard layout. Optionally, the country type may be specifically defined by the user support for up to 16 user access profiles and 512 named computers the colours and position of the osd menu may be changed by each user osd routing status window shows the computers that are currently being controlled by the kvm consoles supports three computer control modes - exclusive, shared and video only optional small-sized reminder banner permanently confirms the selected computer compact 1u case may be neatly fitted under a monitor or fixed into a 19 inch rack smartboot ensures reliable simultaneous bootup of all computers user and computer name information may be uploaded to a pc and saved in an excel compatible file. This file may be edited in excel and downloaded back to the adderview can be cascaded to a depth of four levels to provide a video switching network automatically restores keyboard and mouse states when channel changed supports pc keyboard modes 1,2 and 3 and pc mouse prompt and stream modes for maximum compatibility includes screen saver, auto-scan and name search options supports moving or blank screen savers and auto-logout on screen save option wheel mouse may be used to launch and operate the osd menus user may select english, french, german or swedish osd menus supports user definable hotkeys and mouse modes positive confirmation of selected ports on local and cascaded adderviews achieved by full acknowledgement signalling across all cascaded units supports microsoft intellimouse, intellimouse explorer and other common wheel mice mouse restoration functions to enable ~hot plugging~ of certain systems front panel controls may be locked for secure operation standard colour-coded cable connections make installation easy and inexpens adder av108mp setup picture specification: av108mp-uk adder view matrix mp 1 usb user kvm - 8 cpus 1x keyboard, monitor and mouse ports to 8 cpus. Can be cascaded to support over 500 computers from one on screen display menu. Cpu connectors 8 x 15 way hd d female for cpu video. 8 X 6 way mini din female for cpu keyboard. 8 X 6 way mini din female for cpu mouse.
