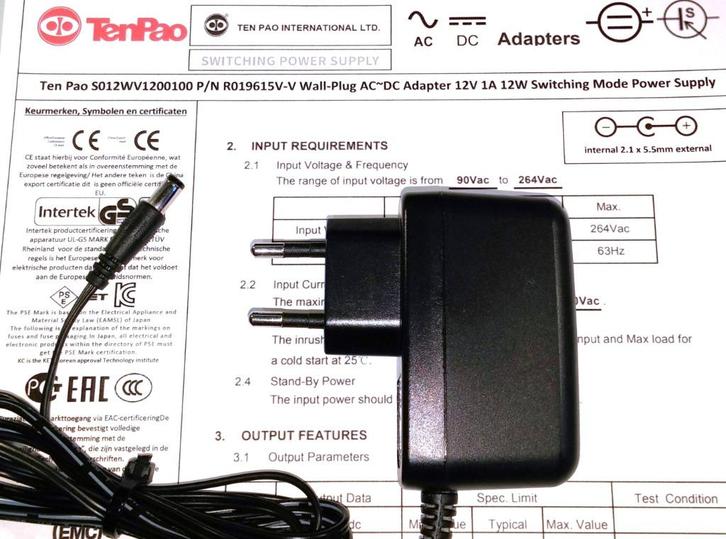

Ten Pao S012WV1200100 12V 1A 12W AC DC Adapter Lader Voeding

Ten Pao S012WV1200100 Switching Power Supply 12V-Volt 1A (1000mA) 12W-watt AC DC Adapter Lader Oplader


-Prijs € 5,95 + € 3,95 verzendbijdrage (vanaf) DHL busparcel track & trace afhaalpunt (of optioneel DHL thuisbezorging)

-A-merk originele Ten Pao adapter / voeding voor ITE ICT en universeel gebruik

-Met 12-Volt (1000mA) 1.0 (Ampère) Extra Amperage / Stroomsterkte beschikbaar bij vervanging van 12-Volt 0.5A (Ampère)(500mA 6W) adapters, een hogere current zorgt voor minder energie-verbruik, door efficiëncy (lagere belasting) en zorgt voor langere levensduur van Switching AC DC Adapter,voeding oplader / lader.

-Switching (SMPS) mode adapter / schakelende gestabiliseerde voedingen zorgen voor een stabiele stroomvoorziening met hoge mate van effciëncy (96%) Dit in tegenstelling tot de Lineaire Adapters (bijvoorbeeld budget muur-plug stroom-adapters Low Cost)

-Stroomadapters voor (I.T.E.) ICT informatie-technologie en communicatie equipment / appratuur, de zogenaamde (LPS); Low Power Supply classificatie.

-De EnergyStar (effciëncy level) regulatie richtlijnen Level V vijf (5) zijn in het jaar 2011 tot 2012 ingevoerd en zijn actueel. Na deze rating is Europees de EnergyStar (EU) CoC Tier 1,2 in 2014 tot het jaar 2020 Effciëncy Level VI (6) ingevoerd.

-RoHS certified een green product zonder gebruik van extreem schadelijke materialen bij productie en restproduct

-Veiligheid, in de vorm (Double insulated) veiligheidsklasse class 2, deze voeding kan veilig worden gebruikt zonder randaarde (Eurostekker stekker/ plug).

-3 maanden niet goed geld terug garantie

-Betaal veilig met paypal, de betalingoptie is aanwezig met aankoopbescherming

Specificaties / Features

Schakelende Switching mode Power Supply Wall-plug / muurplug adapter

-Input Voltage: AC C7 Plug / Euro 100~240V (0.4A) 400mA 50~60HZ 90 VA

-Output DC: 12V Volt / maximaal 1 Ampere (1000mA)

-Maximale output 12W /Watt

-DC plug Rond Female

-Interne diameter 2.1mm

-Externe diameter 5.5mm

-Lengte Plug 8mm

-Afmetingen lxbxh: 75mm x 75mm x 28mm approx (adapterblok excl. DC snoer & excl. EU Plug)

-Lengte DC kabel snoer (150cm) meter 3-Pin Plug

-Gewicht 100 gram

-ITE (information technology equipment) Power Supply LPS (Limited Power Source) Class III (3) Class B ICES-003/ EN60950-1.

Keurmerken en Certificaten ten aanzien van Safety Beveiliging, kwaliteit en milieu

-TÜV Rheinland NEMKO Intertek GS SafetyMark Geprufte Sicherheit.

-CE keurmerk certificaat Conformité Européenne in overeenstemming gemaakt en voor gebruik conform de Europese Wet en regelgeving.

-RoHS certificate (Restriction of Hazardous Substances) (geen extreme schadelijke materialen bij constructie en recycling) Richtlijnen voor deze adapters zijn; EU Directive 2011/65/EU "RoHS" , EU Directive 2012/19/EU "WEEE" & REACH

-Voldoet aan Energy Efficiency Level 5 (V) richtlijnen Implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies efficiency standard regulates No Load power consumption can’t be greater than 0.3W / The average active mode efficiency shall be higher than 77.85%

-EMC (Electro Magnetic Compatibility) (EMI & Radio Signalen) Standards EN55022 / (EN55024) - IEC61000-4-2 Electrostatic Discharge (ESD) - IEC61000-4-3 Radiated Electromagnetic Fields(RS) (Radio- frequency Electromagnetic Field Susceptibility Test, RS, 80-1000MHz,3V/m, 80%AM(1KHz) - IEC61000-4-4 Electrical Fast Transient / Burst (EFT) Power Line to Line: 1KV - IEC61000-4-5 Lightning Surge Attachment 9.2.5 IEC61000-4-6 Conducted Radio Frequency Disturbances (CS) Conducted Radio Frequency Disturbances Test, CS, 0.15-80 MHz, 3V/m, 80%AM, 1KHz, Performance Criterion A. 9.2.6 IEC61000-4-11 Voltage Dips/Short Interruption/Variations

Getest op gevoeligheid bij interference EMI & radiosignalen. Dit product kan tegen tegen elke hiervoorgenoemde interferences / stoorsignalen

-PROTECTION REQUIREMENT Over-Voltage Protection Over-voltage protection shall be included in the adaptor circuit. A single component failure must not cause an over voltage. Over-Current Protection The adaptor must have a current limiting function on the output voltage. in overload mode, the output must drop to a low voltage. Short-Circuit Protection The adaptor must withstand a continuous short circuit on the output without damage.

Life Time / Reliability:

MTBF (Mean Time between Failures) When the power supply is operating within the limits of this specification the MTBF shall be at least 50.000 hours at 25℃ temperature.

Environment conditions

Operating Temperature: 0℃ ～40℃

Relative Humidity: 10% ～ 90%

Altitude: Sea level to 2,000 m.

Vibration: 1.0mm, 10 –55Hz, 15 minutes per cycle for each axis (X, Y, Z).


Description manufacturer Ten Pao Conformity Product declaration data

TEN PAO P/N R019615V-V Ten Pao S012WV1200100 Replaces: Shenzhen Transin Technologies co. ltd TS-A012-120010EIV-L SMPS

Certified Standard

GS Germany EN60950-1

CE Europe EN60950-1

EMC STANDARDS (Electromagnetic Compatibility) / EMI Standards (Electromagnetic Interference)

The power supply shall meet the radiated and conducted emission requirements for EN55022.

EMS Standards

The power supply shall meet the following EMS standards (EN55024)

9.2.1 IEC61000-4-2 Electrostatic Discharge (ESD) (energy storage capacitance of 150pF, and discharge resistance of 330O.
8KV air discharge, 4KV contact discharge)

IEC61000-4-3 Radiated Electromagnetic Fields(RS)

IEC61000-4-4 Electrical Fast Transient / Burst (EFT) powerline to line @ 1KV

IEC61000-4-5 Lightning Surge Attachment powerline to line @ 1KV

IEC61000-4-6 Conducted Radio Frequency Disturbances (CS) Conducted Radio Frequency Disturbance

Certificates about the use of Hazardous Substances (RoHS)

The components and used materials shall be in compliance with

EU Directive 2011/65/EU "RoHS" EU Directive 2012/19/EU "WEEE"

Short-circuit protection test (Short at end of DC plug)

Over current protection (Ocp:A)
Omschrijving fabrikant

Ten Pao is now 42 years in the power adapter business! We are a world-class Hong Kong public traded manufacturer of power supply systems and is committed to be the leader in environmentally compliant products to our strategic partners in the global community.

Our 7,400+ employees stationed at our four factory sites in China, together with our regional offices abroad, are ready to support your requirements for power conversion solutions.

Founded in 1979, Ten Pao has enjoyed remarkable growth and we have marketed our products to countries and regions around the world, building long lasting relationships with many prominent world-class manufacturers.

We have assembled an outstanding design team in the engineering department to meet your challenges, and we also operate an agency approved testing laboratory with ISO14001:2004 and ISO9001:2000 accreditations to help speed up the process of product commercialization.

Our products are designed to pass international safety specifications and accreditation of numerous countries and regions around the globe.

Our products fully conform to the latest energy efficiency ratings and environmental requirements, which are demanded in to-days markets.

Our products power range extends from 2W to 1000W and our products include a wide array of switching and traditional linear transformers.

Ten Pao provides one-stop shopping from stamping, tooling, engineering, and supply chain management which further helps our customers to manage their business.

Ten Pao International Ltd is a world-class manufacturer of super efficient power supply systems and is committed to be the leader in environmentally compliant products to our strategic partners in the global community.

Our 7,400+ employees stationed at our four factory sites in China, together with our regional offices abroad, are ready to support your requirements for power conversion solutions.
Founded in 1979, Ten Pao has enjoyed remarkable growth and we have marketed our products to countries and regions around the world, building long lasting relationships with many prominent world-class manufacturers.
Ten Pao offers a large selection of power adapters. We are the key OEM supplier for many Asian, European and US multinationals.
Our products in general exceed the international quality and environmental standards.

bron/ source: Ten Pao international/ Electronics (Huizhou) Co. Ltd. China
