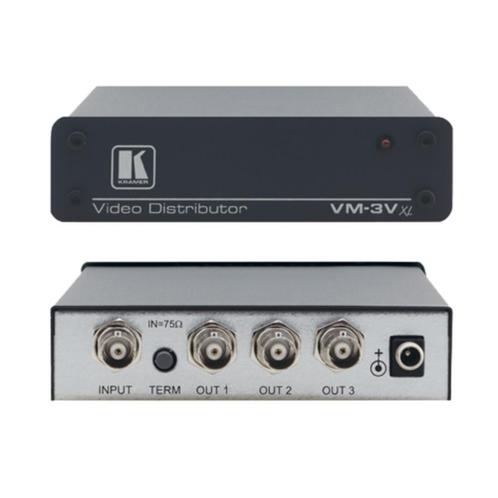

The KRAMER VM-3V/xl is a full bandwidth, 1:3 video distribution amplifier designed for studio and other demanding applications. The VM-3V/xl splits a single input source into three identical outputs with no discernible signal degradation. Video output and input signals are AC coupled for maximal flexibility.
The VM-3V/xl receives external 12V DC feed, and is housed in a very compact enclosure, making it ideal for field use.
Function: DA 1:3 Composite/Single Component Video DA
Input: 1 Composite Video, 1Vpp/75ohm, on a BNC connector

• Output Type: 3 Composite Video, 1Vpp/75ohm, on BNC connectors
• Output Coupling: AC
• Controls: Termination Switch
• S/N Ratio: 77dB
• Video Bandwidth: 430 MHz -3dB
• Max Video Output: 2Vpp
• Diff. Gain: 0.05%
• Diff. Phase: 0.13Deg.
• K-Factor: 0.2%
• Dimensions (W, D, H): 11.7cm x 6cm x 3.2cm (4.6″ x 2.4″ x 1.3″)
• Weight Approx.: 0.28kg (0.62lbs.)
• Power consumption: 0.6VA
• Power Source: 12VDC, 50mA

Dit is een nieuw product !!
6 stuks beschikbaar
