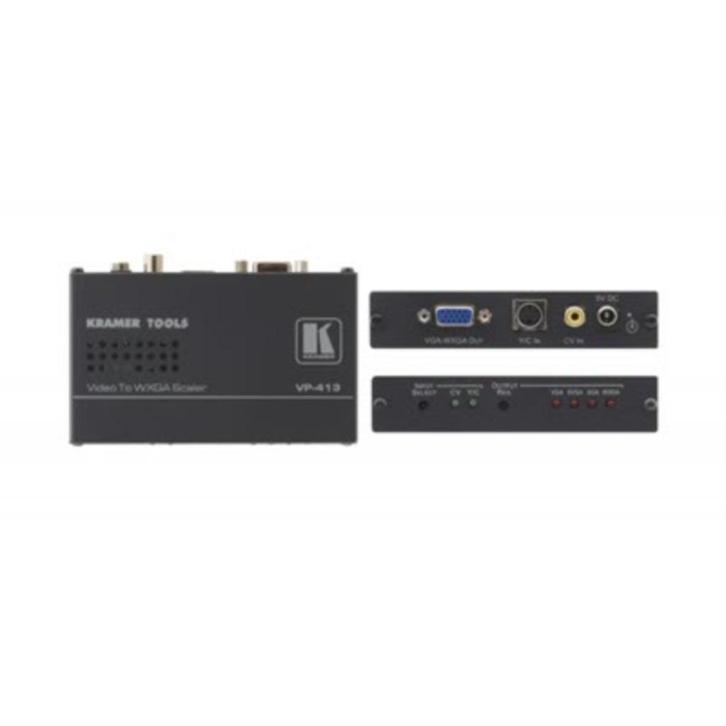

The VP-413 a high-performance digital scaler for composite video and s-Video (Y/C) signals. It scales a video signal to a selectable computer graphics video on a 15-pin HD connector.

• Multi-Standard – PAL−B & NTSC (3.58).
• Input – Composite video and s−Video.
• Output – 1 computer graphics video on a 15−pin HD connector.
• Computer Graphics Output Resolutions – VGA (640×480), SVGA (800×600), XGA (1024×768), and WXGA (1366×768).
• Control – Front panel input source and output resolution buttons with LED status.
• 3D De-Interlacer.
• 3D Comb Filter.
• Compact Kramer TOOLS™ – 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.

TECHNICAL SPECIFICATIONS

• INPUT: 1 CV 1Vpp/75Ω on an RCA connector; 1 Y/C 1Vpp/75Ω (Y); 0.3Vpp 75Ω (C) on a 4−pin connector.
• OUTPUTS: 1 VGA (VGA through WXGA) on 15−pin HD (F) connector.
• OUTPUT RESOLUTION: VGA (640×480), SVGA (800×600), XGA (1024×768) and WXGA (1366×768).
• OUTPUT REFRESH RATE: 60Hz.
• CONTROLS: Pushbuttons and LEDs for selection of input source and output resolution.
• POWER CONSUMPTION: 5V DC, 800mA (typical).
• DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7″ x 2.95″ x 0.98″) W, D, H.
• WEIGHT: 0.3kg (0.67lbs) approx.
• INCLUDED ACCESSORIES: Power supply.
• OPTIONS: RK−3T 19″ rack adapter.

Dit is een nieuw product !!
