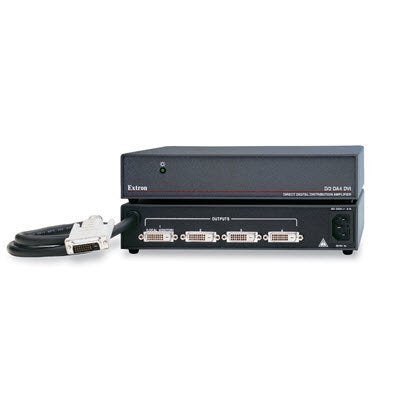

The Extron D/2 DA4 DVI is a one input, four output distribution amplifier for DVI digital video signals. It accepts DVI – Digital Visual Interface signals from a computer and distributes up to four identical, independently buffered outputs. The DVI digital output signal can be run up to 15 feet (4.6 meters) using standard DVI patch cables.For applications requiring longer cable runs, Extron has developed the IN9700 Series long distance DVI cables which allow DVI signals to be transmitted up to 75 feet (22.9 meters). For applications requiring even greater lengths, the Extron DVI 201 transmitter and receiver are capable of sending DVI signals up to 200 feet (60 meters) using CAT 5 cable, and the FOX 500 DVI fiber optic transmitter and receiver set can achieve transmissions at extreme distances up to 30 km (18.75 miles). The D/2 DA4 DVI accepts TMDS Transition Minimized Differential Signaling DVI signals at a bit rate of up to 1.6 gigabits/sec/color. It is equipped with DVI-D connectors for a single link of DVI-D.

Features

• Input: DVI-D male on attached cable
• Output: Four DVI-D female connectors
• Supports single link DVI-D signals up to 1920×1200, including HDTV 1080p/60
• DDC signals are routed to output 1
• Internal universal power supply
