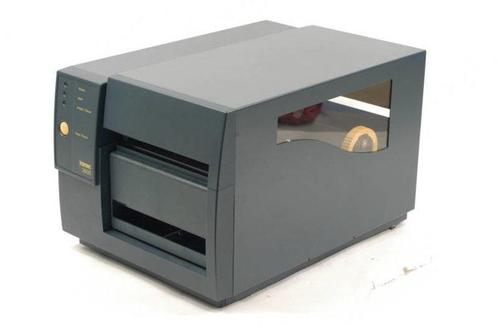

INTERMEC EASYCODER 3600 Barcode Labelprinter - 203 Dpi

Intermec EasyCoder 3600 General Specifications

Direct Thermal and Thermal Transfer Printer for high volume wide self-adhesive label, ticket and tag applications. Internal rewind and auto-peel.
Model
Intermec EasyCoder 3600
Physical Characteristics


Length: 44cm (17.25)


Height: 27.7cm (10.9)


Width: 30.5cm (12)


Weight: 20.4kg (45 lbs)



Print Specifications


Element: 0.125mm (0.00492)


Maximum Length: Unlimited


Maximum Width: 168mm (6.6)


X Dimension: 0.13 to 1.27mm (5 to 50mil)


Speed: 51, 77, 102 or 127mm/sec (select 2, 3, 4, or 5/sec)


Resolution: 8 dots/mm (203dpi)
Media Specifications




Roll: 152m (6,000 linear)


Roll Dimensions: 213mm (8.38)


Width: 76 to 170mm (3 to 6.7)


Thickness: .08 to .3mm (0.003 to 0.012)


Core Size: 76mm (3)


Ribbons Specifications


Roll: 152m (6000 linear)


Widths: 77, 104, 137 & 170mm (3, 4.1, 5.4, 6.7)


Standard Features


Auto-Peel with liner take up


Digital thermal compensation-dot-by-dot- electronics for excellent print quality, even for rotated bar codes


Compatible with Intermec's printer family and supports 86XX printers in emulation mode


Industrial design with enclosed label supply


128K NVRAM for permanent storage of downloaded fonts, graphics and label formats


Communications


Rate: 1,200 to 19,200 bps


Flow Control: XON/XOFF, ready/busy


Asynchronous: RS-232C, RS-422, RS-485


Fonts and Graphics


21 resident bitmapped fonts (includes OCR-A and OCR-B)


Outline font


Supports user-defined fonts and graphics


Language


IPL is an advanced printer programming language that includes many features not available in other bar code printers


Advanced bar code algorithms handle all required encodation


Error detection protocols verify secure data transmission


Command errors and printer status are easily identified to your host


Communicates in printable ASCII or control characters


Independent character and field rotation


Connectivity


Serial interface standard



Microsoft Windows

Intermec InterDriver standard Windows 3.x, 9x, NT 4.0/5.0


Intermec ActiveX controls standard Windows 9x, NT 4.0/5.0


PrintSet printer configuration utility Windows 3.x, 9x, NT 4.0/5.0


NetPilot + Thin Wizard network configuration utility (with optional Ethernet) Windows 9x, Windows NT 4.0/5.0


Character Sets


Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII


Power Supply


100, 115, 200 and 230 VAC = 10%; 50 Hz to 60 Hz
