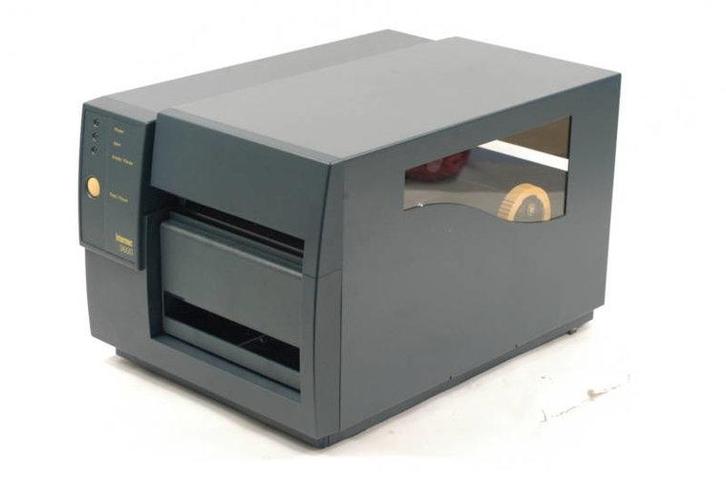

Intermec EasyCoder 3600 General Specifications


• Direct Thermal and Thermal Transfer Printer for high volume wide self-adhesive label, ticket and tag applications. Internal rewind and auto-peel.

Model

• Intermec EasyCoder 3600

Physical Characteristics

•

  Length: 44cm (17.25")

•

  Height: 27.7cm (10.9")

•

  Width: 30.5cm (12")

•

  Weight: 20.4kg (45 lbs)

Print Specifications

•

  Element: 0.125mm (0.00492")

•

  Maximum Length: Unlimited

•

  Maximum Width: 168mm (6.6")

•

  "X" Dimension: 0.13 to 1.27mm (5 to 50mil)

•

  Speed: 51, 77, 102 or 127mm/sec (select 2", 3", 4", or 5"/sec)

•

  Resolution: 8 dots/mm (203dpi)



  Media Specifications

•

  Roll: 152m (6,000" linear)

•

  Roll Dimensions: 213mm (8.38")

•

  Width: 76 to 170mm (3 to 6.7")

•

  Thickness: .08 to .3mm (0.003 to 0.012")

•

  Core Size: 76mm (3")

Ribbons Specifications

•

  Roll: 152m (6000" linear)

•

  Widths: 77, 104, 137 & 170mm (3", 4.1", 5.4", 6.7")

Standard Features

•

  Auto-Peel with liner take up

•

  Digital thermal compensation-dot-by-dot- electronics for excellent print quality, even for rotated bar codes

•

  Compatible with Intermec's printer family and supports 86XX printers in emulation mode

•

  Industrial design with enclosed label supply

•

  128K NVRAM for permanent storage of downloaded fonts, graphics and label formats

Communications

•

  Rate: 1,200 to 19,200 bps

•

  Flow Control: XON/XOFF, ready/busy

•

  Asynchronous: RS-232C, RS-422, RS-485

Fonts and Graphics

•

  21 resident bitmapped fonts (includes OCR-A and OCR-B)

•

  Outline font

•

  Supports user-defined fonts and graphics

Language

•

  IPL is an advanced printer programming language that includes many features not available in other bar code printers

•

  Advanced bar code algorithms handle all required encodation

•

  Error detection protocols verify secure data transmission

•

  Command errors and printer status are easily identified to your host

•

  Communicates in printable ASCII or control characters

•

  Independent character and field rotation

Connectivity

•

  Serial interface standard

• Microsoft Windows

•

  Intermec InterDriver standard Windows 3.x, 9x, NT 4.0/5.0

•

  Intermec ActiveX controls standard Windows 9x, NT 4.0/5.0

•

  PrintSet printer configuration utility Windows 3.x, 9x, NT 4.0/5.0

•

  NetPilot + Thin Wizard network configuration utility (with optional Ethernet) Windows 9x, Windows NT 4.0/5.0

Character Sets

•

  Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII

Power Supply

•

  100, 115, 200 and 230 VAC = 10%; 50 Hz to 60 Hz
