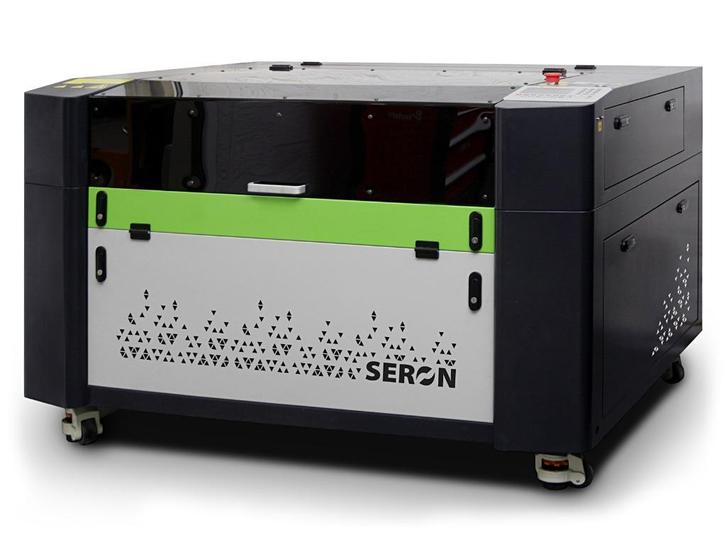

CO2 laser plotters are one of the most universal and versatile machines used in industry.
They are successfully used in almost every industry, from automotive, aviation, to advertising or paper.

Intuitive operation
Functional and easy to use controls.

Speed and precision
Innovative mechanical and optical solutions guarantee instant realizations of the highest quality.

Technical data
Interface
USB / Ethernet (option WiFi)
Available working areas (mm)
500×300, 950×600, 1300×900, 1600×1200, 1600×2000
Pass-through table
yes, it enables the processing of materials longer than the working area of the Y axis
Compressor
Yes
Extraction fan:
Yes
CAM software:
Yes, Polish / English version
Resonator cooling
Yes, chiller
Work area lighting
Yes
Air assist:
Yes
Lens:
silicon plus a coating of Selenium, Zinc Si + ZnSe, fi 20mm
Mirrors:
silicon SI
Table type
vacuum, lowered on ball screws, integrated knife table and honeycomb
Red point:
yes, transmitted by mirrors
Autofocus
Yes
Maximum item height
up to 300 mm
Positioning accuracy
0,02
Laser resonator
HV, RF
Power of the laser resonator
25W-200W
Working speed
up to 1500 mm/s
Supply power
230V
Additional options:
• rotary axis
• filter ventilation
• active Cam
• WiFi communication
