1550x2450 mm Digital Cutting Machine

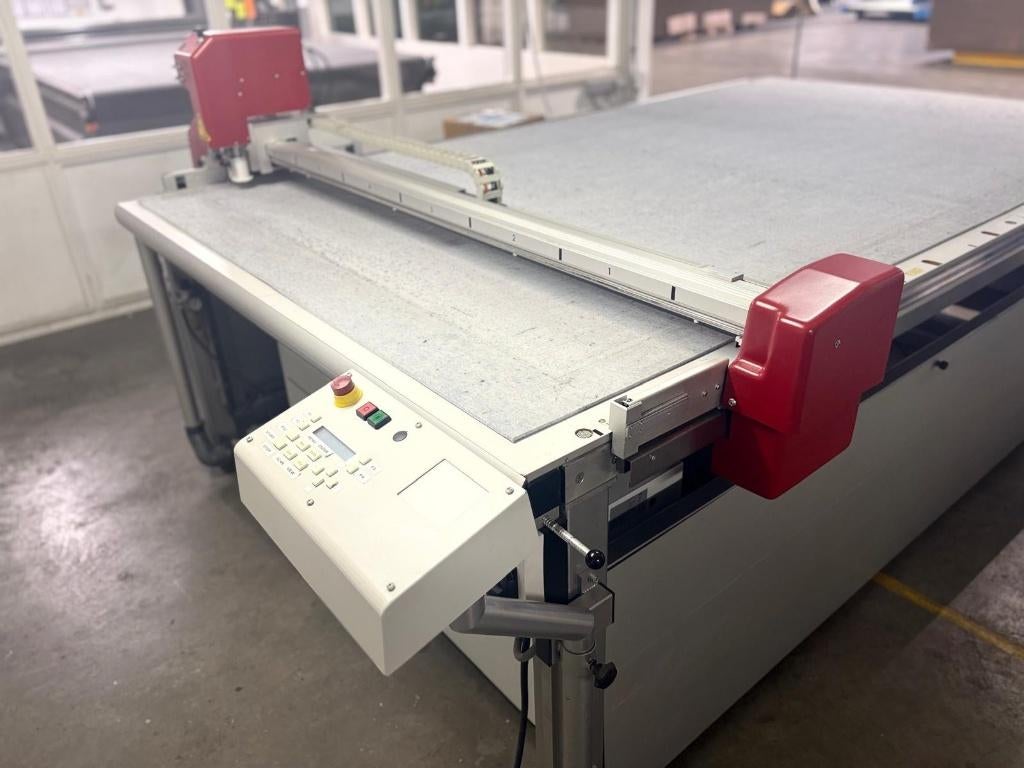

ARISTO ARISTOMAT SL 1625 Conveyor Universal Cutter Digital Cutting Systems

GERMAN TECHNOLOGY, FAST, PRECISE CUTTING, PRODUCTION AUTOMATION, INNOVATIVE & HIGH QUALITY
Table option from 100 cm to 800 cm.
Hundreds of Cutting, Milling, Scoring, Crushing, Marking, Pilyaj, Drawing Pens and Blades

Cardboard / Corrugated Cardboard Cuts, Advertising, Signage, Packaging, Textiles, Shoes, Gaskets, Sealing Products, Models, Stands, Decoration, Reflective Foil (Traffic), Display Product Cuts, Labels (Full, Half Cut), Industrial Sampling, Production Automation and Solution Systems

V Cutting, Textiles, Technical Textiles, Composite Materials, Leather, PVC Sheets and More

Gasket Cutting, Model, Cardboard Stand, Model Toy, Box Manufacturing

Model :SL 1625
Working Area (mm / inch) : 1600 x 2450 (63 x 96)
External Dimensions (mm / inch) : 2410 x 3365 x 1140 (95 x 132 x 45)

Technical Specifications

• Speed: 1.4 m/s (55 in/s) – Adjustable from the menu or software
• Acceleration Point: 1.1 G
• Material Thickness: Up to 35 mm maximum
• Static Accuracy: ± 0.02 mm/m (0.0008 in/40 in) @20°C
• Electric Control Mechanism: Digital servo motors
• Data Format: HPGL
• Processor Interface: Serial RS 232C/V.24; D-Sub, 25 pin
• Memory: 400 KB, Repeatable function
• Vacuum: Adjustable Matrix vacuum areas
• Power Supply: 230V, 50/60 Hz or 3 Phase Connection, 400V, 50Hz
• Operating System: Integrated console, functional keys and multi-line display

(English, German, French, Spanish, Italian)
Operating and Environmental Conditions

• Operating Temperature: +10°C ~ +30°C / 50°F ~ 86°F
• Ambient Temperature: -15°C ~ +45°C / 5°F ~ 113°F
• Humidity Rate: %40 - %80

Certificates

• CE Label
• Emergency Stop
• Light Barrier
• Automatic Shutdown

Optional Equipment

• Motorized feeding and collecting system for roll materials
• Material holding systems
• Compatible blades/tools – for different materials and applications
