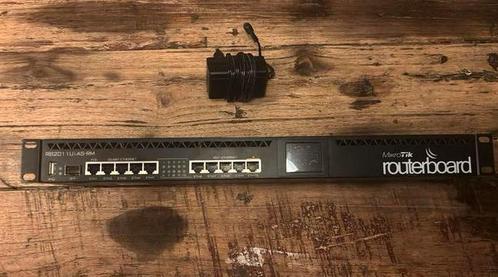

MikroTik Routerboard RB201 1Ui AS-RM

Specifications

Details
Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Switch chip model AR8327
Dimensions 443 x 92 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $119.00
Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 28 W
Max power consumption without attachments 6 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V
PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 510 mA
Max total out (A) 510 mA
Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
Fiber

Details
SFP DDMI Yes
SFP ports 1
Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2
Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
