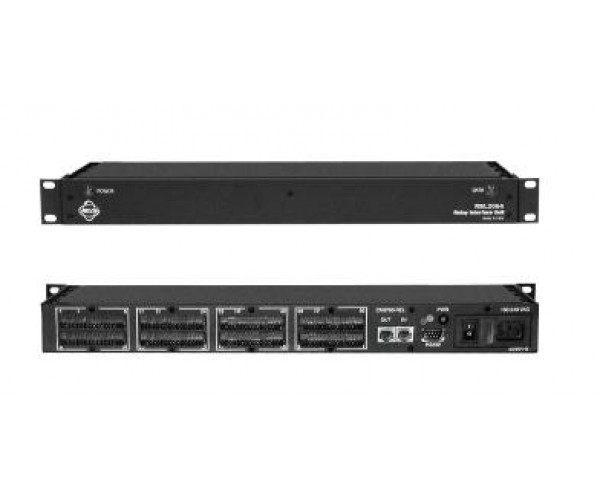

Controls up to 64 Relay Contact Outputs. The REL2064 relay interface unit connects directly to the System 6800 matrix switcher/controller and provides dry contacts for direct or automatic control of peripheral equipment. Each REL2064 provides up to 64 single-pole, single-throw (SPST) dry contact outputs.

Features

• 64 SPST Dry Contact Outputs
• Provides Direct or Automatic Control of Peripheral Equipment
• Connect to the CM6800 Series Matrix Switchers Using Pelco’s M Protocol
• Uses RS-485 Communication Interface
• Multiple Units May be Cascaded to Provide Multiple Relay Contact Points on a Single M Port Connection
• Relay Output Contacts May be Configured for Normally Open (N.O.) or Normally Closed (N.C.) Operation
• Relay Groups Can Retain Their Contact Position in the Event of a Power Failure or Front Panel Reset
• Powered by an Auto-Ranging Power Supply
