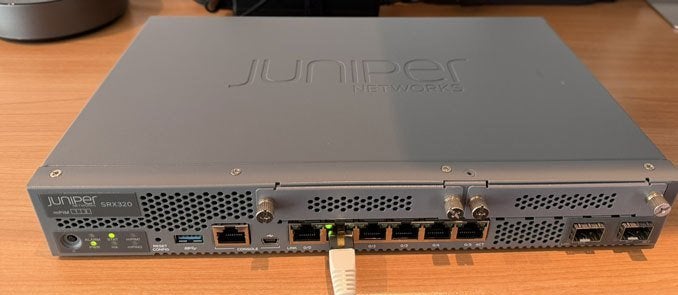

Juniper SRX320 service router/ firewall
SRX320-SYS-JB, in nieuwstaat, was mijn reserve firewall Firmware: 24.4R2.21 installed.
De SRX is teruggezet naar factory default.
Compleet met powersupply, cable en digitale handleiding.
SRX320 Firewall Description
The SRX320 Firewall consolidates security, routing, switching, and WAN interfaces for small distributed enterprises. With advanced threat mitigation capabilities, the services gateway provides cost-effective and secure connectivity across distributed enterprises.
With a desktop form-factor chassis, the SRX320 Firewall has six 1 G Ethernet ports, two 1 G SFP ports, 4 GB of DRAM memory, 8 GB of flash memory, and two Mini-Physical Interface Module (Mini-PIM) slots.
The SRX320 Firewall is available with or without Power over Ethernet (PoE) capability. In the PoE model. the six Ethernet ports are PoE capable.
The SRX320 Firewall runs the Junos operating system (Junos OS) and supports the following features:

• Firewall support with key features such as IPsec and VPN
• Intrusion Detection and Prevention (IDP)
• High availability
• QoS
• MPLS

Attribute Name
SRX320-SYS-JB
Full Product Name
SRX320 Firewall
OS Supported
Junos OS
Chassis

Attribute Name
SRX320-SYS-JB
Fixed/Modular Chassis?
Fixed
Form Factor
Desktop
Chassis Height
1.73 in / 4.3942 cm
Chassis Width
11.81 in / 29.99 cm
Chassis Depth
7.52 in / 19.1008 cm
Chassis Depth (With FRUs)
7.52 in / 19.1008 cm
Chassis Weight (As Shipped)
3.28 lb / 1.49 kg
Built-in Network Ports

Attribute Name
SRX320-SYS-JB
RJ-45 Port Count
6
SFP Port Count
2
SFP Port - MACsec Support?
Y
Other Port Configuration

Attribute Name
SRX320-SYS-JB
Console Port Count
1
Console Port Type
RJ-45
Console Port 2 Count
1
Console Port 2 Type
Mini USB Type B
USB Port Count
1
USB Port Type
USB 3.0 Type A
Power System

Attribute Name
SRX320-SYS-JB
PSU - Fixed?
Y
Power Adapter Type
AC to DC
AC PSU Average Heat Dissipation
157 BTU/h
System Average Power Consumption
46 W
System Maximum DC Input Rating
4.7 A
System Maximum Current Rating
1.3 A
Maximum Current Consumption
0.634 A
Maximum Inrush Current
11 A (220 VAC)
Grounding Cable Lug Type
TV14-6R
Grounding Cable Wire Gauge
14 AWG
Cooling System

Attribute Name
SRX320-SYS-JB
Airflow Direction
Front-to-back
AFO/AFI?
AFO
Fan Module Count
2
Fan Module - Fixed?
Y
Processor

Attribute Name
SRX320-SYS-JB
DRAM
4 GB
Storage

Attribute Name
SRX320-SYS-JB
Internal Storage Size
8 GB
Internal Storage Type
Flash
Routing/Switching Hardware

Attribute Name
SRX320-SYS-JB
Mini PIM Slots
2
Environmental Specifications

Attribute Name
SRX320-SYS-JB
Operating Temperature
32° through 104° F / 0° through 40° C
Storage Temperature
-4° through 158° F / -20° through 70° C
Operating Altitude
10000 ft (3040 m)
Relative Humidity, Noncondensing (Operating)
10% through 90%
Relative Humidity, Noncondensing (Nonoperating)
5% through 95%
Acoustic Noise Level (Max)
37 dB
Maintenance Clearance
24 in / 60.96 cm
Performance (General)

Attribute Name
SRX320-SYS-JB
Route Table Size (RIB) (IPv4) (Thousands)
256
Route Table Size (FIB) (IPv4) (Thousands)
256
Route Table Size (RIB) (IPv6) (Thousands)
256
Route Table Size (FIB) (IPv6) (Thousands)
256
Max Concurrent Sessions (IPv4/IPv6) (Thousands)
64
IPsec VPN Tunnels
256
Performance (Routing/Switching)

Attribute Name
SRX320-SYS-JB
MAC Addresses Per System (Thousands)
15
VLAN IDs Count
1000
Performance (Security)

Attribute Name
SRX320-SYS-JB
Firewall Throughput (1518B)
1900 Mbps
Firewall Throughput (64B)
200 Kpps
Firewall Throughput (IMIX)
600 Mbps
IPsec VPN Throughput (1400B)
0.336 Gbps
IPsec VPN Throughput (IMIX)
0.116 Gbps
Routing With Packet Mode (64B)
300 Kpps
Routing With Packet Mode (1518B)
1500 Mbps
Routing With Packet Mode (IMIX)
800 Mbps
NGFW Performance (CPS)
0.226 Gbps
Secure Web Access Firewall (CPS)
0.171 Gbps
AppID Sessions (Thousands)
16
Application Visibility And Control
0.5 Gbps
GRE Tunnels
256
IPS Sessions (Thousands)
16
Maximum SSL VPN Concurrent Users
50
Maximum Security Policies
1000
Maximum Security Zones
16
Maximum Virtual Routers
32
NAT Rules
1000
Recommended IPS
0.2 Gbps
URLF Sessions (Thousands)
16
