Hp 670026-001

Condition: Refurbished

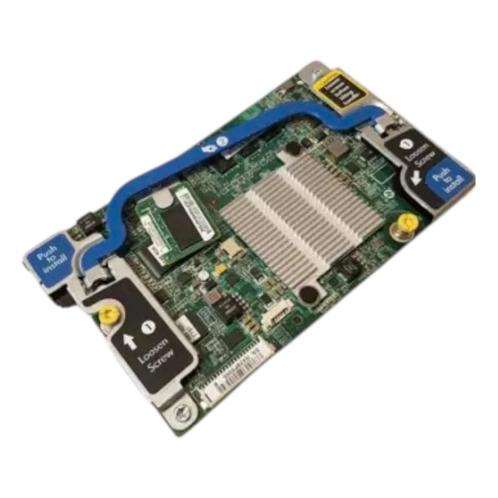

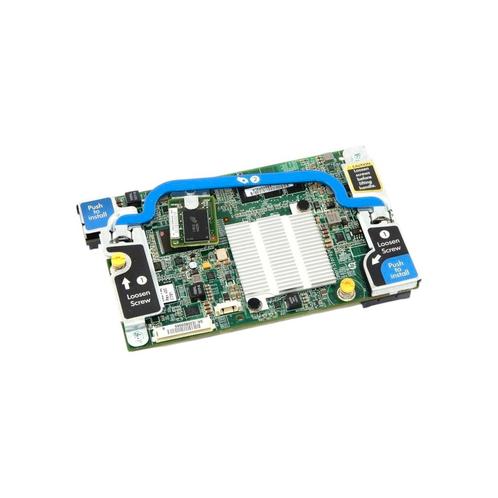

The HP 670026-001 is a Smart Array P220i RAID controller designed for use in HP ProLiant Gen8 blade servers. It offers a reliable and scalable storage solution by supporting RAID levels 0, 1, 1+0, 5, and 5+0 for SATA and SAS drives, providing both performance and redundancy for critical data in enterprise environments.

Features:

• Model: HP Smart Array P220i
• RAID Levels Supported: RAID 0 (striping) RAID 1 (mirroring) RAID 1+0 (striped mirror) RAID 5 (striping with parity) RAID 5+0 (striped RAID 5)
• Ports: 1 × Internal Mini-SAS (x4) port Connects to the server's internal backplane for drive connectivity
• Cache: 512MB FBWC (Flash-Backed Write Cache) for data protection in case of power loss

Whats in the Box?

• 670026-001

Specifications:

General Information

• PCI Card Form Factor: Plug-in Card

Inputs/Outputs

• Number of Ports: 1
• Expansion Card Computer Interface: Proprietary/Other
• I/O Expansion Card ports: Mini-SAS
