Condition: Refurbished

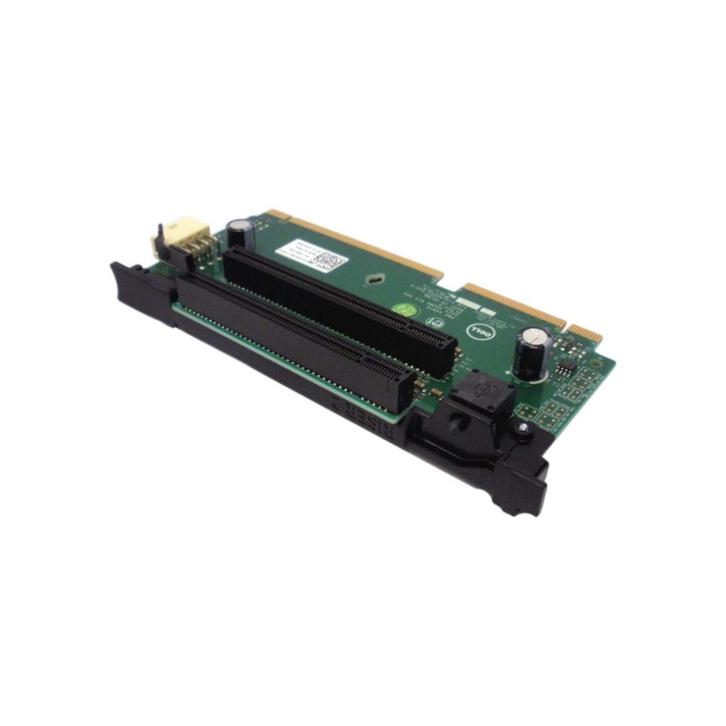

The Dell 392WG PCIe Riser Card is an internal PCI Express expansion riser board designed for the Dell PowerEdge R730 and Dell PowerEdge R730xd servers. It installs in the server’s Riser 2 (center) slot and provides additional PCIe expansion capability for add-in cards. This riser card expands the server’s hardware capabilities by adding two PCI Express expansion slots, allowing installation of high-performance add-in cards such as network adapters, RAID controllers, storage HBAs, or GPU accelerators. It connects directly to the motherboard through a dedicated riser connector and distributes PCIe lanes to the expansion slots

Features:

• Type: PCIe riser / expansion card Interface: PCI Express Gen3
• Expansion slots: 1 × PCIe x16 1 × PCIe x8 (physical x16)
• Form factor support: Full-height / full-length cards (depending on chassis configuration)
• Server compatibility: PowerEdge R730 and R730xd

Whats in the Box?

• 392WG

Specifications:

General Information

• PCI Card Form Factor: Plug-in Card

Inputs/Outputs

• Number of Ports: 2
• Expansion Card Computer Interface: PCIe
• I/O Expansion Card ports: 0
