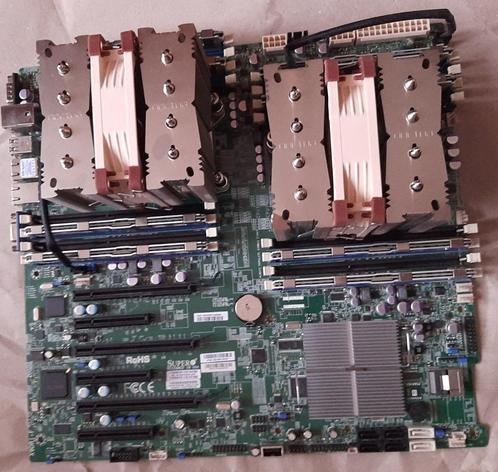

Supermicro X9DRi-F - 2x Xeon E5-2660/v2 - 20c/40t - 256GB

1. Supermicro X9DRi-F = €90 --> online waarde: €75-€110

2. 2x Intel Xeon E5-2660/v2 (LGA 2011) = 2 x €25 = €50 --> online waarde: €40-€80 (2 stuks)

3. RAM 256GB - HMT84GL7AMR4C-RD - SK Hynix 8 x 32GB DDR3-1866 = 8 x €35 = €280 --> online waarde: €240-€360 (8 stuks)

4. koelers: 2 x Noctua NH-D9L = 2 x €40 = €80 --> online waarde: €120 (2 stuks)


Set waarde: €90 + €50 + €280 + €80 = €500


Supermicro X9DRi-F Motherboard Overview The Supermicro X9DRi-F is a dual-socket server motherboard designed for enterprise and high-performance computing environments. It supports Intel Xeon E5-2600 and E5-2600 v2 series processors using the Socket R (LGA 2011) platform, making it suitable for demanding server and workstation applications.
Key Specifications

• CPU Support:
• Dual Socket R (LGA 2011)
• Intel Xeon E5-2600 and E5-2600 v2 family (up to two CPUs)

• Chipset:
• Intel C602

• Memory:
• Up to 1TB ECC DDR3 (1866/1600/1333/1066 MHz)
• 16 DIMM slots
• Supports ECC Registered (RDIMM), Load Reduced (LRDIMM), and Unbuffered (UDIMM) DDR3 memory

• Expansion Slots:
• 3 x PCIe 3.0 x16
• 3 x PCIe 3.0 x8
• Note: PCIe slots 1, 2, and 3 are controlled by CPU1, while slots 4, 5, and 6 are controlled by CPU2. Both CPUs must be installed to use all slots.

• Storage:
• 8 x SATA2 (3 Gbps)
• 2 x SATA3 (6 Gbps)
• 4 x SCU ports (for additional storage connectivity)
• No native SAS or NVMe/M.2 support

• Networking:
• Dual Intel i350 Gigabit Ethernet ports
• Dedicated IPMI 2.0 management LAN port

• Other Features:
• Integrated IPMI 2.0 with KVM-over-IP for remote management
• Onboard Matrox G200eW graphics with VGA output
• 11 x USB 2.0 ports (4 rear, 6 via headers, 1 internal Type A)
• E-ATX form factor (12" x 13")

• PCIe Bifurcation:
• The board supports PCIe bifurcation, which is useful for multi-NVMe adapter cards, but may require a specific or beta BIOS version for full functionality, especially for booting from NVMe devices.

• No Native NVMe or M.2:
• There is no onboard NVMe or M.2 slot; NVMe SSDs require a PCIe adapter card.
