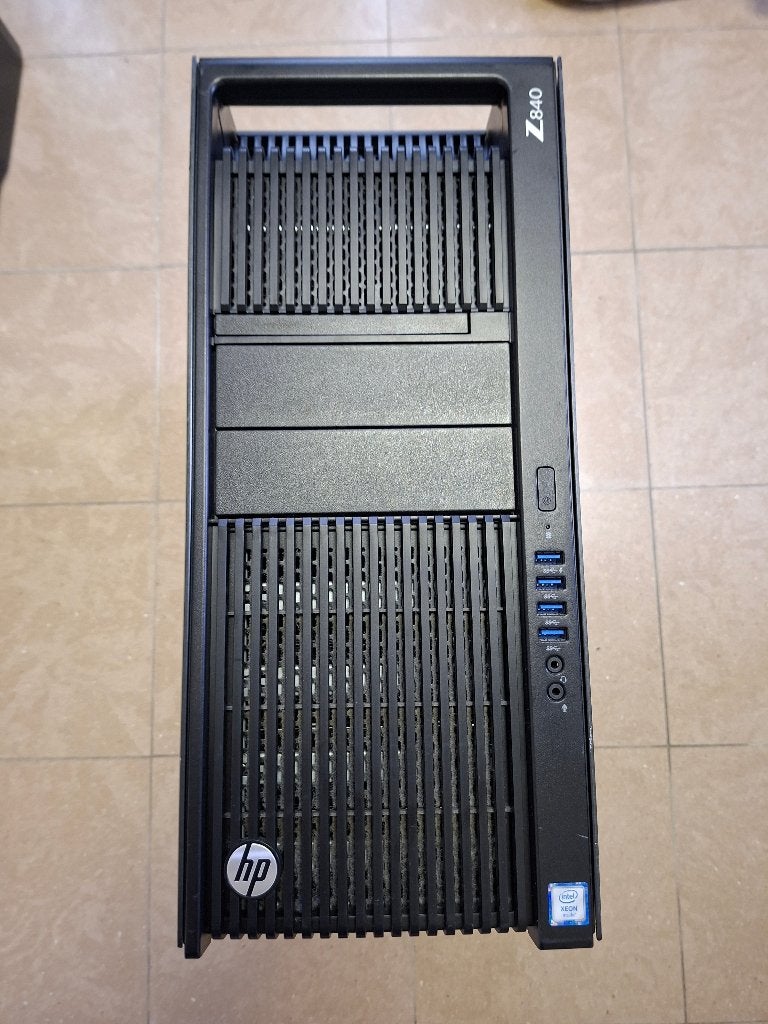

HP Z840 WORKSTATION – 24 CORES, 32GB ECC, QUADRO P620, 480GB SSD + 3TB SAS, WINDOWS 11 PRO

Powerful dual-Xeon workstation, fully tested and ready to use. More identical units available – just ask.

SPECIFICATION (THIS MACHINE)
- CPU: 2x Intel Xeon E5-2680 v3 – 24 cores / 48 threads in total, 2.5 GHz (3.3 GHz turbo)
- RAM: 32GB DDR4-2133 Registered ECC (2x 16GB) – 14 of 16 slots still free
- Graphics: NVIDIA Quadro P620 2GB (4x mini-DisplayPort)
- Boot drive: 480GB Micron 5200 enterprise SATA SSD with Windows 11 Pro, activated
- Storage: 3x HP 1TB SAS 7200rpm 3.5" enterprise hard drives (3TB), formatted and ready to use
- Drive bays: all 4 connected to the SAS controller – every bay takes SAS OR SATA drives
- Power supply: 1125W
- Network: 2x Intel Gigabit Ethernet
- Expansion: 7 PCIe slots
- Side panel lock – both keys included

PLATFORM – HP Z840 WORKSTATION (FROM HP'S SERVICE GUIDE, CHECKED ON THIS MACHINE)
- Processors: dual LGA2011-v3 sockets, Intel Xeon E5-2600 v3 and v4 families
- Chipset: Intel C612
- Memory: 16 DDR4 DIMM slots (8 per CPU), registered ECC or LRDIMM – up to 2 TB with LRDIMMs. Memory runs at 2133 MT/s with the fitted v3 CPUs (2400 MT/s with v4 CPUs)
- Storage controller: integrated LSI SAS 2308 (8 ports, SAS/SATA 6 Gb/s, RAID 0/1/1E/10), plus Intel SATA 6 Gb/s
- Internal bays: 4x 3.5" drive bays (tool-less carriers)
- External bays: 2x 5.25" bays + 1 slim optical bay (empty)
- Expansion slots (7): 3x PCIe 3.0 x16, 2x PCIe 3.0 x8, 1x PCIe 3.0 x4 (open-ended), 1x PCIe 2.0 x1 – room for several full-size graphics cards
- Power supply: 1125W
- Front I/O: 4x USB 3.0 (one charging port), headset combo jack, microphone jack
- Rear I/O: 4x USB 3.0, 2x USB 2.0, serial port, 2x PS/2, 2x Gigabit Ethernet (one with Intel AMT), audio line-in / line-out
- Networking: dual Intel I218-LM + I210 Gigabit controllers
- Chassis: tower, 44.5 x 20.3 x 52.6 cm (H x W x D)

MEMORY FITTED
2x 16GB DDR4-2133 ECC Registered (RDIMM), dual-rank (2Rx4), PC4-2133P-R, 1.2V – one module per CPU:
- 1x SK hynix HMA42GR7MFR4N-TF (HP-branded, HP part 752369-081) – pictured, both sides
- 1x Samsung M393A2G40DB0-CPB
Same specification, fully compatible.

DRIVES FITTED
- SSD: Micron 5200 480GB enterprise SATA SSD – SMART health PASSED, 100% of its rated life remaining, zero errors
- Hard drives: 3x HP MB1000JVYZL 1TB SAS 7200rpm 3.5" – health OK, zero bad sectors, full-surface self-test passed on all three

SAS AND SATA COMPATIBLE
The Z840 has an 8-port LSI SAS controller built into the motherboard, and all 4 drive bays are cabled to it. That controller works with both SAS and SATA drives, so every bay accepts SAS server drives as well as ordinary SATA hard drives and SSDs – mix and match as you like (the SSD in this machine is SATA, the hard drives are SAS, all running side by side). There are also separate Intel SATA controllers on the board.

ROOM FOR 4 MORE DRIVES
All 4 internal 3.5" bays are in use (3 SAS drives + the SSD), but only 4 of the 8 SAS ports are used. The other 4 ports are free, on a second mini-SAS (SFF-8087) connector on the motherboard. To add up to 4 more drives:
- Inside the case: fit a drive cage in the two 5.25" front bays – a "3-in-2" cage gives three more 3.5" drives, or a 4x 2.5" cage takes four 2.5" SSDs/drives. Connect it to the free connector with an SFF-8087 to 4x SATA breakout cable (about 10-15 euro). Choose a cage rated for SAS/SATA if you want to use SAS drives. Power comes from the PSU.
- Outside the case: an SFF-8087 to SFF-8088 slot bracket (about 15 euro) brings the port out the back for an external SAS drive enclosure.

TESTED
Checked on this machine before listing (screenshots in the photos):
- 10 minutes at 100% on all 48 threads plus a memory stress test – passed, zero failures
- Zero ECC memory errors
- CPU temperatures max 63 °C under full load – the cooling is excellent and it stays quiet
- All CPUs, memory and the SAS controller detected correctly
- All 3 SAS hard drives: health OK, zero bad sectors, zero errors, full-surface self-test completed with no errors
- SSD: health PASSED, 100% life remaining, zero errors

WINDOWS 11 – PLEASE READ
Windows 11 Pro is installed and activated with the genuine OEM Pro licence stored in the BIOS (Windows Pro licence sticker on the rear).
Honest note: the Xeon E5 v3 CPU is not on Microsoft's official Windows 11 list, so it was installed with the hardware check skipped. It runs normally and security updates install as usual (verified September 2026). This Windows 11 version (25H2) receives security updates until October 2027; newer versions after that need a manual upgrade because Microsoft does not offer them automatically on this CPU. Many buyers of this machine use Linux or Proxmox instead – it is also an excellent home server.

GOOD FOR
Virtualisation (Proxmox, VMware, Hyper-V – VT-x/VT-d enabled), home server / NAS, CAD, rendering, video work, software development, running many containers.

TIP FOR MORE SPEED
Each CPU currently has one memory module. Adding modules in matched sets (4 per CPU) unlocks full quad-channel memory bandwidth. Compatible DDR4 ECC RDIMMs are widely available.

CONDITION AND COLLECTION
- Used, fully working and tested. Normal signs of use: some light scuffs and marks on the side panels – see photos.
- Collection in Overpelt (Belgium) – it is a large, heavy tower. You are welcome to see it running before you pay.
- Private sale, no warranty or returns. Everything is as described and tested above.
- Questions? Just ask – happy to run a specific test for you.
