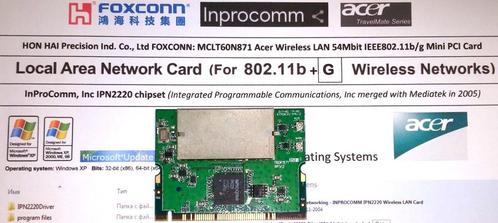

Inprocomm IP2220 T60N871 Foxconn 54g Mini PCI WiFi Card Acer

HON HAI FOXCONN T60N871 FCC ID MCLT60N871 Inprocomm IPN2220 RF2959 Acer Aspire TravelMate 1754F-T60N871 Wireless Netwerkkaart Network Card mPCI WLAN IEEE802.11 b/g 54Mbps- 108Mbps Mini PCI Wireless Wifi WLan Card

-Prijs € 5,95 + € 4,95 verzendbijdrage DHL parcel track & trace (levering op DHL parcel afhaalpunt (aanbevolen) of DHL thuisbezorging)

-Hon HAI Foxconn netwerkkaarten met Inprocomm Inc chipset, een legacy Retro chip producent 2004-2006 die in 2006 is opgenomen MediaTek inc Semiconductors

-Netwerkkaarten modellen van HON HAI FOXCONN FCC ID: MCLT60N871 model: FOXCONN T60N871 origineel toegepast in Acer TravelMate en Acer Aspire notebooks. FCC ID: MCLT60N871 is ook uitgebracht met een Broadcomm chipset

-Voorzien van Inprocomm inc IPN2220 Chip - IEEE 802.11 Turbo G solution !

-Interface 32-bit Mini PCI (Retro), type IIIB, 3.3V only PCI voor Legacy Retro Laptop systemen (Dit is geen PCI-E/PCI-Express Mini Card)

-Ondersteund Wireless 802.11g 54Mbps at 2.4ghz en voorgaande protocollen Wireless IEEE 802.11b. en lager

-Met 54 Mbps tot 5 x sneller dan dan 802.11B modus (11Mbps) en ondersteuning voor snelheden / speeds up to 108Mbps in Turbo mode for 11a and 11g clients.

-Super G (108Mbps) is a proprietary method to increase the throughput of an IEEE 802.11g (Wi-Fi) wireless LAN.[1] Atheros uses frame-bursting, compression, and channel bonding technology to improve performance.
The throughput transmission speed limit when using Super G is claimed to be up to 40 Mbit/s-60 Mbit/s at a 108 Mbit/s signaling rate, which is achieved through the bonding of two 54 Mbit/s 802.11g channels.

-Wireless G heeft een betere stabiliteit en voorzien van de noodzakeljke beveiliging van WEP 64-bit / 128-bit versleuteling en WPA (WiFi Protected Access) beveiliging-standaarden met 256-bit encryptie

-Inprocomm IP2220 RF2959 het heeft driver update via de Microsoft Update Catalogus: voor Microsoft XP Legacy en lager gezien Inprocomm zijn activiteiten in 2006 na de overname heeft gestaakt zijn er geen nieuwe (offciële) drivers ontwikkeld.

-Windows: PCIVEN_17FE&DEV_2220&SUBSYS_03051468 for HON HAI Precision Ind. 802.11b/g MiniPCI Module MCLT60N871, MCLT60N87100 and Foxconn T60N871 for ?Acer T60N871.03

-Zo goed als nieuwe systeem-onderdelen,niet recent gebruikt, door professional uitgebouwd door derden en onderdeel van de voorraad geweest Levering OEM Stijl (Original Equipment Manuafacturer) voor systeembouwers.

-Bezorging vanaf 1 werkdag / Delivery with tracking link within 24u~1 working day (Netherlands) Deze zending wordt geschikt gemaakt voor buszending met track & trace.

-3 maanden niet goed geld terug garantie (DOA ) Dead on Arrival

-Betaal veilig met PayPal is accepted, de betalingoptie is aanwezig met aankoopbescherming.

Onderdeelnummer/ partnumbers


T60N871.03/42001176-00 / 1754F-T60N871

BROADCOM MCLT60N871 1754F-T60N871

BROADCOM MCLT60N871 1754F-T60N871z

Acer 1754F-T60N871

Acer T60N871.01 0445009-01

Acer T60N871.03 42001176-00

Medion MD95500 RIM2000

-------------------------------------------
HON HAI Prescision Industries.co LTD parent company FOXCONN /

Inprocomm Inc. Integrated Programmable Communications, Inc. 2004-2006 (merged with MediaTek)

Foxconn is een merknaam van de Taiwanese fabrikant Hon Hai Precision Industry Co. Foxconn (Taiwan) is de grootste fabrikant van computeronderdelen wereldwijd met een aandelenwaarde van 45 miljard. Hon Hai Precision Industry Co produceert Uiteenlopend computercomponenten en systemen van Van Apple Mac, IPhones tot onderdelen van Dell computers e.a, Sony en Nokia.

Beschrijving fabrikant Chipset

INPROCOMM inc IPN2220 Chip - IEEE 802.11 Turbo G solution !

IPN2220 is INPROCOMM's another addition of AirConnTM family of wireless LAN solutions – an IEEE 802.11g low cost, high-performance baseband-MAC (BB-MAC) IC with feature-rich security functions integrated into both hardware and software for optimal system performance.

The IPN2220 features include INPROCOMM's novel BB architecture and algorithm design, which is designed for severe multi-path fading and narrow-band interference environments, special channel estimation and phase-timing tracking, analog-to-digital (ADC) and digital-to-analog (DAC) converters, and an automatic gain control (AGC) servo loop to control the radio AGC.

The MAC supports Enhanced Distributed Channel Access (EDCA) and HCF Controlled Channel Access (HCCA) and is a hardwired design, which minimizes die size and current consumption relative to CPU-based solutions. Additionally, multicast functions and queue management are enhanced in this product beyond the IEEE standard to serve applications requiring a high-level of quality-of-service (QoS) as well as public wireless LAN services.

The IPN2220 has a fully integrated BB and MAC and supports a feature-rich set of security functions that include: 64/128/152-bit Wired Equivalent Privacy (WEP), Temporal Key Integrity Protocol (TKIP), Wi-Fi TM Protected Access (WPA), Cisco Compatible Extensions (CCX), and Advanced Encryption Standard (AES-CCMP). It's "Turbo" function can improve 35% of performance. IPN2220 BB-MAC has passed WPA and Microsoft Windows Hardware Quality Labs (WHQL) certification.

The production-ready IC has been designed to work with several radios and power amplifiers (PAs) from industry-leading IC manufacturers, thereby meeting customers requirements for best-in-class performance versus cost. The IPN2220 supports three host interfaces – Cardbus, mini-PCI, and PCI, and is a highly integrated, high performance, low power ASIC housed in a TFBGA-160 pin package. INPROCOMM understands the need for smart power management and has integrated various features that minimize the total system power consumption.

bron / source: InproComm Taiwan


Specificaties (bron: InproComm Taiwan Archived old Website Internet Archive)

Package Contents model: FOXCONN T60N871 (Inprocomm) Mini PCI type III Card Wireless Adapter

Partnumbers

802.11b/g MiniPCI Module.

Interface: Mini PCI / MiniPCI 3.3V 32-bit

Antenna 2 Hirose U.FL RF connectors

Chipset: IPN2220 (Inprocomm)

WI1 chip1: RF2959

Security (INPROCOMM IP2220)

WEP 64/128/152-bit Wired Equivalent Privacy (WEP),

Temporal Key Integrity Protocol (TKIP) 802.1X (WPA compliant in Sw)

Wi-Fi TM Protected Access (WPA)(WPA™-Personal),

Cisco Compatible Extensions (CCX) IPN2220 has passed CISCO CCX version2 certification

Advanced Encryption Standard (AES-CCMP) (latest TGi draft compliant)

802.11e compliant QoS:

-EDCA
-Contention-free burst
-Block-Ack
-Multicasting support

Operating system support

-Client NDIS drivers for Windows 98SE/Me/2000/XP

-AP drivers for Linux and embedded Linux (kernel v.2.4)

-Compact API modules for embedded processors/OS

Connectivity: Wi-Fi CERTIFIED™ b / Wi-Fi CERTIFIED™ g

Connectivity: 2.4 GHz Spectrum Capabilities

Date First Available 2004 ~ more revisions

Wireless Data Rates 802.11g 54MBps, 802.11g+ (Turbo G+) 108Mbps of 802.11b 11Mbps

On-chip AGC, RSSI, RX noise floor and signal quality indicators

Patent-pending interference suppression mechanism against Bluetooth, microwave, cordless phones, etc

Proprietary equalizer for multi-path fading and Doppler effect

Special timing-phase tracking design to deal with phase noise

Smart antenna switch

Supports 9us short-slot time for maximum throughput

Automatic rate selection enables maximum throughput while minimizing power consumption

Supports Maxim, RFMD, and several other RF solutions

Tx auto-power level control

Supports IEEE 802.11 Task Groups: b/g/e/i

PCI, MiniPCI, and CardBus interfaces with Bus Master DMA

Low voltage operation: 1.8V for core, 3.3V for I/O and analog

Dedicated power saving control:

-TX, RX, listen, idle


Netwerkkaart is gebruikt in de onderstaande computersystemen


Acer T60NB71 19.2008.51 A MCLT60N871

Acer Aspire 1360

Acer Aspire 1361

Acer Aspire 1362

Acer Aspire 1363

Acer Aspire 1400 140

Acer Aspire 1802

Acer Aspire 1520

Acer Aspire 1670

Acer Aspire 1671

Acer Aspire 1672

Acer Aspire 1673

Acer Travelmate 2300

Acer TravelMate 2700 Acer TravelMate 2700 WiFi Wireless Card T60N871.03 P/N: T60N871.03

Acer TravelMate 4500

Packard Bell EasyNote A5560

Acer 2200 2700 wifi card 802.11B/g T60N871.01

Acer Aspire 1320

Acer Aspire 1360 1360LC

Acer Aspire 1362 1362LC LCI 1362LM 1362LMI 1362WLC 1362WLCI

Acer Aspire 1362 WLM 1362WLMI 1363LC 1363LCI 1363LMI

Acer Aspire 1363 WLCI 1363WLM 1363WLMI 1365LCI 1365LMI

Acer Aspire 1500:1500 1500LCE 1500LCI 1500LMI

Acer Aspire 1501:1501LC 1501LCE 1501LCI 1501LMI

Acer Aspire 1502 1502LCE 1502LM 1502LMI

Acer Aspire 1520:1520 1520LMI 1521 1521LCI 1521LMI

Acer Aspire 1522 WLMI 1523 1523LMI 1523WLM 1523WLMI Acer Aspire 1522LC 1522LMI 1522WLM

Acer Aspire 1524 1524LMI 1524WLM 1524WLMI

Acer Aspire 1610:1610 1610LM 1612 1612LM 1612LMI 1613 1613LC 1613LM 1613LMI

Acer Aspire 1620:1620 1620 1620LC 1620LMI 1621 1621LC 1621LM 1621LMI 1622 1622LC

Acer Aspire 1622LM 1622LMI 1622WLM 1622WLMI

Acer Aspire 1623 1623LM 1623LMI 1624 1624LM 1624LMI 1624WLM

Acer Aspire 1660 1661LM 1661LMI 1661 1661WLC 1661WLCI 1661WLM 1661WLMI 1662

Acer Aspire 1662LC 1662LM 1662LMI 1662WLM 1662WLMI

Acer Aspire 1663 1663LM 1663LMI 1663WLM 1663WLMI

Acer Aspire 1664 1664LM 1664LMI 1664WLCI 1664WLM 1664WLMI

Acer Aspire 3010

Acer Aspire 5010 5012 5014


Acer Extensa 2000

Acer Extensa 2001LC

Acer Extensa 2500

Acer Extensa 2501LC

Acer Extensa 2501LM


Acer Travelmate 240

Acer TravelMate 242 242LC 242LCI 242LM 42LMI 242X 242XC 242XM 242XVI 242FX

Acer TravelMate 243 243LC 243LCH 243X 243XH 243XI

Acer TravelMate 244 244LC 244LC-XPP 244LCE 244LCI 244X (MS2138)s

Acer Travelmate 250 250E 250ELC 250ELCI

Acer Travelmate 250 250LC 250LCI 250PE 250PEXC

Acer Travelmate 252 252ELC 252ELCI 252PIXCI 253 253LC 254 254ELCI

Acer Travelmate 280

Acer travelmate 2000:2000 2001 2001FX 2001LC 2001LCE 2001LCI 2001LCM 2
