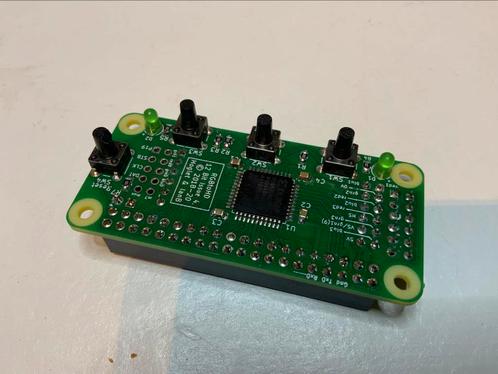

RGBtoHDMI Digital Board voor retrocomputer op HDMI

Met dit bord kun je een retro computer met haarscherp beeld aansluiten op een HDMI scherm.

Vereist nog een Raspberry Zero

Zoek op ‘RgbToHdmi hoglet67’.

12 Bit (Issue 4) version of RGBtoHDMI
“The RGBtoHDMI Video Interface Board converts the RGB video signal from vintage computers like the IBM PC (MDA/CGA/EGA) or Apple II to an HDMI signal compatible with most modern TVs/Monitors. The board connects to a Raspberry Pi Zero, 3B, or 4 (not included) running custom firmware and is able to correctly sample each of the supported video modes to give a pixel-perfect rendition. The HDMI output is locked to the input so there are no frame drops, repeats or tears and it also has low lag of around 4 milliseconds.”

Voor eigen gebruik gemaakt, maar aangezien printplaat alleen per 5 besteld kon worden heb ik nog wat extra gemaakt.

Ondersteunde computers zie onder

Vaste prijs €35




BBC CPLD with digital interface:

(BBC) Acorn/Atom TTL
(BBC) Acorn/BBC Master
(BBC) Acorn/BBC Micro
(BBC) Acorn/BBC NuLA 12bpp Mode7
(BBC) Acorn/BBC NuLA 3bpp Mode7
(BBC) Acorn/Communicator
(BBC) Acorn/Electron
(BBC) Acorn/System Teletext
(BBC) Amstrad/Amstrad CPC PLUS
(BBC) Apple/Apple II TTL
(BBC) Apple/Apple IIc TTL
(BBC) Apple/Apple IIe TTL
(BBC) Camputers + Oric + Sharp/Camputers Lynx
(BBC) Camputers + Oric + Sharp/Oric
(BBC) Camputers + Oric + Sharp/Sharp MZ-700
(BBC) Colour Genie + ABC 80 + RML/RML 480Z
(BBC) Commodore/Amiga
(BBC) Sinclair/Sinclair QL
(BBC) Sinclair/ZX80 TTL
(BBC) Test/Colour Test
RGB CPLD with digital interface:

(RGB) Acorn/Atom VGA
(RGB) Acorn/Atom TTL
(RGB) Acorn/Electron
(RGB) Amstrad/Amstrad CPC PLUS
(RGB) Apple/Apple IIGS
(RGB) Apple/Apple II TTL
(RGB) Apple/Apple IIc TTL
(RGB) Apple/Apple IIe TTL
(RGB) Apple/Apple IIe Taxan XRGB
(RGB) Apple/Apple Lisa TTL
(RGB) Apple/Mac 128-512-Plus TTL
(RGB) Apple/Mac Classic TTL
(RGB) Apple/Mac Radius FPD
(RGB) Apple/Mac SE-SE30 TTL
(RGB) Atari/Atari ST
(RGB) Atari/Atari STE
(RGB) Atari/Atari ST (No Blanking)
(RGB) Camputers + Oric + Sharp/Camputers Lynx
(RGB) Camputers + Oric + Sharp/Oric
(RGB) Camputers + Oric + Sharp/Sharp MZ-700
(RGB) Colour Genie + ABC 80 + RML/ABC80
(RGB) Colour Genie + ABC 80 + RML/Colour Genie
(RGB) Colour Genie + ABC 80 + RML/RML 480Z
(RGB) Commodore/Amiga
(RGB) Commodore/Amiga 2000
(RGB) Commodore/Amiga 3000
(RGB) Commodore/Amiga ECS (SW3-Set2=1280)
(RGB) Commodore/Amiga ECS 2000 (SW3-Set2=1280)
(RGB) Commodore/Amiga ECS 3000 (SW3-Set2=1280)
(RGB) Commodore/Commodore 128 CGA Brown
(RGB) Commodore/Commodore 128 RGBI Yellow
(RGB) Commodore/PET 2001-4000 9in Series
(RGB) Commodore/PET 4000 Series CRTC
(RGB) Commodore/PET 8000 Series CRTC
(RGB) Commodore/ Commodore 128 CGA Alt If Flashing Screen
(RGB) Commodore/ Commodore 128 RGBI Alt If Flashing Screen
(RGB) Enterprise + Sam Coupe/Enterprise
(RGB) Enterprise + Sam Coupe/Sam Coupe
(RGB) IBM PC Compatible/CGA (IBM New)
(RGB) IBM PC Compatible/CGA (IBM Old)
(RGB) IBM PC Compatible/CGA (SAMSUNG)
(RGB) IBM PC Compatible/EGA
(RGB) IBM PC Compatible/EGA Wonder 800+
(RGB) IBM PC Compatible/ET3000AX
(RGB) IBM PC Compatible/HEGA AUTO
(RGB) IBM PC Compatible/Hercules
(RGB) IBM PC Compatible/MDA
(RGB) IBM PC Compatible/NEC MDA
(RGB) IBM PC Compatible/NEC PC-16-01
(RGB) IBM PC Compatible/OTIVGA
(RGB) IBM PC Compatible/Olivetti Prodest-PC1
(RGB) IBM PC Compatible/PC-98
(RGB) IBM PC Compatible/VIDEO7 MDA
(RGB) IBM PC Compatible/Wyse WY-700
(RGB) Intellivision + Videopac C52/Intellivision
(RGB) Intellivision + Videopac C52/Videopac C52
(RGB) Sinclair/Sinclair QL
(RGB) Sinclair/Spectrum +2 (Grey)
(RGB) Sinclair/Spectrum 128
(RGB) Sinclair/ZX80 TTL
(RGB) Tandy/TRS 80 Model 3
(RGB) Tandy/TRS 80 Model 4
(RGB) Tandy/Tandy 1000 200 lines
(RGB) Tandy/Tandy 1000 225 lines
(RGB) UK101 + Laser 128 + Aquarius/Aquarius
(RGB) UK101 + Laser 128 + Aquarius/Laser 128
(RGB) Base Profiles/Mono 3BPP Base (Max 60Mhz)
(RGB) Base Profiles/RGB 12BPP Base (Max 16Mhz)
(RGB) Base Profiles/RGB 3BPP Base (Max 60Mhz)
(RGB) Base Profiles/RGB 6BPP Base (Max 30Mhz)
(RGB) Other/Meldas CNC9 Mono
(RGB) Other/Tektronix 571
(RGB) Other/Triumph-Adler PC-8
(RGB) Test/Colour Test
(RGB) Test/Multi Test
(RGB) Test/Test 12BPP-Composite
YUV CPLD with digital interface:

(YUV) Apple/Apple II TTL
(YUV) Apple/Apple IIc TTL
(YUV) Apple/Apple IIe TTL
(YUV) Commodore/PET 2001-4000 9in Series
(YUV) Sinclair/ZX80 TTL
(YUV) Tandy/TRS 80 Model 3
(YUV) Tandy/TRS 80 Model 4
(YUV) UK101 + Laser 128 + Aquarius/UK 101 TTL
(YUV) Base Profiles/Mono 6BPP Base (Max 30Mhz)
(YUV) Base Profiles/RGB 6BPP Base (Max 30Mhz)
(YUV) Test/Colour Test
