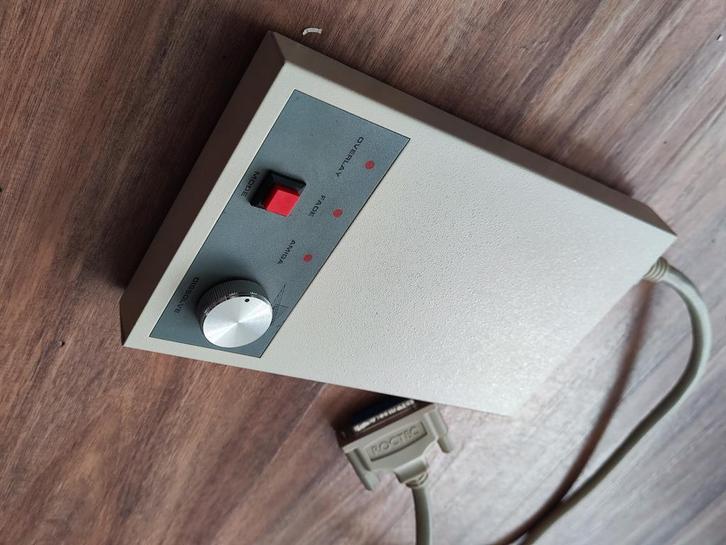

RocGen RG300CP Genlock (RocTec)

Year: 1991



SPECIAL FEATURES OF THE RG300C GENLOCK
Fully compatible with the complete line of Amiga Personal Computers:
Amiga 500,1000,1500,2000,2500, and Amiga 3000.
Fully accessible, user-friendly control panel.
Auto Video Pass-Thru: This allows the signal from the Amiga or external
video source to pass thru the RG300C to the monitor or recorder, even if
either the Amiga or external video source is powered down.
Internal Sync Generator: The RG300C generates its own internal tImmg
signals if it does not sense synchronisation from an external video source.
FADER / DISSOL VE Controls: This feature allows the RG300C to control
varying degrees of fade and dissolve between computer graphics and an
external video source. The RG300C is the most affordable Amiga genlock
to offer this feature


RocGen RG300CP Genlock (RocTec)
genlock composite input and output no RGB passthrough connector dissolve knob operation modes: overlay – colour zero is transparent, all others float above the live video backdrop fade – Amiga graphics is faded over the video image with the dissolve knob Amiga – shows the computer image only can take power from the Amiga or from an external power supply PAL and NTSC versions.
