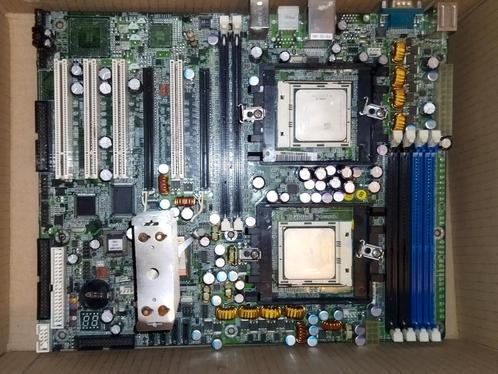

Tyan Tiger K8SSA S3870 server moederbord met 2× 2,6 GHz AMD

Tyan Tiger K8SSA S3870 server moederbord,
met twee × 2,6 GHz AMD Opteron processors.

Het moederbord is ontworpen voor AMD Opteron processors en maakt gebruik van de Socket 940.
Het ondersteunt DDR SDRAM geheugen.
Het bevat meerdere PCI-X slots en een AGP Pro slot voor uitbreidingskaarten.
Het is geschikt voor servertoepassingen die een hoge rekenkracht en geheugencapaciteit vereisen
.
Dual µPGA 940-pin ZIF sockets
 • Supports up to two AMD Opteron™ 200 series
 • processors (including dual core processors)
 • Integrated 128-bit DDR memory controller

Chipset
 • ServerWorks BCM5785 (HT-1000) core-logic
 • NS PC87417 Super I/O

Memory
 • 128-bit dual channel memory bus
 • Six 184-pin DDR DIMM sockets
 • (four from CPU 0 and two from CPU 1)
 • Supports up to 24GB of registered DDR memory
 • Supports ECC type memory modules
 • Supports DDR 266/333/400 DIMMs
 • Supports Single/Dual/Quad Rank mem. modules

Expansion Slots
 • One PCI-X 64-bit 100/133MHz slots
 • Four 32-bit 33MHz (5V) PCI v2.3 slots
 • One Tyan "TARO" SO-DIMM socket
 • Total of six usable slots

Back Panel I/O Ports
 • Stacked PS/2 mouse and keyboard ports
 • Stacked Two USB v2.0 ports
 • One 9-pin COM port
 • One 15-pin VGA port
 • Two side-by-side RJ-45 ports

Integrated I/O
 • One floppy connector for up to two drives
 • One IDE connector; four SATA ports
 • Four USB v2.0 ports (2 at rear, 2 via cable)
 • Two COM ports (1 at rear, 1 via cable)
 • Tyan 2 x 9 front-panel pin header
 • Tyan 2 x 6 pin header for front panel LAN LED
 • and ID LED/switch
 • Two 25-pin connector for TYAN IPMI SMDC (opt.)

System Management
 • Two SMSC EMC6D103 hardware monitoring IC
 • Six fan headers, four w/ 3+1-pin header, tacho-
 • meter monitoring, & smart FAN control (PWM)
 • Temperature and voltage monitoring
 • Watchdog timer support

Integrated Video Controller
 • XGI Volari™ Z7 (XG20)
 • 16MB frame buffer memory

Integrated ATA-100
 • One ATA Channel for up to two ATA-100 devices

Integrated SATA Controller
 • Supports SATA ports at 1.5Gb/s w/ NCQ
 • Supports RAID 0, 1, 10

Integrated LAN Controllers
 • Two Intel i82541PI GbE LAN controller
    - Intel 82541EI GbE LAN controller
    - Operating at 32bit/33MHz PCI bus

Optional Modules (SMDC/TSO Support)
 • M3291 , IPMI 2.0 Remote System Mgmt. card
    - Renesas H8S2167 BMC controller
    - BT, KCS, Logging support; IPMI-over-LAN
    - Remote Power on/off and reset

 • M7901/M7902, Ultra 320 SCSI TARO™ card
    - Adaptec AIC-7901/7902 single/dual-channel
     Ultra320 SCSI controller
    - Adaptec HostRAID 0, 1, 10 supported

 • M9000 SAS/SATA II TARO™ card
    - Adaptec AIC-9405/9410 SAS controller
    - Supports up to 4-port (M9000-5) and 8-port
     (M9000-10 ) SAS & SATA running at 3.0 Gb/s
    - Adaptec HostRAID 0, 1 & 10 supported

BIOS
 • AMI® BIOS on 8Mbit LPC Flash ROM
 • Serial Console Redirect
 • USB boot supported
 • ACPI supported
 • PnP, DMI2.0, WfM2.0 Power Management

Power
 • Onboard dual 4-phase VRM
 • EPS12V / SSI v3.51 (24 + 8) power connectors

Form Factor
 • ATX footprint (12" x 10.2"; 304.8mm x 259.1mm)

Regulatory
 • FCC DoC (Declaration of Conformity) certified
 • CE (Declaration of Conformity); BSMI (optional)
