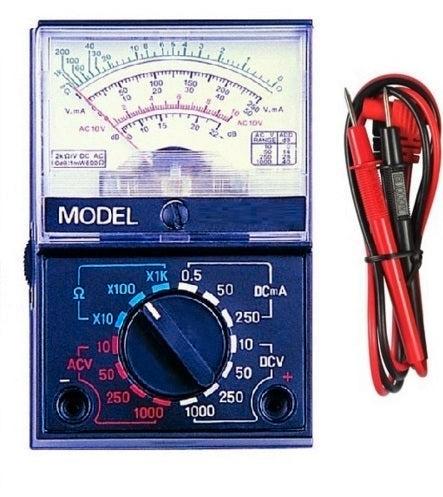

Compacte analoge multimeter

Analoge multimeter

Waarden:

• 0.1-0.5-2.5-10-50-250-1000v
• Accuracy at FSD : 3,(1000v;5)
• Sensitivity: 20k/v
• Extension: 25kV (with HV probe extra)

 AC VOLT

Waarden:

• 10-50-250-1000v
• Accuracy at FSD: 4;(1000v;5)
• Sensitivity: 9k/v
• Decibelmeter: —10to +22DdB
• 0dB = 1mw/600

DC CURRENT

Waarden:

• 50A(at 0.1VDC position), 2.5mA,25mA,0.25A,*10A
• Accuracy at FSD:3 (10A;5)
• Volt Drop: 250mV

WEERSTAND:

Waarden:

• 1 ~ 0.2 up to 1k, Midseale,at 20
• 10~1 up to 10k, Midseale,at 100
• 100 X 100 ~ 10 up to 100k ,Midseale, at 1k
• 1k~200 up to 2M,Midseale,at 20k
• 10k ~2k, up to 20M Midseale,at 200k
• Accuracy at FSD:3
• Iceo 150A~15Ma~150Ma
• hFE 0 ~ 1000 (with connector extra)

Gewicht: 280g
