Kenmerken
Conditie
Gebruikt
Beschrijving

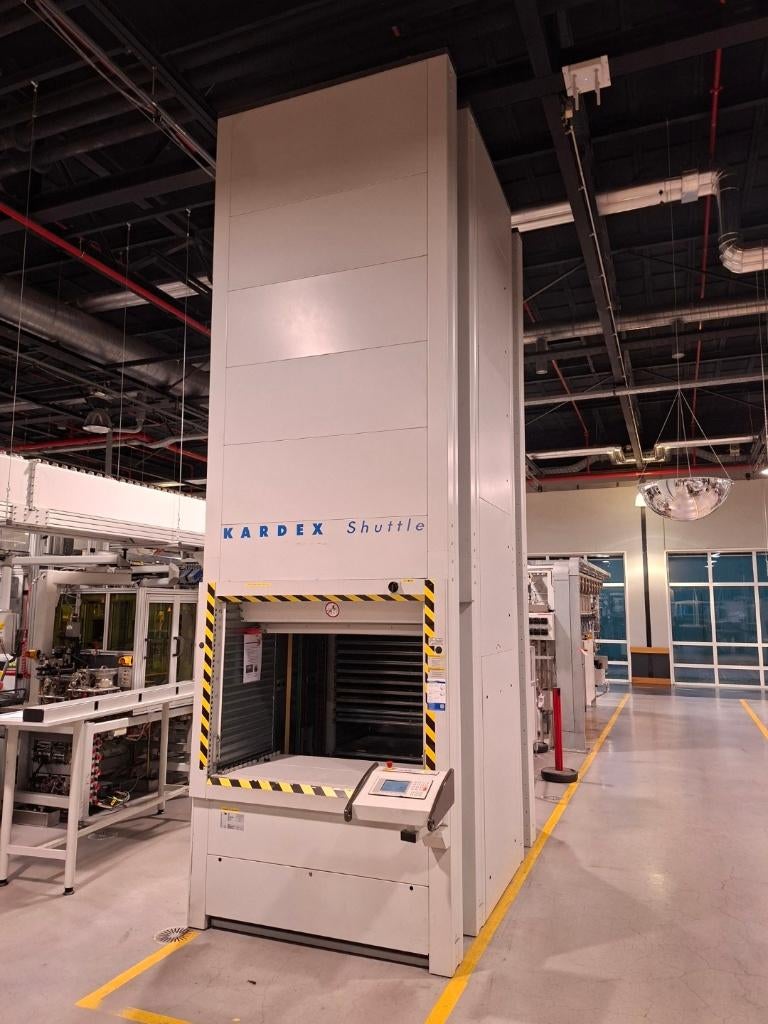

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP250
System Type : SHUTTLE-XP-250-1250x610
Control : C3000, with OP3000 OPGraphic color Touchscreen display
Serial No. : 08009493/001
Year of construction : 2008
Total Load : 2 x 33750 kg
Load per tray : 220 kg
Tray dimension : 1250 x 610 mm
Number of tray's : 18 pieces (more on request)
Dimensions Shuttle W x D x H : 1580 x 2312 x 5050 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.750 kg
- Maximum tray capacity : tray’s MEDIUM , 220 kg each , evenly distributed ,
more trays can be ordered.
- Tray dimensions : 1250 x 610 mm
- Machine dimensions : Wide x Depth x Height : 1580 x 2312 x 5050 mm
- Footprint of the system appx: 5,21 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening without sliding doors for quick loading and picking of goods
- Control C3000 with graphic color display OP 3000 Touchscreen
- LED anti-dazzle lighting above access point
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Roller tracks in access opening for transport trolley
- Transport trolley
Inclusief rollenbanen in de werkopening en Kardex transportkar
Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport , montage en garantie
Levertijd : uit voorraad
Machinehandel De Leeuw BV is één van de weinige bedrijven in Europa die handelt en op voorraad heeft van voornamelijk gebruikte Kardex Remstar VLM automatische Lift (Shuttle systemen) & roterende magazijnsystemen (paternoster systemen).
Zie onze website voor de actuele voorraad.
Wij monteren en/of demonteren deze systemen op een veilige manier met VCA gecertificeerde monteurs en dat doen we al meer dan 33 jaar.
We demonteren ook andere merken zoals : Hänel , Electrolux , Bertello , Megamat , Lista , Denocard
Machinehandel De Leeuw BV
Oordeelsestraat 7 – b
5111 PA Baarle-Nassau
The Netherlands
Tel: +31 (0)13 507 7466
GSM: +31 (0)6 30 51 67 49
Email : info @ deleeuw-machinehandel . nl
System Type : SHUTTLE-XP-250-1250x610
Control : C3000, with OP3000 OPGraphic color Touchscreen display
Serial No. : 08009493/001
Year of construction : 2008
Total Load : 2 x 33750 kg
Load per tray : 220 kg
Tray dimension : 1250 x 610 mm
Number of tray's : 18 pieces (more on request)
Dimensions Shuttle W x D x H : 1580 x 2312 x 5050 mm
(height Kardex is adjustable to available height)
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA
Deze aanbieding is geldig mits systeem is onverkocht
Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33.750 kg
- Maximum tray capacity : tray’s MEDIUM , 220 kg each , evenly distributed ,
more trays can be ordered.
- Tray dimensions : 1250 x 610 mm
- Machine dimensions : Wide x Depth x Height : 1580 x 2312 x 5050 mm
- Footprint of the system appx: 5,21 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening without sliding doors for quick loading and picking of goods
- Control C3000 with graphic color display OP 3000 Touchscreen
- LED anti-dazzle lighting above access point
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Roller tracks in access opening for transport trolley
- Transport trolley
Inclusief rollenbanen in de werkopening en Kardex transportkar
Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport , montage en garantie
Levertijd : uit voorraad
Machinehandel De Leeuw BV is één van de weinige bedrijven in Europa die handelt en op voorraad heeft van voornamelijk gebruikte Kardex Remstar VLM automatische Lift (Shuttle systemen) & roterende magazijnsystemen (paternoster systemen).
Zie onze website voor de actuele voorraad.
Wij monteren en/of demonteren deze systemen op een veilige manier met VCA gecertificeerde monteurs en dat doen we al meer dan 33 jaar.
We demonteren ook andere merken zoals : Hänel , Electrolux , Bertello , Megamat , Lista , Denocard
Machinehandel De Leeuw BV
Oordeelsestraat 7 – b
5111 PA Baarle-Nassau
The Netherlands
Tel: +31 (0)13 507 7466
GSM: +31 (0)6 30 51 67 49
Email : info @ deleeuw-machinehandel . nl
...
...
...
...
...
...
...
...
...
...
...
...
