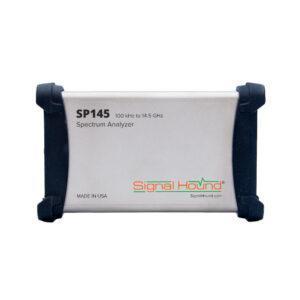

Signal Hound SP145 Spectrum Analyzer tot 14.5 GHz

Ultra-fast, ultra-portable RF analysis up to 14.5 GHz

The SP145 is a high-performance, 14.5 GHz real-time spectrum analyzer and monitoring receiver featuring sweep speeds up to 200 GHz/sec, 40 MHz streaming bandwidth, -160 dBm displayed noise average, and an internal GPS for enhanced field measurements.

At-a-glance specs:

• 100 kHz to 14.5 GHz frequency range
• Sweeps at 200 GHz/sec (at 70 kHz RBW)
• Calibrated Streaming I/Q: Up to 40 MHz of selectable I/Q streaming bandwidth
• Connects to a PC for analysis (Spike spectrum analysis application included) via USB-C
• Small form factor: 7.45 x 4.51 x 1.81 (189mm x 115mm x 46mm) 1.1 lbs.(0.5 kg)
• Extended temperature range option available (11.229 Euro ex.BTW)
• Compatible with Windows or Linux, x64_86 architecture

Nu uit voorraad leverbaar: prijs 10.349 Euro ex.BTW, 12.522 Euro incl.BTW inclusief UPS verzenden.
