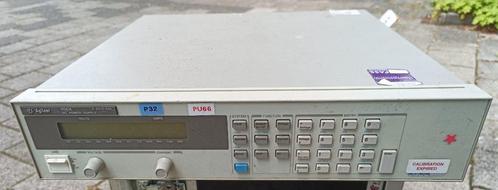

Agilent 6541A 8 V 20 A power supply

Agilent 6541A 8 V 20 A power supply

Output Ratings
Output Voltage: 0 to 8 V
Output Current: (40° C) 0 to 20 A
Maximum Current (50° C/55° C): 18 A/17 A
Programming Accuracy at 25°C ±5°C
Voltage 0.06% + 5 mV
Current 0.14% + 26 mA
Ripple & Noise from 20 Hz to 20 MHz
Voltage rms: 300 µV
Peak-to-Peak: 3 mV
Current rms: 10 mA
Description
Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 200 W, 6541A-6545A provide front panel and analog control of output voltage and current; fast, low-noise outputs; fan-speed control to minimize acoustic noise; and protection features to ensure DUT safety.

The Keysight 160W, no interface, single output 6541A is a reliable supply with clean output to ensure accurate measurements, and offers the right mix of performance and functionality for general purpose applications on the bench or in analog-controlled systems.

Speed and accuracy for test optimization
This reliable series of 200 W DC power supplies can be controlled either from the front panel or
via an analog programming voltage. When used in a test system, the fast up and down programming
helps decrease test time. Quickly reacting protection features, including fast crowbar, CV/CC mode
crossover and over-voltage protection help protect your valuable assemblies from damage. The
linear topology produces very low ripple and noise, which allows you to make extremely accurate
measurements of the devices which you are testing.
Lab bench use is enhanced by the fan speed control, which helps to minimize acoustic noise.
