Kenmerken

ConditieGebruikt
TypeOverige meters

Beschrijving


  • Er zit een 12V loodaccu in maar die is morsdood!

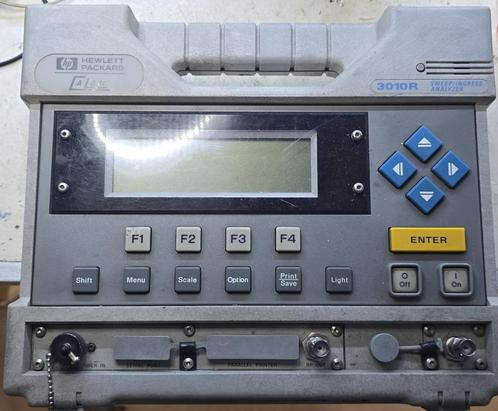

  • 3010R

This portable field instrument includes
forward sweep, return sweep and SLM
capabilities. The 3010R can also function
as a headend unit for troubleshooting
intermittent problems in specific network
segments. These functions may be dedi-
cated or combined to allow forward and
return sweep in a single unit (Option 052).
  • SPECIFICATIONS

SWEEP SOURCE AMPLITUDE ACCURACY*
Output Range: +10 dBmV to +50 dBmV in 1 dB steps
Absolute Accuracy: ±1.5 dB
Relative Accuracy: ±1 dB
Harmonic Output: <-30 dBc, 5 to 10 MHz; <-35 dBc,
10 to 1000 MHz
Spurious Output: <-30 dBc
Source Output Return Loss: >15 dB
Source Blanking During Sweep: >60 dBc
SWEEP CHARACTERISTICS*
Sweep Frequency Range: 5 MHz to 1 GHz
Sweep Width: Continuously variable
Frequency Resolution: 222 to 401 data points
Sweep Time: Sweep table dependent 650 msec (typical)
DATA TRANSMISSION PILOT CHARACTERISTICS*
Range: 5 MHz - 1 GHz
Programmable Resolution: 10 kHz
Data Carrier Modulation Bandwidth: -30 dBc 50 μ sec
Burst repetition rate: 14 dB; all other settings,
>20 dB
MEASUREMENT SPECIFICATIONS (cont’d)
Ingress Measurements
Burst Count
Minimum Burst Width: 3 Sec
Average Noise Power
Maximum TDMA Pulse Width Not Captured: >500 mSec
Hum
Range: 0.5 to 5%
Resolution: 0.1%
Accuracy: ±0.2%, ±30% of reading
Carrier-to-Noise Ratio
Range: 50 dB
Accuracy: ±2 dB
Repeatability: ±1 dB
Wavelength: 1310 and 1550 nm
Measurement Range: +20 to -38 dBm, 1310 nm;
+18 to -38 dBm, 1550 nm
Resolution: 0.1 dB
Accuracy: ±5%
Display: dB, dBm, nW, mW
Connector Styles: ST, FC, SC, biconic, D4, SMA, or bare
fiber, rotary splice, RM
GENERAL
Internal Memory For:
Data and Graphics Files: Up to 90
Channel Plans: 4
Printer Output of Screen Display: Parallel and RS-232
Temperature
Operating
2010B, 3010B, 3010R: -20°C to +55°C
3010H: 0°C to +55°C
Storage: -20°C to +70°C
Size
2010B, 3010B, 3010R: 10.5"h x 12.5"w x 4.75"d
3010H: 5.25"h x 19"w x 11.5"d
Weight
2010B, 3010B, 3010R: 10.7 lb with battery
3010H: 9.5 lb
Power
2010B, 3010B, 3010R: +10 to +15 Vdc, 550 mA max
3010H: 90 VAC to 264 VAC, 47 to 63 Hz 20 VA max
Display
Area: 5.0 in x 1.33 in
Resolution: 240 x 64 pixels
Type: LCD with EL back light
