Kenmerken
Conditie
Zo goed als nieuw
Type
Overige meters
Beschrijving

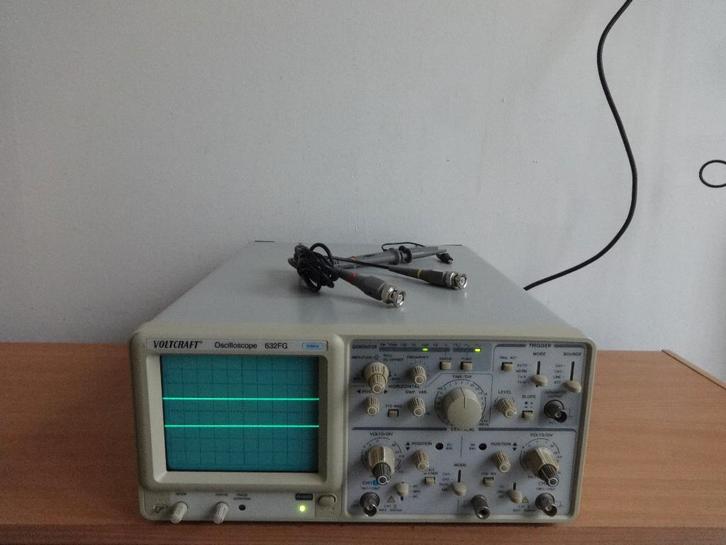

In goed functionerende staat Voltcraft oscilloscope
Model: 32 FG
Inclusief probes
Omschrijving:
The Voltcraft 632 FG is a dual-channel analog oscilloscope with a built-in function generator, designed for professional, service, and hobbyist applications. It features a bandwidth of DC to 30 MHz (-3dB), providing high sensitivity with a minimum input sensitivity of 1 mV/DIV when using the ×5 magnification (5 mV/DIV otherwise).
The oscilloscope uses a 6-inch rectangular cathode-ray tube (CRT) with a red internal graticule, which ensures clear trace visibility even at high sweep speeds due to its high beam transmission and high acceleration voltage of 2 kV.
The time base offers a range from 0.2 seconds per division (cm) down to 20 nanoseconds per division (cm), with a sweep speed of 100 nanoseconds per division (cm) when magnified 10 times.
It supports various triggering modes, including normal, auto, TV-V, and TV-H, and includes a sync separator circuit for stable triggering on television signals.
The instrument provides a variety of display modes such as K I and/or K II, ±K II, and X-Y operation.
The device has a maximum input voltage rating of 300 V (DC + peak AC value), with an input impedance of 1 MΩ in parallel with 25 pF. It is equipped with a function generator capable of producing sine, square, and triangle waves across a frequency range from 0.1 Hz to 1 MHz. The oscilloscope is portable, with dimensions of 310 x 150 x 455 mm and a weight of 8 kg.
It has a maximum power consumption of 35 W and supports line voltage conversion for use in different regions.
The Voltcraft 632 FG is designed for reliable operation and includes features such as a calibration capability in accordance with ISO/DKD standards. It also includes a 1 kHz, 2.0 Vss internal calibrator for signal verification.
The instrument is suitable for a wide range of applications, including circuit analysis, amplifier testing, and signal troubleshooting.
Model: 32 FG
Inclusief probes
Omschrijving:
The Voltcraft 632 FG is a dual-channel analog oscilloscope with a built-in function generator, designed for professional, service, and hobbyist applications. It features a bandwidth of DC to 30 MHz (-3dB), providing high sensitivity with a minimum input sensitivity of 1 mV/DIV when using the ×5 magnification (5 mV/DIV otherwise).
The oscilloscope uses a 6-inch rectangular cathode-ray tube (CRT) with a red internal graticule, which ensures clear trace visibility even at high sweep speeds due to its high beam transmission and high acceleration voltage of 2 kV.
The time base offers a range from 0.2 seconds per division (cm) down to 20 nanoseconds per division (cm), with a sweep speed of 100 nanoseconds per division (cm) when magnified 10 times.
It supports various triggering modes, including normal, auto, TV-V, and TV-H, and includes a sync separator circuit for stable triggering on television signals.
The instrument provides a variety of display modes such as K I and/or K II, ±K II, and X-Y operation.
The device has a maximum input voltage rating of 300 V (DC + peak AC value), with an input impedance of 1 MΩ in parallel with 25 pF. It is equipped with a function generator capable of producing sine, square, and triangle waves across a frequency range from 0.1 Hz to 1 MHz. The oscilloscope is portable, with dimensions of 310 x 150 x 455 mm and a weight of 8 kg.
It has a maximum power consumption of 35 W and supports line voltage conversion for use in different regions.
The Voltcraft 632 FG is designed for reliable operation and includes features such as a calibration capability in accordance with ISO/DKD standards. It also includes a 1 kHz, 2.0 Vss internal calibrator for signal verification.
The instrument is suitable for a wide range of applications, including circuit analysis, amplifier testing, and signal troubleshooting.
...
...
...
...
...
...
...
...
...
...
...
...
