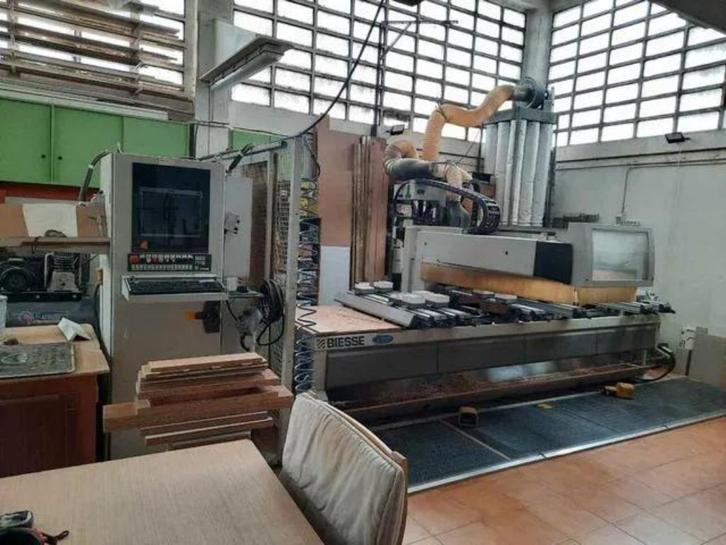

We hereby offer this used Biesse Rover A3.30 CNC machining center from 2006, This CNC machining center is designed for high-precision woodworking applications and is equipped with a working area of 3060 x 1260 mm, allowing for the processing of large panels. It features a powerful 12 kW motor and a high-speed spindle with a rotation speed of 20,000 rpm, ensuring efficiency and accuracy in milling, drilling, and routing operations.

Features:

• 3 axes.
• Biesse works program.

Technische specificaties:
Fabrikant Biesse
Model Rover A3.30
Jaar 2006
Conditie Gebruikt
Gemaakt in Italië
Werkgebied in X 3060 mm
Werkgebied in Y 1260 mm
Z-as verplaatsing 200 mm
Laadbaar stuk 150 mm
X-Y-Z as snelheid 80 - 80 - 25 m/min
Electrospindel ISO 30 of HSK F63
Motorvermogen 12 kW
Rotatiesnelheid 20000 rpm
Boorkop 14 verticale spindels, 6 horizontale spindels
Gereedschapmagazijn 10 of 18 posities
Geïnstalleerd vermogen 17 kVA
Werkdruk 7 - 7.5 bar
Vacuum pomp 100 m³/h

Afmetingen:
Lengte: 5085 mm
Breedte: 3750 mm
Hoogte: 2300 mm
Gewicht: 2800 kg

*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.
Bidding is subject to specific circumstances and negotiation terms.
