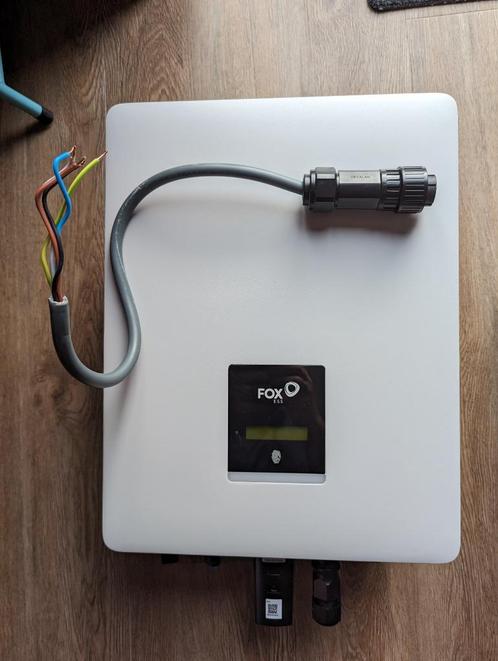

Bij deze verkopen wij onze omvormer, hij is afgemeld uit de app en kan bij FoxCloud opnieuw worden geregistreerd. De reden van verkoop is dat wij een zwaardere omvormer hebben gekocht wegens aanschaf meer zonnepanelen De omvormer is ongeveer een maand of 13-17 gebruikt Technische gegevens: Model T3-G3

Input:
Max. Recommended DC power [W]  4500
Max. DC Voltage [V]  1100
Nominal DC Operating Voltage [V] 600
Max. Input Current (input A/input B) [A]  14/14
Max. Short Circuit Current (input A/input B) [A]  18.2/18.2
MPPT Voltage Range [Vdc]  140-1000
MPPT Voltage Range (full load) [Vdc]  140-850
Start-up voltage [V]  140
No. of MPP Trackers  2
Strings per MPP Tracker  1+1

Output:
Nominal AC Power [W]  3000
Max. Apparent AC Power [VA]  3000
Rated Grid Voltage (AC Voltage Range) [Vac]  3/N/PE, 220V/380V, 230V/400V 240V/415V
Rated Grid Frequency [Hz]  50/60
Nominal AC Current [A]  4.3
Max. AC Current [A]  4.8
Displacement Power Factor  1 (Adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion (THDi, @rated output)  <3%

Efficiency
MPPT Efficiency [%]  99.8
Euro Efficiency [%]  97.8
Max. Efficiency (@rated voltage) [%]  98.6

Protection
DC Reverse-polarity Protection:  YES
Anti-islanding Protection: YES
Insulation Monitoring: YES
Residual Current Monitoring: YES
AC Short Circuit Protection:  YES
AC Output Over Current Protection: YES
AC Output Over Voltage Protection: YES
Surge Protection:  Type II(DC) / Type II(AC)
Temperature Protection: YES
Integrated DC Switch: YES
AFCI Protection: Optional
String Level Monitor: YES

Standard
Safety IEC62109-1/2
EMC IEC 61000-6-1/IEC 61000-6-2/IEC 61000-6-3/IEC61000-4-2/3/4/5/6/8
Certification:  AS4777.2-2020 / VDE-AR-N 4105 /VDE0126-1-1 /G98 / G99 / EN50549-1/ CEI 0-21/ NB/T32004
IEC62116 /IEC61727 /IEC61683

General Data
Dimensions (WxHxD) [mm]  370*480*183.5
NET Weight [kg] 21
Cooling Concept: Natural
Protective class: Ⅰ
Degree of Protection (according to IEC60529) IP65
Topology:  Transformerless
Over Voltage Category:  III (AC side), II (PV side)
Noise [dB]  <30
Operating Temperature Range [°C]  -25…... +60(derating at +45)
Storage Temperature Range [°C]  -40…... +70
Altitude[m] 3000
Humidity  0-100% (no condensation)
Self Consumption (night) [W]  <3
Pollution Degree Ⅱ
Monitoring Module (optional)  RS485, WIFI (optional) / GPRS (optional) / 4G(optional)
Communication: Meter, DRM, USB update, E-stop
Display: LCD screen, Touch Key, App, Website
