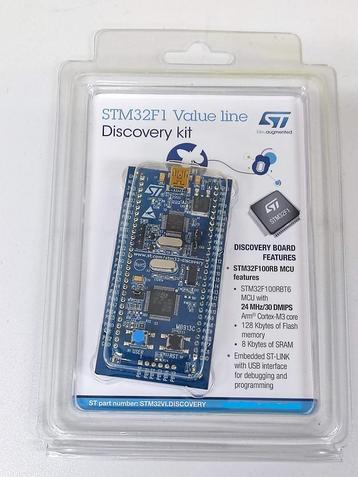

STM32F1 Discovery kit€ 5,00

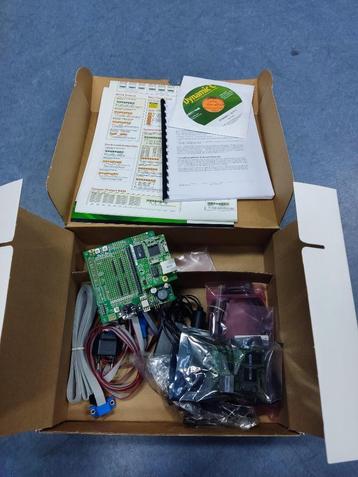

STM3210C-Eval
Bieden
Ophalen of Verzenden
Afhaalpunt voor € 4,95 of thuis voor € 5,95
Thuisbezorgd voor € 6,95
18112sinds 17 jan. '25, 12:45
Kenmerken
ConditieGebruikt
Beschrijving
The STM3210C-EVAL evaluation board is a complete development platform for STMicroelectronic's ARM Cortex-M3 core-based STM32F107VCT microcontroller.
The range of hardware features on the board help you to evaluate all peripherals (USB-OTG FS, ethernet, motor control, CAN, microSD CardTM, smartcard, USART, audio DAC, MEMS, EEPROM and more) and develop your own applications.
Extension headers make it easy to connect a daughterboard or wrapping board for your specific application.
Boot from user Flash, system memory or SRAM I2S audio DAC, stereo audio jack 2 GByte microSD Card™ or bigger Both A and B type smartcard support I2C compatible serial interface 64 Kbit EEPROM, MEMS and I/O expander RS-232 channel IrDA transceiver USB OTG full speed, USB microAB connection IEEE-802.3-2002 compliant ethernet connector
Two channels of CAN 2.0A/B compliant connection Inductor motor control connector JTAG and trace debug support 3.2” 240x320 TFT color LCD with touch screen Joystick with 4-direction control and selector Reset, wakeup, tamper and user buttons 4 color LEDs RTC with backup battery MCU consumption measurement circuit Extension connector for daughterboard or wrapping board
The range of hardware features on the board help you to evaluate all peripherals (USB-OTG FS, ethernet, motor control, CAN, microSD CardTM, smartcard, USART, audio DAC, MEMS, EEPROM and more) and develop your own applications.
Extension headers make it easy to connect a daughterboard or wrapping board for your specific application.
- All features Three 5 V power supply options:
- power jack
- USB connector
- daughterboard
Boot from user Flash, system memory or SRAM I2S audio DAC, stereo audio jack 2 GByte microSD Card™ or bigger Both A and B type smartcard support I2C compatible serial interface 64 Kbit EEPROM, MEMS and I/O expander RS-232 channel IrDA transceiver USB OTG full speed, USB microAB connection IEEE-802.3-2002 compliant ethernet connector
Two channels of CAN 2.0A/B compliant connection Inductor motor control connector JTAG and trace debug support 3.2” 240x320 TFT color LCD with touch screen Joystick with 4-direction control and selector Reset, wakeup, tamper and user buttons 4 color LEDs RTC with backup battery MCU consumption measurement circuit Extension connector for daughterboard or wrapping board
Advertentienummer: m2224374048
