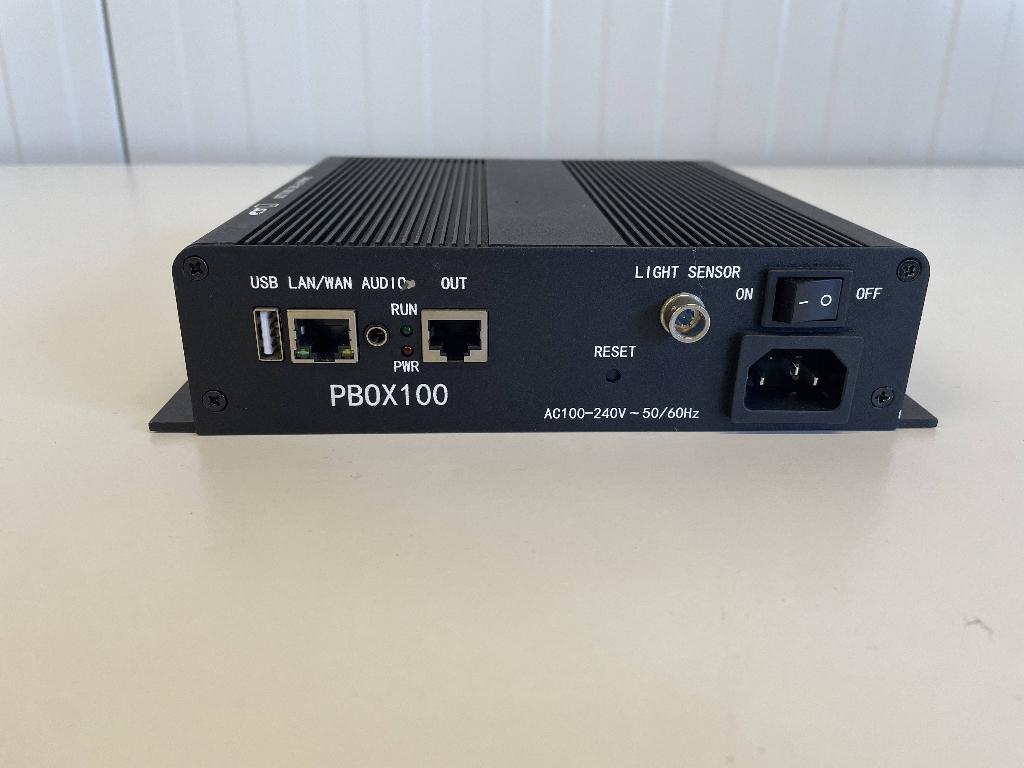

Te koop aangeboden Novastar PBOX100 Async LED Sending Box. Niet gebruikt.

The Novastar PBOX100 Async LED Sending Box offers advanced control and management for LED displays. It supports both brightness and color calibration for precise display quality, and includes features for detecting LED faults with supported ICs like MBI5036 and DM13H. The box also monitors temperature and voltage to ensure reliable operation.
For enhanced functionality, it supports automatic brightness adjustment with the NS048C light sensor and is compatible with the MFN300 multi-function card. This makes the PBOX100 a versatile and reliable solution for managing LED display systems.
Functions And Features

• Program Publishing. Allows remote publishing of play programs.
• Monitoring And Power Control. The Novastar PBOX100 enables remote monitoring and control of the power supply.
• Time-Based Playback. Programs can be scheduled based on time segments, dates, weeks, and specific times.
• Auto-Adapting Display Window. Automatically adjust the display window to fit the content.
• Versatile Formats. The Novastar PBOX100 supports various media formats including video, images, text, weather updates, clock, countdowns, and documents (Word, Excel, Txt). Note: Flash versions 7 and above are not currently supported.
• Emergency Insert Play. Allows for immediate insertion and playback of emergency notifications.
• Log Management. Remote management of playback logs.
• USB And Plug-and-Play. The Novastar PBOX100 facilitates easy import of programs via USB.
• Remote Upgrades. Supports remote upgrading of application software and firmware.
• Flexible Resolution. Supports various resolutions including 960×600, 1024×570, 1536×384, and 2048×256.
• Drive IC Support. Compatible with major drive ICs such as TI, Toshiba, MBI, Siti, and Sumacro, including specific models like DM13H, MBI5024/5036/5034, and MBI5040/5050.
• Full-Color And Scan Support. Supports full-color LED screens with static to 1/32 scan and both real and virtual pixels.
• Field Frequency. Up to 60Hz for smooth visuals.
• Refresh Rate. Up to 3840Hz for scanning screens and 6000Hz for static screens.
• Brightness and Color Calibration. The Novastar PBOX100 supports both brightness and color calibration.
• Open/Short Circuit Detection. Detects LED faults with supported ICs like MBI5036 and DM13H.
• Temperature And Voltage Detection. On-board monitoring of temperature and voltage.
• Light Sensor Support. Automatic brightness adjustment when used with the NS048C light sensor.
• Support For MFN300. The Novastar PBOX100 allows for expanded functionality with the multi-function card MFN300.Specifications

• Supported Resolutions. 960×600, 1024×570, 1536×384, 2048×256.
• Field Frequency. Up to 60Hz.
• Gray Scale Level. Up to 16 bits (65,536 levels).
• Refresh Rate. Scanning screens up to 3840Hz, static screens up to 6000Hz.
• Drive IC Compatibility. TI, Toshiba, MBI, Siti, Sumacro, including DM13H, MBI5024/5036/5034, MBI5040/5050.
• Automatic Brightness Adjustment. Supported with NS048C light sensor.
• Multi-Function Card Support. Compatible with MFN300.
