Kenmerken
Conditie
Nieuw
Beschrijving

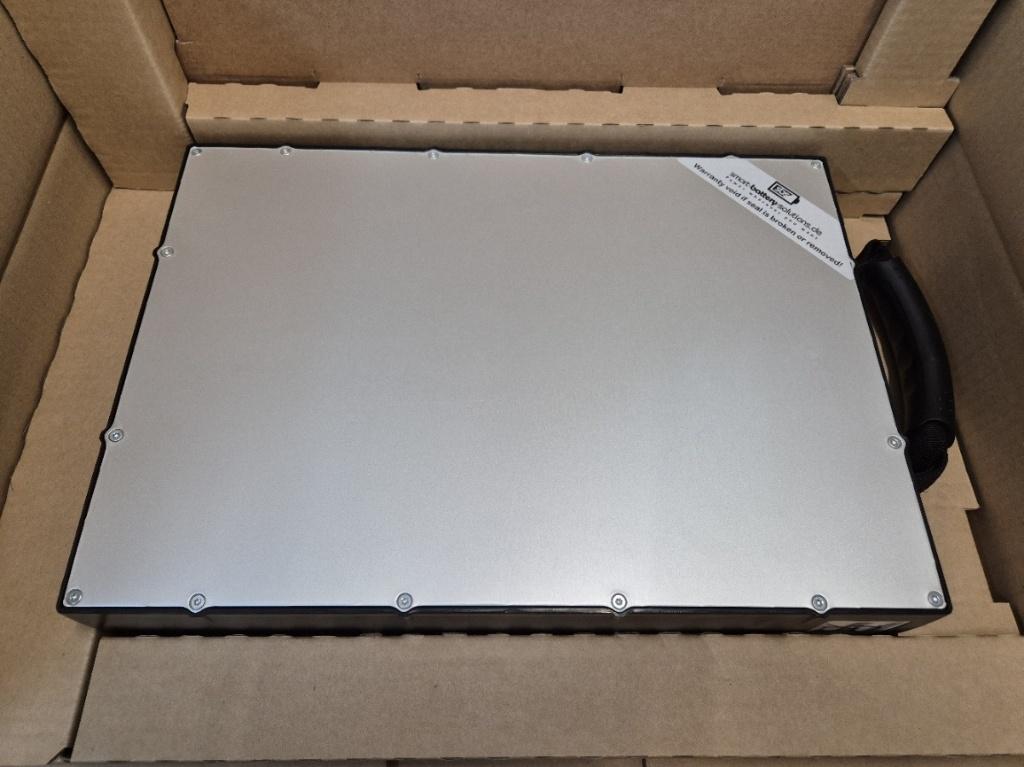

Smart Battery Solution - UniPower L 48V Li-ion battery (Prototype)
Nieuw en ongebruikt in originele verpakking.
Komt uit een partij diversen.
Electrical data:
Cell size: 18650
Nominal cell voltage: 3.6 V
Nominal cell capacity: 3,2 Ah
Serial -Config: 14
Parallel -Config: 12
Nominal voltage:50,4 V
Nominal capacity: 38,4 Ah
Nominal energy: 1.935 Wh
Charging (without CAN):
End of charge voltage: 58,8 V
Recommended charge current: 8 A
Max. charge current: 15 A
Charge temperature range: 0-45 °C
Discharging:
End of discharge voltage: 42 V
Recommended discharge current: 40 A
Max. discharge current: 50 A
Discharge temperature range: -20-60 °C
Mechanical data:
Length: 265 mm
Width: 75 mm
Height: 377 mm
Weight: 11,5 Kg
IP class: 65
Energy density:
volumetric energy density: 258 Wh/l
gravimetric energy density: 168 Wh/kg
Nieuw en ongebruikt in originele verpakking.
Komt uit een partij diversen.
Electrical data:
Cell size: 18650
Nominal cell voltage: 3.6 V
Nominal cell capacity: 3,2 Ah
Serial -Config: 14
Parallel -Config: 12
Nominal voltage:50,4 V
Nominal capacity: 38,4 Ah
Nominal energy: 1.935 Wh
Charging (without CAN):
End of charge voltage: 58,8 V
Recommended charge current: 8 A
Max. charge current: 15 A
Charge temperature range: 0-45 °C
Discharging:
End of discharge voltage: 42 V
Recommended discharge current: 40 A
Max. discharge current: 50 A
Discharge temperature range: -20-60 °C
Mechanical data:
Length: 265 mm
Width: 75 mm
Height: 377 mm
Weight: 11,5 Kg
IP class: 65
Energy density:
volumetric energy density: 258 Wh/l
gravimetric energy density: 168 Wh/kg
...
...
...
...
...
...
...
...
...
...
...
...
