Radiolink Zenderset pistoolzender RC8x 8-channel radio with R8FG gyro integrated Receiver

Technische specificaties

8 Channels for Multiple types of Models

Parameters easily to set

4WS mixing designed for crawlers, timber truck and other 4WS types vehicles

brake mixing makes the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently

Tank mixing is designed for the dual-engine intended for vehicles such as tanks

Tilt mixing is designed for boat, easy to set the parameters and fully enjoy the boating.

Customizable Gyro sensitivity

Standard receiver R8FG packed is the receiver with built-in gyro and supports high voltage servo

It is anti-slip and keeps the uni-direction, with the integrated gyro in R8FG installed, the vehicle turns more smoothly,

and drifting from high speed can be prevented.

Threaded design helps antiskid when the drivers are at long-time practice or in hot weather

The trigger spring's tension and trigger slide of RC8X can be adjusted

A lanyard to make the suitable weight highly compatible with drivers' control habits to make the long drive more pleasant

Various switch styles for easy recognition and usage

FPV display holder designe helps the drivers enjoy the FPV fun of driving

Lefty friendly: the left and right installation directions of the wheel selection can be reversed

Up to 64 GB memory expansion

USB (type-C) online upgrade

The thumb lever makes it possible to steer one-handed safely

Reverse polarity protection circuit

RC8X is easily adapted for various battery layouts with wide operating voltage tolerance:

8 pcs of AAA batteries or a 2S-4S LiPo or a 6S Ni-MH battery universal jst connector with the voltage protection software of Radiolink ensure vital components are protected from reverse polarity connection

Compatible with old version receivers R4FGM/R4F, R6FG/R6f, R7FG and the R8EF/R8F

Key features

• 4.3 Inches full color touch screen
• User-defined voice broadcast pack
• one screen, dual use (use as FPV display)
• 8 Channels for multiple types of models
• 600 Meters ground distance
• 200 Groups model storage
• 16 Models' subsidiary ID storage
• 8 Groups of programmable Mix control
• 64 GB of extended memory

Specifications

Dimensions

L*W*H= 121*163*209mm (4.76”*6.42”*8.23”)

Weight

438.5g (15.47oz)

Antenna Length:

Built-in antenna

Dimension of Battery Case:

L*W*H= 92*52*14.5mm (3.62”*2.05”*0.57”)

Frequencies Band:

2.4GHz ISM band (2400MHz ~ 2483.5MHz)

Spread Spectrum Mode:

FHSS, 67 channels pseudo random frequency hopping

Modulation Mode:

GFSK

Channels:

8 channels

Applicable Model Types:

Car / Boat / Robot

Screen

4.3 inches, full-color, blacklit LCD touch screen

Model memory

200 group of models’ storage

Ground control distance

600 m (1968.5ft) (max range tested in unobstructed areas free of interference)

Operating voltage

7~17V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery)

Operating Current

250mA±10mA@8.4V(the LCD screen light on), 190mA±10mA@8.4V(the LCD screen light off)

Transmission Power

<20dBm

Channel resolution

4096 with regular jiter of 0.5us

Low voltage alarm

low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized

Compatible receiver

R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

Voice broadcast

Support

Menu customized

Menu, font, desktop, etc…. can be customized

CRSF protocol supported

Compatible wit TBS Crossfire

FPV head track function

Support

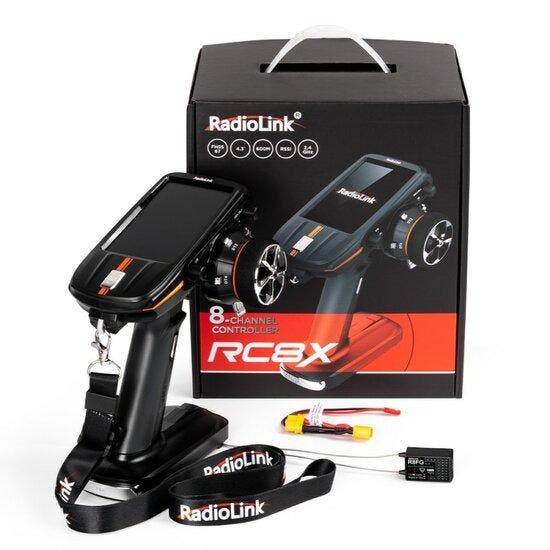

Composition Kit

• Transmitter RC8X
• Receiver R8FG
• EXT Connect cable
• Lanyard
• Type-C USB Cable (for upgrade)
• 32GB TF (Micro SD) card
• Instruction Manual

Datasheet

• Manufacturer : Radiolink
