Matek Digital AirSpeed Sensor ASPD-4525

401sinds 19 jun. '25, 12:45
€ 50,00
Ophalen of Verzenden
Deel via
of

Kenmerken

ConditieNieuw

Beschrijving

Specifications
  • Board Supply voltage: 4~5.5V DC
  • Sensor: TE 4525DO-DS5AI001DP
  • Working current: 5mA
  • Output: I2C (SCL & SDA)
  • Pressure Ranges: 1 PSI (6.89kPa)
  • Maximum Pressure: 20 PSI (137.9kPa)
  • Operating Temperature: -40°C ~ 125°C
  • Accuracy: ±0.25% SPAN
  • Red LED: power indicator
  • JST-GH sequence: 5V, SCL, SDA, GND
  • Weight: 3.5g (sensor board)

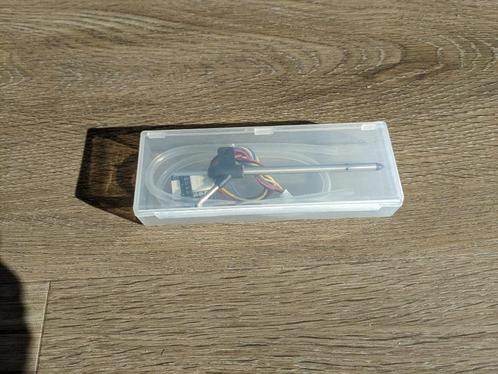

Including
  • 1x ASPD-4525 Sensor Board.
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
  • Pitot Tube.
  • Clear silicon tubing 40cm

Wiring
  • 5V to FC 4~5.5V
  • SCL to FC I2C_SCL
  • SDA to FC I2C_SDA
  • G to FC GND
