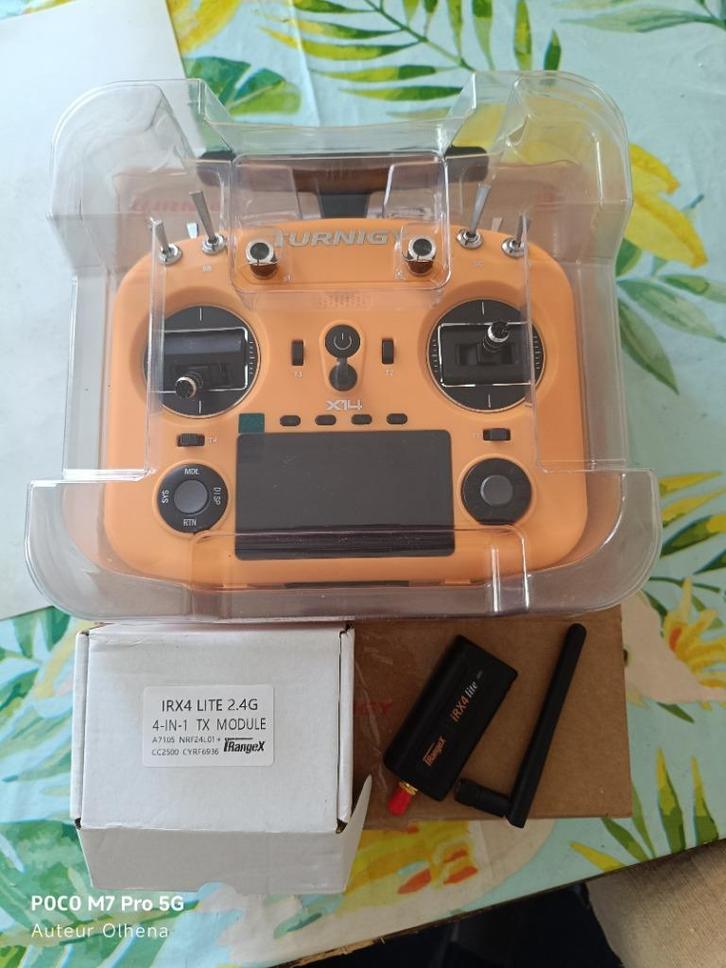

Nieuw in de doos. ( Oranje ! )

Turnigy/FrSky TWIN X14 ACCESS 2.4GHz Transmitter (Orange) - Exclusive to HobbyKing

The Turnigy TWIN X14 is an exclusive HobbyKing offering, featuring a unique colour that sets it apart in the market.
This robust radio system comes preloaded with HobbyKing planes, ensuring a seamless experience straight out of the box.
It also boasts the capability of utilizing dual 2.4GHz frequencies simultaneously on the same receiver when using the TW mode.
This is different from standard active-standby redundancy solutions, as the TW active protocol ensures that both 2.4GHz frequency bands are actively being used by the internal RF module and the receiver simultaneously.
Equipped with two internal 2.4G RF antennas, the TWIN X14 offers expansive multi-directional coverage for transmitting signals.
These attributes, along with the exterior antenna, provide higher reliability, less latency, and faster data rates.
In addition to the TW mode, the TWIN X14 also supports ACCST D16 and ACCESS modes, meaning users can benefit from a wide range of compatible receiver options.

The compact, ergonomic design ensures that all the buttons, switches, and sliders are very easily accessible.
The TWIN X14 also offers 4 customizable buttons, these are sensibly placed in the center of the transmitter for easy access.
An example of using these buttons is when flying an RC glider you can configure these buttons as additional trim functions.
These buttons become invaluable for making adjustments when flying and allow pilots to adjust the angle of the flaps and control surfaces according to the real-time air environment.
The Turnigy TWIN X14 is also mode changeable from Mode 2 to Mode 1 for example.
This does require the rear cover being removed and adjustments made to the ratchets, etc on the stick units, but it is very straightforward to do.
It is then a simple case of going into the settings and selecting the mode you require.

With the TWIN X14 there is no need for users to fret over the amount of storage available.
It boasts a built-in 128MB flash storage facility that provides ample space for your file storage requirements.
Its practicality extends to a battery bay that can accommodate a 2600mAh Lithium Battery (not supplied).
This is easily replaceable/exchanged, and the Tx features a Type-C port for recharging and data transfer.
Further enhancing its user-friendly design, the TWIN X14 introduces an attachable, and foldable structure on the rear case.
This design allows for the easy installation of an additional stand holder which is available separately.

Features:
• Hobbyking planes come preloaded on the radio
• Exclusive Model to Hobbyking
• Long range built-in dual 2.4GHz band TW-ISRM internal RF module
• Ergonomic, compact, and lightweight design, with comfortable rounded hand grips
• Easy-to-reach switches and sliders, 4 quick-mode custom buttons on the front, 2 momentary buttons on the rear
• High resolution 640x360 color display screen
• High precision hall sensor gimbals, mode changeable
• Haptic vibration alerts and speech outputs
• Lite-type external module bay

Specs:
Type: Turnigy TWIN X14 ACCESS Transmitter
Frequency: 2.4GHz
Operating System: ETHOS
Compatibility: ACCST D16/ACCESS/TW modes
No of Channels: Up to 24
Gimbals: High-precision hall sensor
Built-in Flash Storage: 128MB
Internal Module: TW-ISRM
External Module: Lite-type
Display Screen: 2.95" color with 640x360 resolution
Data & Charging Interface: USB Type-C
Alerts: Haptic vibration and speech alerts
USB Adaptor Voltage/Current: 5V+0.2V@2A
Operating Voltage: 6.5~8.4V (2S Li-battery)
Operating Current: 330mA@7.4V
Range: Up to tens of kilometers depending on the RF power setting
Dimensions: 192x193x72mm
Weight: 610g (excluding battery)
Color: Orange

Included:
1 x Turnigy TWIN X14 ACCESS 2.4GHz Transmitter (Orange)
1 x Neckstrap
1x IRX4 LITE CC2500 NRF24L01+ A7105 CYRF6936 4-IN-1 multiprotocol TX-module voor Frsky X-lite Opmerking:
De STM32 MCU heeft verandering naar ARM, vuurwerk is ARM CORTEX-M
De nieuwe voorraad zal ARM zijn, bestaande inventaris is niet aangevraagd
Specificatie:
Merknaam: IRangeX
Bedrijfsspanning: 5-9V
Bedrijfsstroom: ≤180mA
Werkfrequentie: 2.4G ISM-band
RF-vermogen: +22dBm
MCU: ARM CORTEX-M (128K ROM, 20K RAM)
Gewicht: 32 g
Overzicht:
Deze 4-in-1 TX-module is geschikt voor FRSKY X-Lite. Het integreert vier RF-chips (CC2500, NRF24L01+, A7105, CYRF6936) in één enkele printplaat, het ondersteunt een verscheidenheid aan afstandsbedieningsprotocollen, zoals Futaba S-FHSS, Walkera DEVO, Spektrum DSM2, D Flysky, Frsky, WLToyos, Hubsan, Hisky, Hisky, Hi..., Hisky, Hisky, enz. U kunt uw flexibiliteit van het model controleren, en krijg je veel uitstekende ervaring met je favoriete zender. Deze module is compatibel met het Multi-module-project op github.

Required:
1 x 2S Lithium battery up to 2600mAh capacity

De zender is nieuw in de doos en ook de adapter antenne.
De antenne zorgt ervoor dat met met meerdere protocollen kunt vliegen zoals Spectrum etc etc.

U bied voor zender en adapter.

Bij ophalen kunt u pinnen/overmaken.
Verzenden kan voor 7 euro op kosten/risico koper
