kelly controller
15910sinds 6 mei. '25, 15:51
€ 400,00
Ophalen of Verzenden
Afhaalpunt voor € 4,95 of thuis voor € 5,95
Thuisbezorgd via PostNL voor € 6,95
Kenmerken
ConditieNieuw
Beschrijving

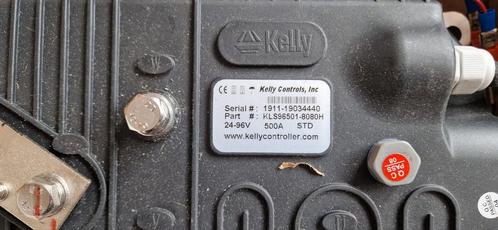

Sinus BLDC controller KLS96501-8080H, 24V-96V, 500A
DescriptionAnalog brake regen mode. This regen mode no longer needs a brake switch to support. Only available for software version 0106 or advanced version. KLS controller does not support flashing by default.
Improved regenerative braking function. New ABS technology provides powerful and smooth regeneration. Regeneration can occur at all speeds up to zero speed.
The KLS-H controller comes with a case fuse. The shunt is sold separately.
Cruise control. Can only be activated in the forward direction.
KLS-H can support broadcast-type CAN bus function. It is 250Kbps . Adjustable Accelerator Pedal Protection: The controller will not work if high throttle is detected when turned on.
Current Multiply: Less current from battery, more current to engine.
Easy installation: 3- a wired potentiometer will work.
Standard PC/Laptop for programming. There is another choice for customers to program the KLS controller. Standard Android tablet for programming. Z-TEK USB TO RS232 cable is required to connect the controller to App on tablet.
User program provided. Easy to use. Free for customers.
Support motors with any number of poles.
Standard up to 70,000 electrical revolutions per minute. (Electrical speed = mechanical speed * motor pole pairs; motor pole pairs = motor poles / 2).
KLS-H: sealed against dust and water, IP66
KLS-8080H. Degree of protection IP54.
Specifications:
Operating frequency: 10 kHz or 20 kHz.
Battery standby current: < ;0.5 mA.
Sensor supply current 5 V or 12 V: 40 mA.
Controller supply voltage range: Model KLS24V: PWR, 20 V to 30 V, Model KLS60V: PWR, 40 V to 80 V, Model KLS72V: PWR, 40 V to 90 V, Model KLS84V: PWR, 40 V to 105 V
Power supply, PWR, 30 mA (type .).
Customizable battery voltage range, B+.
Tekst gekopieerd van de website van Kellycontroller. Nieuwprijs is over de 1000,-, dus graag bieden naar waarde. De controllor is heel kort gebruikt, enkele uren maximaal, voor een zelfgebouwde machine waarbij de de motor (zie andere advertentie) als kabellier heb gebruikt. Heel veel koppel en is nooit warm geworden. Alle onderdelen die ik heb staan op de foto, dus geen display enzo. Voor mij was alleen een duimgasje voldoende. Voor vragen mag je mailen, ik weet wel wat, maar niet superveel, hij ligt alweer een jaartje in de doos.
DescriptionAnalog brake regen mode. This regen mode no longer needs a brake switch to support. Only available for software version 0106 or advanced version. KLS controller does not support flashing by default.
Improved regenerative braking function. New ABS technology provides powerful and smooth regeneration. Regeneration can occur at all speeds up to zero speed.
The KLS-H controller comes with a case fuse. The shunt is sold separately.
Cruise control. Can only be activated in the forward direction.
KLS-H can support broadcast-type CAN bus function. It is 250Kbps . Adjustable Accelerator Pedal Protection: The controller will not work if high throttle is detected when turned on.
Current Multiply: Less current from battery, more current to engine.
Easy installation: 3- a wired potentiometer will work.
Standard PC/Laptop for programming. There is another choice for customers to program the KLS controller. Standard Android tablet for programming. Z-TEK USB TO RS232 cable is required to connect the controller to App on tablet.
User program provided. Easy to use. Free for customers.
Support motors with any number of poles.
Standard up to 70,000 electrical revolutions per minute. (Electrical speed = mechanical speed * motor pole pairs; motor pole pairs = motor poles / 2).
KLS-H: sealed against dust and water, IP66
KLS-8080H. Degree of protection IP54.
Specifications:
Operating frequency: 10 kHz or 20 kHz.
Battery standby current: < ;0.5 mA.
Sensor supply current 5 V or 12 V: 40 mA.
Controller supply voltage range: Model KLS24V: PWR, 20 V to 30 V, Model KLS60V: PWR, 40 V to 80 V, Model KLS72V: PWR, 40 V to 90 V, Model KLS84V: PWR, 40 V to 105 V
Power supply, PWR, 30 mA (type .).
Customizable battery voltage range, B+.
Tekst gekopieerd van de website van Kellycontroller. Nieuwprijs is over de 1000,-, dus graag bieden naar waarde. De controllor is heel kort gebruikt, enkele uren maximaal, voor een zelfgebouwde machine waarbij de de motor (zie andere advertentie) als kabellier heb gebruikt. Heel veel koppel en is nooit warm geworden. Alle onderdelen die ik heb staan op de foto, dus geen display enzo. Voor mij was alleen een duimgasje voldoende. Voor vragen mag je mailen, ik weet wel wat, maar niet superveel, hij ligt alweer een jaartje in de doos.
