ALESIS PEQ450 CLX440 PAIR COMPRESSOR LIMITER PARAMETRIC EQ DUAL STEREO PEQ CLX

Alesis Clx 440 = 350,-
EQ Peq 450 = 250,-

geweldig om je sound extra power te geven.
Heel duidelijk hoeveel compressie je toepast.

De compressor;

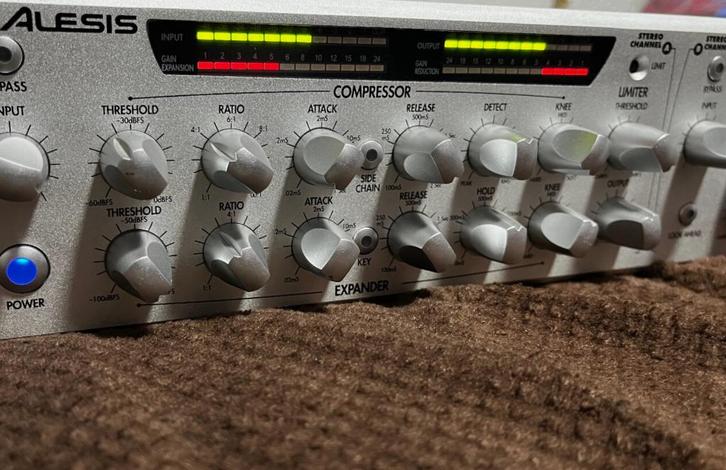

CLX - 440 Limiter, Compressor,Expander & Gate Function

A great sound shaping tool, designed to perform a dedicated function. Professional quality, four-channel, dual-stereo digital processor with the look and feel of an analog system. A unique, one knob per function interface, Alesis proprietary technology, based on Alesis patented semiconductor design.

Specifications
Frequency Response: 20Hz - 20kHz
Dynamic Range: 103dB (A-weighted)
THD+N: <0.003%
Converters: Alesis Semiconductor 24-bit 128x oversampling Sigma-Delta A/D, D/A converters
S/N Ratio: -103 dB (A-weighted)
Internal Processor: Alesis Semiconductor
Internal Sampling: 48k
Compressor Threshold: -60dBFS to 0dBFS, continuously variable
Ratio: 1:1 - 00:1, continuously variable
Attack: .02ms - 1 second, continuously variable
Release: 100ms - 2 seconds, continuously variable
Knee: Hard &endash; Soft, continuously variable
Detect: Peak &endash; RMS, continuously variable
Look-ahead Delay: 2 ms
Limiter Threshold: -20dBFS to 0dBFS, continuously variable
Expander Threshold: -100dBFS to 0dBFS, continuously variable
Ratio: 1:1 - Gate, continuously variable
Attack: .02ms - 1 second, continuously variable
Release: 100ms - 2 seconds, continuously variable
Knee: Hard &endash; Soft, continuously variable
Detect: Peak &endash; RMS, continuously variable
Look-ahead Delay: 2ms
Inputs: 4 channels 1/4" Balanced TRS &endash;10dBV or +4dBu, switchable
Impedance: 10kOhm
Max Input Level: +19dBu (@+4dBu nominal)
Sidechain: 2 channels 1/4" Balanced TRS
Impedance: 10Kohm Max
Input Level: +19dBu Key: 2 channels 1/4"
Balanced TRS Impedance: 10kohm
Max Input Level: +19dBu Outputs: 4 channels 1/4" Impedance-balanced TRS &endash;10dBV or +4dBu, switchable
Impedance: 220ohm
Max Output Level: 19dBu (@+4dBu nominal)

Front Panel:
Rear-illuminated power switch,
Input trim x2,
Compressor Threshold x2,
Expander Threshold x2,
Compressor Ratio x2,
Expander Ratio x2,
Compressor Attack x2,
Expander Attack x2,
Compressor Release x2,
Expander Release x2,
Compressor Knee x2,
Expander Release x2,
Compressor Detect x2,
Expander Detect x2,
Limiter Threshold x2,
Output trim x2,
Limit LED x2,
Rear-illuminated Sidechain engage x2,
Rear-illuminated Key engage x2,
Rear-illuminated Look-ahead engage,
12-segment Input LED display x2,
12-segment Output LED display x2,
12-segment Compression LED display x2,
12-segment Expansion LED display x2,
Rear-illuminated Bypass engage x2

Rear Panel:
+4dBu / -10dBV select switch, Input 1/4" balanced TRS x4, Sidechain 1/4" balanced TRS x4, Key 1/4" balanced TRS x4, Output 1/4" Impedance-balanced TRS x4, Power.

Power Requirements: 7 Watts
Power Supply: Universal, internal switching 90V &endash; 230V
Dimensions: (WxHxD): 19" x 3.5" x 6" ( 483mm x 89mm x 152mm) 2 RU,
Weight: 5 lbs. (2.27kg)

De EQ PEQ 450
is een analoge parametrisch 5 bands EQ

Specifications
AUDIO INPUT
Input Connectors: 4 Balanced 1/4″ TRS jacks
Nominal Input Level: Adjustable from = +4dBu = -15dBFS
Maximum Input Level: +20dBu (7.78 Vrms)
Input impedance: 10 kOhm
AUDIO OUTPUT
+4dBu/-10dBV Switchable
Output Connectors: 4 Pseudo-Balanced 1/4″ TRS
jacks
Nominal Output Level (+4dBu): +4 dBu (1.23 Vrms) = -15 dBFS
Maximum Output Level (+4dBu): +19 dBu (6.9 Vrms) = -0 dBFS
Output impedance: 220 Ohm
AUDIO PERFORMANCE
Signal to Noise Ratio: 103 dB A-Weighted, Analog In
to Analog Out

Als u biedt, bied u voor de set.
Ophalen.
