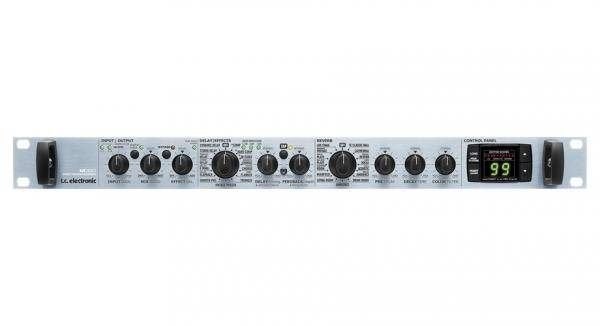

• Dual-engine rack processor with reverb and multi-effects with a user-friendly interface for live or studio applications
• Two-engine structure incorporates one engine entirely dedicated to reverbs and one engine for legendary multi-effects, giving you all the power you need for creative stage, front-of-house, and studio performances
• Easy front panel access to a user-friendly interface optimized for fast live performance use
• Fifteen quality reverbs from the strong TC Electronic effects heritage, including live, hall, plate, and room options, provide you with an ample creative palette
• Choice collection of fifteen multi-purpose effects on board, including delay, chorus, flanger, phaser, and more
• Default delay / effect and reverb settings give you access to 256 different preset sounds
• Space for 99 user-defined presets, with an easy-to-read front panel preset display
• Adaptive 100 - 240 V built-in power supply lets you have seamless operation at any mains voltage
• Configurable into dual input, serial, and parallel routing setups to give you great flexibility
• Provides balanced analog I/O and an auto-sensing 24-bit S/PDIF digital input / output that can accept and send signals at 44.1 or 48 kHz
• Tap Tempo function with optional pedal control lets you put your time-based effects right on the beat
• MIDI in/out for preset recall, parameter control and clock tempo sync
• Digital Input and Output

Connector
RCA Phono (S/PDIF)
Formats
S/PDIF (24 bit), EIAJ CP-340, IEC 958
Sample Rates
44.1 kHz. (48 kHz only @ Digital Input)
Processing Delay
0.08 ms @ 48 kHz
Frequency Response DIO
DC to 23.9 kHz ± 0.01 dB @ 48 kHz
Analog Inputs
Connectors
1/4" phone jack, mono sense
Impedance, Bal / Unbal
21 kOhm / 13 kOhm
Max. / Min. Input Level @ 0 dBFS
+24 dBu / 0 dBu
Sensitivity Range @ 12 dB headroom
-12 dBu to +12 dBu
A to D Conversion
24 bit, 128 x oversampling bitstream
A to D Delay
0.70 ms / 0.65 ms @ 44.1 kHz / 48 kHz
Dynamic Range
typ < -92 dB, 22 Hz to 22 kHz
THD
typ < -90 dB (0.0032 %) @ 1 kHz, -1 dBFS
Frequency Response
+0/-0.1 dB, 20 Hz to 20 kHz
Crosstalk
typ < -100 dB, 20 Hz to 20 kHz
Analog Outputs
Connectors
1/4" phone jack
Impedance Bal / Unbal
40 Ohm / 20 Ohm
Max. Output Level
+14 dBu
D to A Conversion
24 bit, 128 x oversampling bitstream
D to A Delay
0.68 ms / 0.63 ms @ 44.1 kHz / 48 kHz
Dynamic Range
typ < -105 dB typ, 22 Hz to 22 kHz
THD
typ < -97 dB (0.0014 %) @ 1 kHz, +13 dBu
Frequency Response
+0/-0.5 dB, 20 Hz to 20 kHz
Crosstalk
typ < -100 dB, 20 Hz to 20 kHz
EMC
Complies with
EN 55103-1 and EN 55103-2
Safety
Certified to
IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093
Environment
Operating Temperature
32° F to 122° F (0° C to 50° C)
Storage Temperature
-22° F to 167° F (-30° C to 70° C)
Humidity
Max. 90 % non-condensing
Control Interface
MIDI
In/Out: 5 Pin DIN
Pedal
1/4" phone jack
General
Finish
Anodized aluminum front Plated and painted steel chassis
Display
2 x 7 segment + LED's
Dimensions
19" x 1.75" x 4.2" (483 x 44 x 105.6 mm)
Weight
3.3 lb. (1.5 kg)
Mains Voltage
100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption
<15 W
