Kenmerken
Conditie
Gebruikt
Type
Equalizer, Compressor
Beschrijving

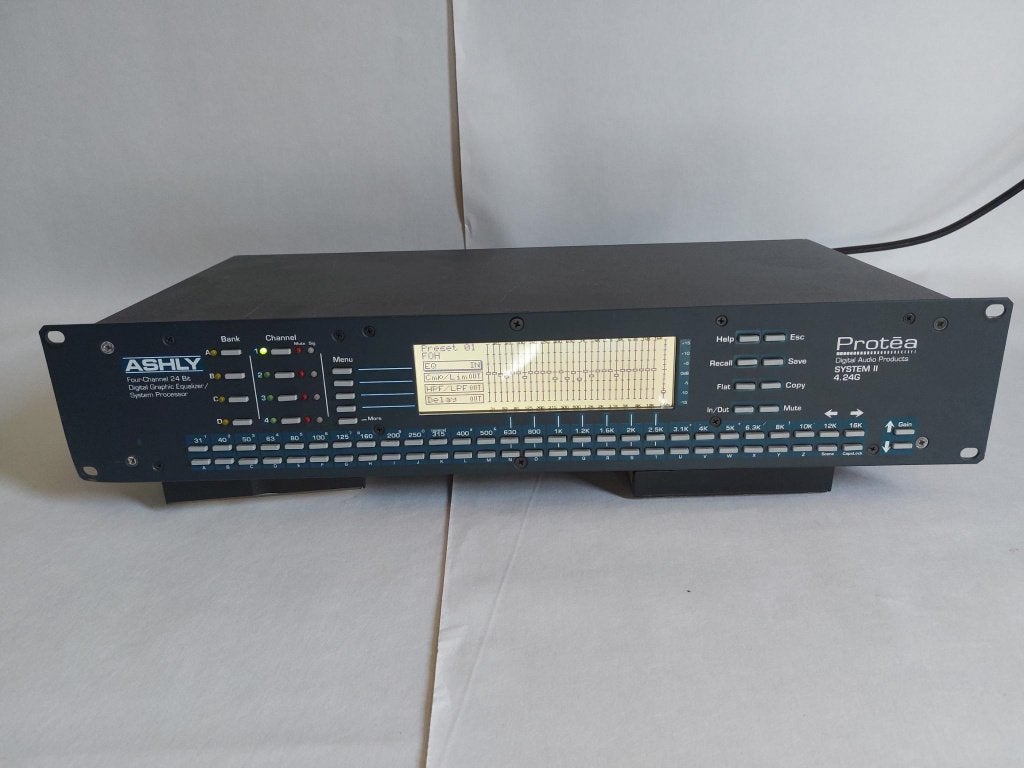

ASHLY Protea System II 4-Channel Digital Graphic Equalizer System Processor
Filter Type
Graphic, constant Q, reciprocating
Inputs
Number of Channels 4
Inputs 4 x XLR, 4 x 1/4" TRS phone, 1 x XLR Protea Data In, 1 x 5-pin DIN MIDI In
Outputs
4 x XLR, 4 x 1/4" TRS phone, 1 x XLR Protea Data Out, 1 x 5-pin DIN MIDI Out and Thru
Maximum Input Level +20dBu
Frequency Bands 4 x 28, centered on standard ISO frequencies
Bandwidth 1/3 octave
Range (Boost/Cut) +15dB/-15dB, 0.5dB increments
Compressor Threshold -20dBu to +20dBu
Compression Ratio 1.2:1 to infinity (stepped)
Attack Time 0.5ms to 50ms per dB (stepped)
Release Time 10ms to 1 sec per dB (stepped)
Maximum Output Level +20dBu
Frequency Response 20Hz to 20kHz, +/-0.25dB
Dynamic Range >110dB, 20Hz to 20kHz unweighted
Noise <-90dBu unweighted
Dimensions 19" x 8" x 3 1/2"
Specialties
Programmable high and low pass filters
Programmable delay up to 1.364 seconds
Prijs inclusief BTW (factuur op aanvraag)
Filter Type
Graphic, constant Q, reciprocating
Inputs
Number of Channels 4
Inputs 4 x XLR, 4 x 1/4" TRS phone, 1 x XLR Protea Data In, 1 x 5-pin DIN MIDI In
Outputs
4 x XLR, 4 x 1/4" TRS phone, 1 x XLR Protea Data Out, 1 x 5-pin DIN MIDI Out and Thru
Maximum Input Level +20dBu
Frequency Bands 4 x 28, centered on standard ISO frequencies
Bandwidth 1/3 octave
Range (Boost/Cut) +15dB/-15dB, 0.5dB increments
Compressor Threshold -20dBu to +20dBu
Compression Ratio 1.2:1 to infinity (stepped)
Attack Time 0.5ms to 50ms per dB (stepped)
Release Time 10ms to 1 sec per dB (stepped)
Maximum Output Level +20dBu
Frequency Response 20Hz to 20kHz, +/-0.25dB
Dynamic Range >110dB, 20Hz to 20kHz unweighted
Noise <-90dBu unweighted
Dimensions 19" x 8" x 3 1/2"
Specialties
Programmable high and low pass filters
Programmable delay up to 1.364 seconds
Prijs inclusief BTW (factuur op aanvraag)
...
...
...
...
...
...
...
...
...
...
...
...
