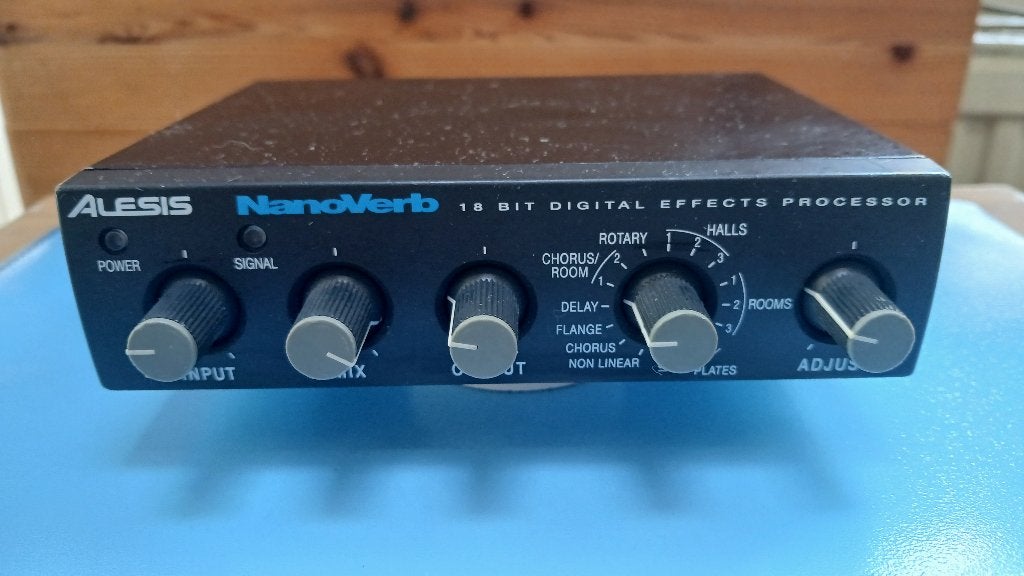

Alesis NanoVerb Effects Processor
Fijne audiomixer en vervormer.
Vele mogelijkheden en effecten. Leuk om mee te experimenteren.
Plus bijbehorende kabels.
Plus adapter 9 volt.
ALESIS, NanoVerb Reference Manual (Digitaal, PDF)

SPECIFICATIONS

Electrical
Frequency Response: ±1dB from 20Hz to 20 kHz
Dynamic Range: >90dB "A" wtg., 20 Hz-22kHz
Distortion: <0.009% @ 1kHz, nominal level (-12 dBfs)
<0.005% @ peak level
Crosstalk: <90dB below full scale
Input
Number of Channels: 2
Format: 1/4" unbalanced
Nominal Level: -10 dBV, adjustable to +4 dBu
Maximum Level: +10 dBV
Impedance: 1MW/channel stereo, 500kW/channel mono
A/D - D/A Conversions
A/D converter: 18 bit Sigma-Delta, 128 times oversampling
D/A converter: 18 bit Sigma-Delta, 8 times oversampling
Output
Number of Channels: 2
Format: 1/4" unbalanced
Maximum Level: +17.5 dBu
Nominal Level -20 dBV or +4dBu, front- panel adjustable
Output Impedance: 500 ohms
Front Panel
Controls INPUT MIX
OUTPUT PROGRAM
ADJUST
Indicators Power LED, Signal Present dual-color LED
Rear Panel
Input (LEFT/MONO, RIGHT) 1/4" 2-conductor
Output (LEFT, RIGHT) 1/4" 2-conductor
BYPASS 1/4" 2-conductor (accepts normally open/closed
momentary footswitches, such as Alesis PD)
Power 9 Volt Power Transformer (Alesis P3)
Processing and Memory
Processor Speed: 3 MIPs (million instructions per second)
Internal processing resolution: 24 bit accumulator
Factory Preset Programs (ROM): 16
Delay memory: 1270 milliseconds
Reverb effects: Concert Hall, Real Room, Plate Reverb,
Nonlinear
Delay effects: Mono Delay
Pitch effects: True Stereo Chorus, Stereo Flange,
Chorus/Room, Rotary
