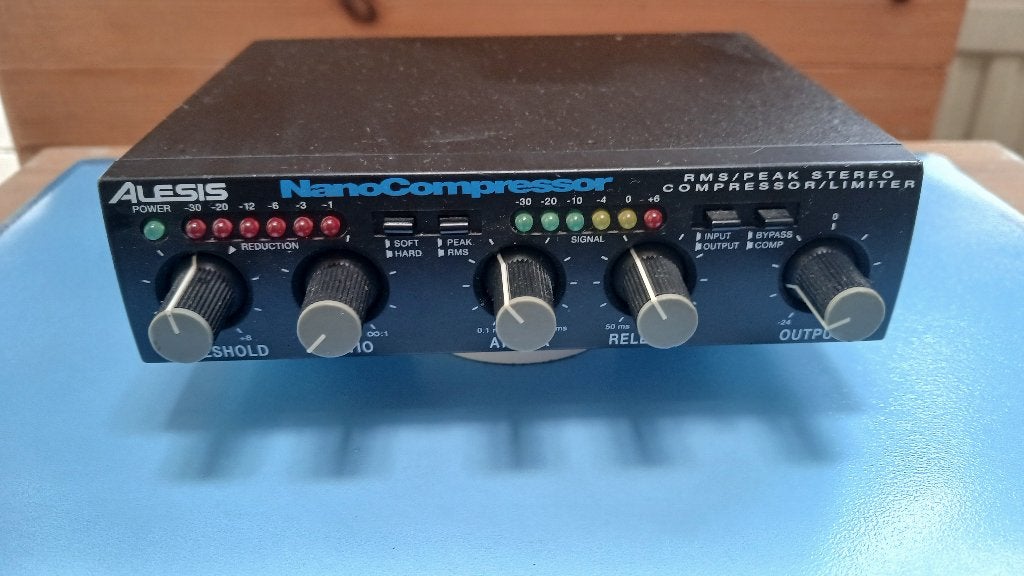

Geweldig apparaat. Doet precies wat hij moet doen, deze limiter compressor.
Zeer fijn afstelbaar. Erg fijn mee gewerkt en klinkt perfect, maar gebruik hem niet meer.
Een must voor het radio en audiowerk.

Online meer informatie. En in bijgeleverde manual natuurlijk.

ALESIS Nano Compressor, Reference Manual (digitaal, PDF)

9v adapter.

SPECIFICATIONS
Electrical
Frequency Response: ±1dB from 20Hz to 20 kHz
Dynamic Range: >109dB, "A" weighting.
Distortion: <0.08% @ 1kHz
Crosstalk: better than 70dB below full scale
Input
Number of Channels: 2
Format: 1/4" unbalanced
Nominal Level: -10 dBV (.316 volts)
Maximum Level: +6 dBV
Impedance: 1MW, unbalanced
Output
Number of Channels: 2
Format: 1/4" unbalanced
Nominal Level -10 dBV, front- panel adjustable
Maximum Level: +16 dBV
Impedance: 470 ohms
Output Level Control Range: 48dB
Compression Specs
Threshold of Limiting: -40dBv to +8dBV
Peak Mode Attack Time: 0.1ms to 200ms
Peak Mode Release Time: 50ms to 3 sec.
RMS Attack/Release Times: Program Dependent
Compression Ratio: 1:1 to ¥:1, selectable Hard or Soft compression
knee. Front panel ticks indicate 1:1, 2:1, 4:1, 8:1,
10:1 and ¥:1.
Front Panel
Controls: THRESHOLD RATIO
ATTACK RELEASE
OUTPUT
Switches: Hard/Soft knee, Peak/RMS, Input/Output
Meter, Bypass/Comp
Meters: Reduction (6 LEDs at -30, -20, -12, -6, -3, -1)
Signal (6 LEDs at -30, -20, -10, -4, 0, +6)
Rear Panel
Input (LEFT, RIGHT) 1/4" 2-conductor
Output (LEFT, RIGHT) 1/4" 2-conductor
Sidechain: 1/4" Stereo 3-conductor (TRS)
Power 9 Volt Power Transformer (Alesis P3)
Dimensions (WxHxD): 5.5” x 1.75” x 4.5” (1/3 rackspace)
Weight: 1.25 lbs.
