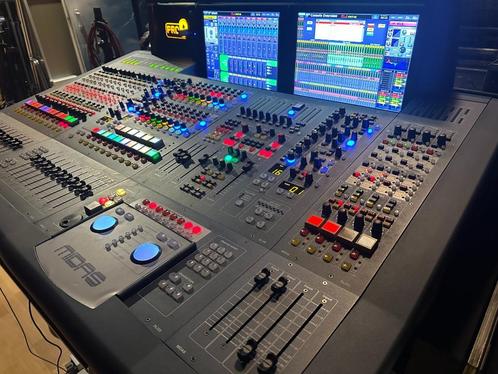

MIDAS PRO-9 mengtafel

Live Digital Console Control Centre with
88 Input-Channels, 35 Mix Buses, 96 kHz Sample.


inclusie DSP rack 371/ 6dsp.
voor 8 DL-racks aansluiting
netwerk - aes50
inclusief Flight case.
Ipad mixing en in-ear via mixtender2 (gratis midas app)

• 35 time-aligned and phase-coherent mix buses
• HyperMAC and AES50 networking allows up to 288 inputs and 294 outputs @ 96 kHz Sample Rate
• Touring grade road case featuring marine grade plywood, aluminium extrusions and composite density protective foam
• HyperMAC router with 192 bidirectional channels over copper and optical fibre
• Provides dual redundant snake connection to DL371PRO9 Audio System Engine
• Snake connections up to 500 m with optical fibre or 100 m with CAT5/5e cable
• 10 VCA (variable control association) and 6 POPulation groups
• Up to 36 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
• Up to 8 multi-channel digital signal processing effects engines
• 29 Midas PRO motorised 100 mm faders
• 2 daylight viewable 15" full colour TFT display screens
• Fully interpolated touch sensitive controls
• Optional wireless remote control with Midas MIXTENDER App for iPad
• Three bay auto-ranging universal switch-mode power supply with N+1 redundancy
