Nieuw in ongeopende doos..

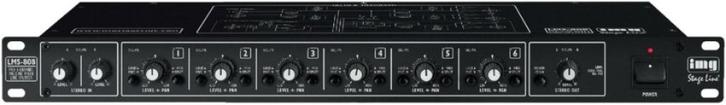

Microphone line mixer/line splitter

• Multifunctional device with three selectable operating modes:
• Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo ouptut
• Line splitter operation for splitting 2 mono line inputs to 6 mono outputs
• Level matching amplifier operation for boosting up to 6 input signals
• 6 mono input channels, each with switchable 12 V phantom power, pan pot, signal/clip LED and individual selection of the operating mode
• 2 mono line input channels, each with level control and signal/clip LED

Technical data:
No. of channels:
8
No. of inputs:
8
Mic input:
1 mV/6.6 kO (mic), 6 x XLR, bal.
Line input:
250 mV/30 kO, 2 x XLR , bal.
100 mV/40 kO, 6 x XLR, bal.
Master output:
1 V/200 O, 6 x XLR, bal. (mono),
1 x XLR L/R, bal. (stereo)
Frequency range:
10-30,000 Hz
THD:
0.02%
S/N ratio:
81 dB, weighted
Crosstalk:
-63 dB
Power supply:
˜ 230 V/50 Hz/10 VA
Mains voltage:
~ 230 V
Mains frequency:
50 Hz
Power consumption, operation:
10 VA
Admiss. ambient temp.:
0-40 °C
Width:
482 mm
Height:
48 mm
Depth:
200 mm
Rack spaces, RS:
1
Weight:
2.9 kg
Packing dimensions (W x H x L):
0.25 x 0.09 x 0.535 m
Gross weight:
3.88 kg
Net weight:
3.14 kg
