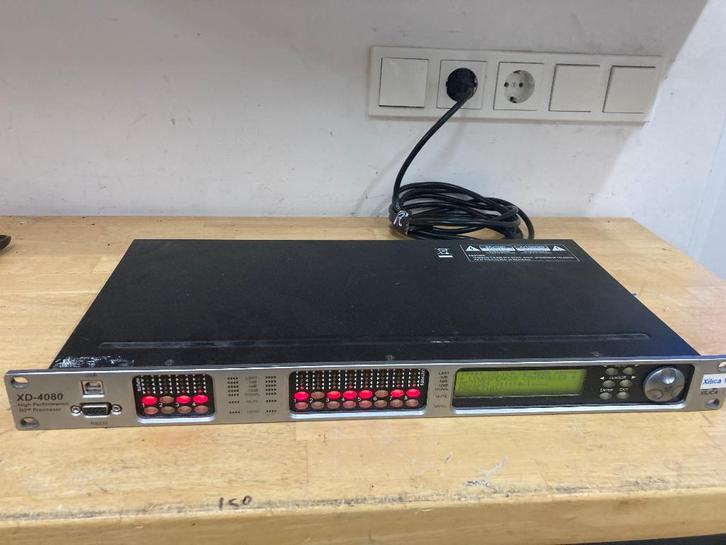

Xilica XD-4080, audio processor

in goede staat, werkend en getest, uiteraard ook te testen.

4 in 8 uit audio processor.

Gaat om de digitale versie met AES.

Description
The XD Series processors are fixed architecture, fully programable, digital, audio system processors that sample at 96kHz and use 40 bit floating point DSP architecture and high performance 24 bit converters to provide best in class audio performance.
Two (2) I/O model sizes are available – 4×8 and 8×8 (as shown above only the XD-8080 model uses Euro connectors in place of XLR’s). Inputs can be matrix mixed/routed to any or all outputs; Our standard signal processing functions (as listed below) are joined by the addition of high performance FIR crossover filters and digital I/O (4×8 & 8×8 AES/EBU on a separate multi-pin connector); Ethernet, USB and RS232 connectivity for configuration, control and software/firmware updates is standard;
Processor configuration can be accomplished in real time from the front panel or with a computer running our easy to use XConsole software GUI (download XConsole and support documents from the right menu); And with the Ethernet connection and a basic wired or wireless router the XConsole GUI can control individual or multiple XD-Series processors from any location.
We provide three (3) remote control options for XD users – use our Touch 7 programmable touch control, use your own Android device running our free XTouch software app, or with our XPanel model LCD display wall control. See XControls in the right menu for more details regarding remote control options.
Features
Fixed architecture DSP96kHz sampling, 40 bit floating point DSP engineHigh performance 24 bit converters4×8 XLR line input/output model; 8×8 I/O model w Euro/Phoenix connectors4×8 & 8×8 AES/EBU digital I/O on a separate multi-pin connectorXD-”M” versions add switchable premium grade mic inputs w 48v phantom powerEthernet, USB, and RS232 connectivity for configuration and controlUp to 16 devices in a Xilica networkProcessor configuration via front panel or easy to useXConsole software GUIMatrix mixer31 Band, 1/3 octave GEQ per input8 Band PEQ per input and outputDual IIR crossover filters per input and outputDual “FIR” multi-tap brick wall crossover filters per output650ms delay per input and outputInput compressors and output LimitersPhase correctionHigh performance switching power supply30 presets / password protection
