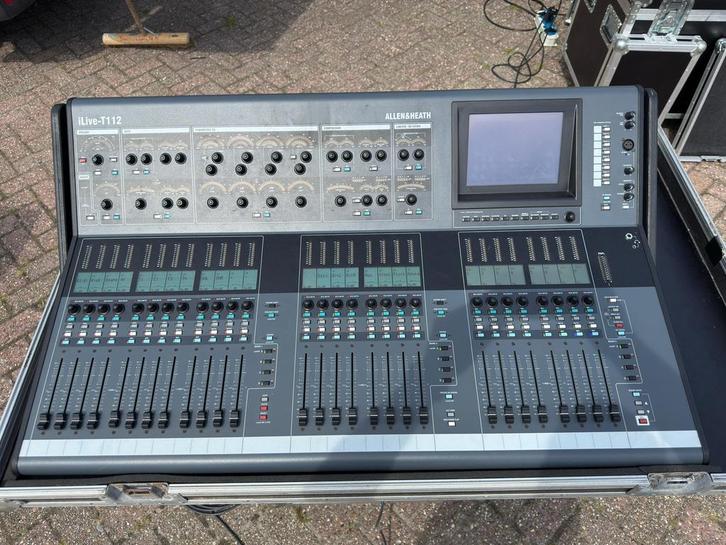

Voor de kenners van A&H I-live T112
Features :
Larger fixed format Surface
Same control as top of the range, modular iLive-112
28 faders – 3 banks, 4 layers = 112 control strips
16 in, 12 out audio
In = 8x TRS line, 4x phono, 2x SPDIF
Out = 8x TRS line, 2x phono, 1x SPDIF, monitor TRS
TB mic can be patched to talkback or channels
ACE™ Surface link (audio and control over single CAT5)
Built in 2 port Ethernet switch
MIDI port
Specifications
System:
Format: Separate MixRack and Surface with control & audio over a single CAT5 ACETM cable
DSP: iDR-64 RackExtra 64x32 mix engine located in MixRack
Audio Network Port A: Local audio to/from Surface - ACETM up to 120m CAT5 cable
Audio Network Port B: Network option plug-in cards available - see website for details
Control Network: TCP/IP Ethernet (links to Surface via Port A ACETM), built-in switch
PL-Anet: At MixRack for A&H PL Series remote controllers and GPIO
MIDI: In/Out.Can tunnel between Surface and MixRack via network
USB x2: Data transfer, archiving and firmware update, external touchscreen, keyboard
VGA: For connecting an external monitor to the TouchScreen
Mains Power: Internal, 100-240V.AC, 47-63Hz, 160W max per unit
Architecture:
Input Channels: 64x with HPF, Insert, Gate, PEQ, Compressor, Limiter/De-esser, Delay
Output Mixes: 32x with Ext-in, Insert, PEQ, 1/3 oct GEQ, Compressor, Limiter, Delay
Mix Types: Any combination of Groups, Auxes, Internal FX, Mains, Matrix (mono or stereo)
Main Mix Types: Mono, LR, LCR, LCRplus, LRSub, LCRSub, LRM, LCRM, None (monitors)
Mono / Stereo: Channels and Mixes may be configured as mono or stereo
Patchbays: Virtual patching of: Inputs, Inserts, FX, Mix Ext in, Outputs, Port B audio channel I/O
Inserts: Inserts assignable on all inputs and mixes, patch to any sockets
FX Engines: 8x internal stereo 'RackExtra' FX racks, each capable of DSP emulations of industry classics
FX Patching: Inserted or Send/Return loop. Mono or stereo sends, stereo returns
FX Returns: 8x extra 'short' stereo return paths (PEQ) or use IP channels (full processing)
Max Sources to the Mix: 72x (64 IP channels and 8x stereo internal FX returns)
DCAs: 16x can be used as DCA or Mute groups
Other processing: 64x Gates, 96x Compressors, 96x Limiters, 112x PEQ, 32x GEQ
Performance :
Digital processing: 48kHz sampling, up to 48-bit processing
System Latency: 4kΩ, +32dBu max input, Noise EIN (150Ω) -127dB
TRS Jack Line Inputs: +/-24dB trim, >6kΩ, +4dBu nominal, +22dBu max
RCA Phono Line Inputs: +/-24dB trim, >10kΩ, 0dBu nominal, +18dBu max
XLR Line Outputs: Balanced, Relay protected, <75Ω, +4dBu nominal, +22dBu max
TRS Jack Line Outputs: Balanced, Relay protected, <75Ω, +4dBu nominal, +22dBu max
RCA Phono Line Outputs: Unbalanced, Relay protected, <75Ω, 0dBu nominal, +18dBu max
RCA Phono Digital: SPDIF (2 channel) 48kHz
Audio Connections:
iLive-T80 Surface: Inputs 16x [4xTRS, 2xRCA, 1xSPDIF], Outputs 14x [4xTRS, 2xRCA, 1xSPDIF]
Local Monitor TRS L and R available at the Surface
Headphones MixRack: 1/4" jack. Surface: 1/4" jack and minijack
Control:
iLive-T112 Surface: 28x faders, 4 layers = 112 control strips
Strip Assign: Assign any strip as Input, FX, Mix master, DCA, engineer's Wedge/IEM
TouchScreen: 800x600 backlit, colour, touch with on-screen keyboard, data encoder
Processing Strip: Instant access to all processing, Illuminated encoders, meters, PFL access
Soft Keys: 8x user assignable
Faders: 100mm motorised, GEQ fader flip mode
Meters: 3 colour, 12 LED meter on every strip, PAFL, proc block and TouchScreen
Edit Functions: Copy, Paste, Reset of processing and mix parameters
Monitor Functions: PFL/AFL selectable, PAFL tools, Local/Phones outputs, Dual Wedge/IEM
Talkback: TB mic with 48V, assignable to any mix, patching, Latch function
Additional Surface Functions: Freeze in Layers, Alt View, Screen and LED dimmer
Other control: MIDI, A&H PL Series remote controllers
iLive Editor software for laptop: Java based on;ine/offline editor and live control, connect via TCP/IP network
Memories:
Libraries: Name and store setup, processing, FX and channel parameters
Scenes: 250x Store all or selected parameters, editable tree structure, Recall Safes
Shows: Stores current settings, preferences, all Scenes, Libraries
User Profiles: Administrator and up to 7 Guest users, Permissions, Password protectable
USB: Transfer and archive Shows and Libraries, USB Show Scene filter
Operating Temperature Range
5deg - 45deg Celsius.
Below: preheat prior to operation
Above: cooling during operation required
Weights and Dimensions :
Dimensions: 1083x635x280mm
Weight: 27kg
