Kenmerken
Conditie
Gebruikt
Aantal kanalen
5 tot 10 kanalen
Eigenschappen
Microfooningang
Beschrijving

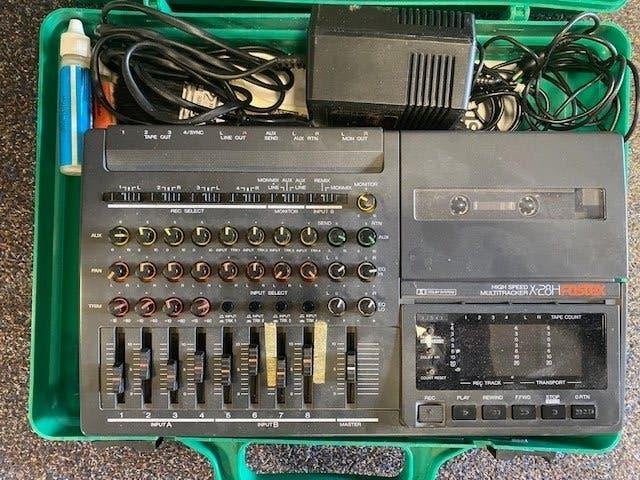

Als je opruimt vind je nog eens wat terug!: De Fostex X-28 H multitracker in goede staat, speelt nog zover ik kan zien (het cassette bandje loopt) met originele Nederlandse gebruiksaanwijzing. Pure nostalgie!
FOSTEX X28 SPECIFICATIONS:
Input Impedance
(All inputs):
20kOhm
Input Level
(Input A):
-60dBV (1mV) to -10dBV (300mV)
(Input B):
-10dBV fixed
Output Impedance
(all line outputs):
10kOhm
Output Level
(all line outputs):
-10dBV
Tape type:
IECType II (High bias) C-60 to C-90
Tape speed:
4.75cm/s
Wow and flutter:
+/-0.1% (IEC/ANSI)
Frequency Response
(Mixer):
20Hz to 20kHz
(Recorder):
40Hz to 12.5kHz
S/N ratio:
>58dB
Crosstalk:
better than 50dB down @ 1kHz
Erasure ratio:
better than 70dB @ 1 kHz
Head Type
Record/Play:
4-channel Hard Permalloy
Erase:
4-channel Ferrite
FOSTEX X28 SPECIFICATIONS:
Input Impedance
(All inputs):
20kOhm
Input Level
(Input A):
-60dBV (1mV) to -10dBV (300mV)
(Input B):
-10dBV fixed
Output Impedance
(all line outputs):
10kOhm
Output Level
(all line outputs):
-10dBV
Tape type:
IECType II (High bias) C-60 to C-90
Tape speed:
4.75cm/s
Wow and flutter:
+/-0.1% (IEC/ANSI)
Frequency Response
(Mixer):
20Hz to 20kHz
(Recorder):
40Hz to 12.5kHz
S/N ratio:
>58dB
Crosstalk:
better than 50dB down @ 1kHz
Erasure ratio:
better than 70dB @ 1 kHz
Head Type
Record/Play:
4-channel Hard Permalloy
Erase:
4-channel Ferrite
...
...
...
...
...
...
...
...
...
...
...
...
