Kenmerken
Conditie
Zo goed als nieuw
Aantal kanalen
5 tot 10 kanalen
Eigenschappen
Microfooningang
Beschrijving

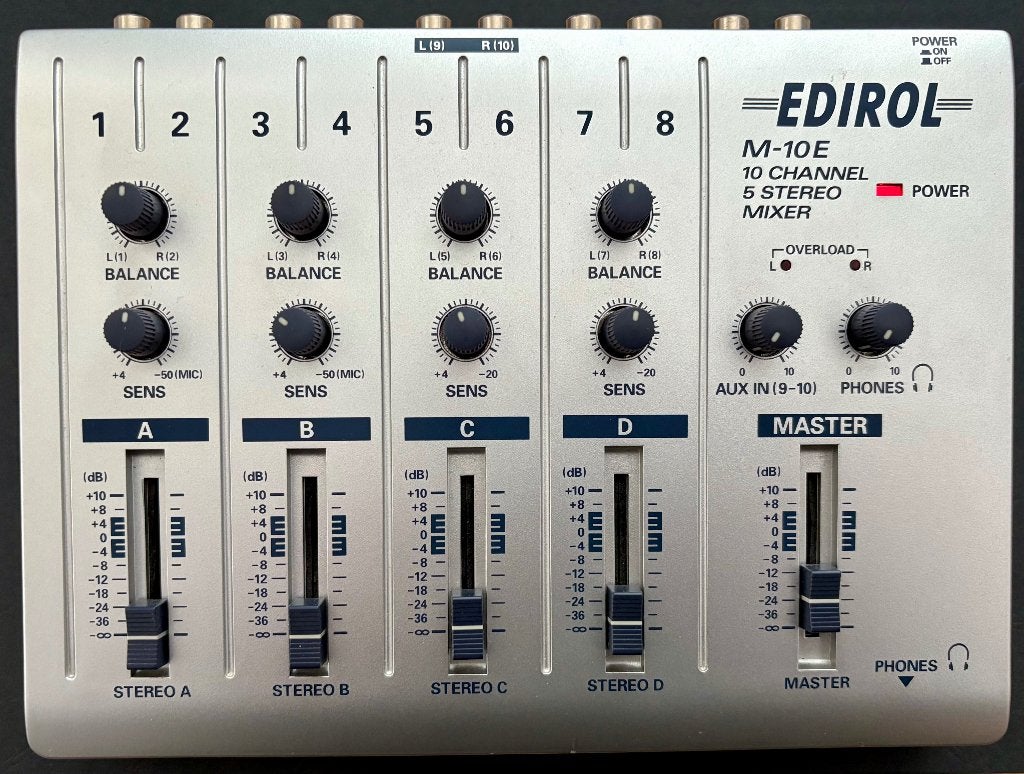

(Boss) Edirol Mixer
Feel the quality of the pots and sliders, then listen to its amazingly quiet sound.The Edirol M-10E Mixer is designed for multimedia use. It’s battery-powered and allows sound from peripherals such as sound modules, CD-players, & hi-impedance microphones to be mixed for the ideal playback balance. It can control up to five stereo channels (4 stereo channels + AUX) of sound.
The M-10E is ideal for editing video where it can be used to mix narrations, background music, & sound effects. With a 9V battery, you can take this into the field as an inexpensive mixer to your camera. When paired with a USB audio interface, such as the UA-1X, the M-10E offers mixing capabilities directly with the computer through USB. With a number of RCA inputs, the M-10E is perfect for recording from a number of sources for video purposes.
Main Features:
• 10 analog inputs, 5 stereo audio sources
• Wide input range from microphone to line level(-50to+4dBm)
• 4 stereo outputs (Master RCA, Master 1/4" phone, AUX Out, Headphone out)
• BatteryOperation(9V)
• Compact,lightweightbody
• Overload indicators
• Included ACadapter
• LongBatteryLife(upto7hours)
Specifications:
• Frequency Response: 10 Hz to 50 kHz +1/-3dB (at minimum gain)
• Indicators:Power Indicator, Overload Indicator (L/R)
• Connectors:
Headphone Jack (Stereo Mini)
Input (L/R) x 4 (RCA phono type)
Input (L(Mono)/R) x 2 (1/4" phone type) Output (L/R) x 1 (RCA phono type) Output (L/R) x 1 (1/4" phone type)
AUX IN (L/R) x 1 (RCA phono type)
AUX OUT (L/R) x 1 (RCA phono type)
AC Adaptor Jack (DC 9V)
Power Supply: DC 9V: Dry Battery, AC Adaptor
Current Draw: 45 mA (at maximum)
Dimensions: 218(W)x170(D)x60(H)mm
Weight: 750 g (Including Battery)
Nominal Input Level
Input 1-4: Input 5-8: AUX IN:
Input Impedance
Input 1-4: Input 5-8: AUX IN:
-50 dBm to +4 dBm -20 dBm to +4 dBm -10 dBm
20 kΩ (Stereo)/10 kΩ (Mono) 20 kΩ (Stereo)
20 kΩ to 120 kΩ (Stereo)
Total Harmonic Distortion
.05% or less (minimum gain, 10 Hz to 50kHz at nominal output)
Equivalent Input Noise: 107 dBm
Feel the quality of the pots and sliders, then listen to its amazingly quiet sound.The Edirol M-10E Mixer is designed for multimedia use. It’s battery-powered and allows sound from peripherals such as sound modules, CD-players, & hi-impedance microphones to be mixed for the ideal playback balance. It can control up to five stereo channels (4 stereo channels + AUX) of sound.
The M-10E is ideal for editing video where it can be used to mix narrations, background music, & sound effects. With a 9V battery, you can take this into the field as an inexpensive mixer to your camera. When paired with a USB audio interface, such as the UA-1X, the M-10E offers mixing capabilities directly with the computer through USB. With a number of RCA inputs, the M-10E is perfect for recording from a number of sources for video purposes.
Main Features:
• 10 analog inputs, 5 stereo audio sources
• Wide input range from microphone to line level(-50to+4dBm)
• 4 stereo outputs (Master RCA, Master 1/4" phone, AUX Out, Headphone out)
• BatteryOperation(9V)
• Compact,lightweightbody
• Overload indicators
• Included ACadapter
• LongBatteryLife(upto7hours)
Specifications:
• Frequency Response: 10 Hz to 50 kHz +1/-3dB (at minimum gain)
• Indicators:Power Indicator, Overload Indicator (L/R)
• Connectors:
Headphone Jack (Stereo Mini)
Input (L/R) x 4 (RCA phono type)
Input (L(Mono)/R) x 2 (1/4" phone type) Output (L/R) x 1 (RCA phono type) Output (L/R) x 1 (1/4" phone type)
AUX IN (L/R) x 1 (RCA phono type)
AUX OUT (L/R) x 1 (RCA phono type)
AC Adaptor Jack (DC 9V)
Power Supply: DC 9V: Dry Battery, AC Adaptor
Current Draw: 45 mA (at maximum)
Dimensions: 218(W)x170(D)x60(H)mm
Weight: 750 g (Including Battery)
Nominal Input Level
Input 1-4: Input 5-8: AUX IN:
Input Impedance
Input 1-4: Input 5-8: AUX IN:
-50 dBm to +4 dBm -20 dBm to +4 dBm -10 dBm
20 kΩ (Stereo)/10 kΩ (Mono) 20 kΩ (Stereo)
20 kΩ to 120 kΩ (Stereo)
Total Harmonic Distortion
.05% or less (minimum gain, 10 Hz to 50kHz at nominal output)
Equivalent Input Noise: 107 dBm
...
...
...
...
...
...
...
...
...
...
...
...
