Ik citeer delen uit een testblad:
"QY10 PRESET PATTERNS. Here is a list of the musical genres that are represented; the number in parentheses gives the number of preset patterns in that genre.
Funk (13)
Funk Ballad (2)
Dance music — Eurodisco, house, etc. (9)
Salsa (3)
Bossa Nova (2)
New Age (1)
Country (2)
Ballads (4)
Jazz (4)
Reggae (2)
Pop Rock (4)
Hard Rock (2)
Progressive Rock (1)
Rock and Boogie (11)
Blues (2)
Rhythm & Blues (3)
Motown (1)
Gospel (1)
Bluegrass (1)
Drum breaks (6)
Ethnic (2)

En : 24 user patterns 299 measures each.

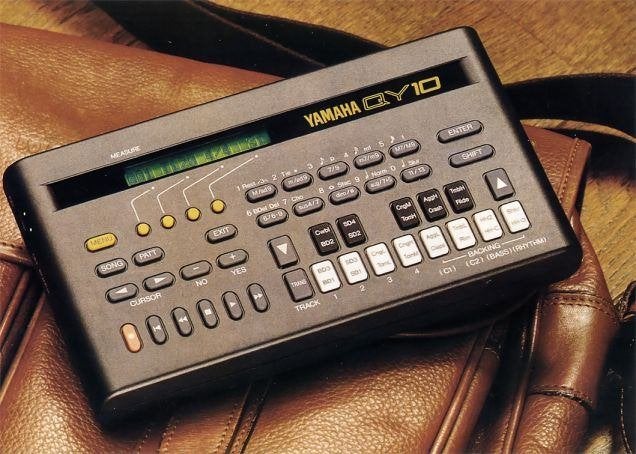

Model: QY-10, Class: arranger module
Pads: 12 [ 'aanslagduur-'gevoelig (zonder aftertouch).]
Country: Japan
Dimensions: 187 x 25 x 104 mm
Synthesis: PCM rompler
Polyphony: 32 voices
Sounds: 30 instruments [naast de drums / percussies]
Sequencer: 8 tracks
Quantisize: 1/4 ->1/32
Chords: 20 presets
Sync: Midi clock
Midi: IN / OUT / THRU
DAC: YM7138
PSU: 12VDC .

37 buttons, 12 pads [ d.m.v. zijn 1 oktaafs mini-keyboard ].
Back panel terminal connections:
- 1, 5 mm stereo line out
- headphones out
- Midi interface
- volume gain slider
- Powers supply is external with 12 V negative in center 300 mA

Main panel features a 16 x 2 lines display.
Chords
up to 2 Chords channels allows to enter directly one of the 20 triads presets (most commons)

TRACKS
Up to 8 tracks at 1/96 resolution.
Qy sequencer offers some edit functions like Erase, Insert measure, Merge tracks, track mute or note transpose and quantizes at resolution between 1/4 and 1/32.
RECORDING
Sequences can be recorded in 2 entry notes modes:
- real-time: notes triggered by pads or a Midi keyboard.
- step Mode: with rest pause and variable note length.

SYNC
Sequencer can be synched (slave) to external Midi clock.

"Is it a bird? Is it a plane? No! It's a batt... [te weten: 6x AA] powered, pocket sized, 8-track sequencer / 8-part synth'n'drums module. Anderton checks out Yamaha's mighty midget. ... the headphone volume level isn't quite loud enough to allow composing on a noisy tube train, but aside from that the songwriting machine of my dreams is now reality. The QY10 brings to musicians what the laptop computer brings to writers: the power to be portable. ...
The QY10 is an 8-track sequencer with built-in sounds (30 instruments and 26 drum sounds), 24 ppqn resolution, batt... (6 cells) or optional AC adapter operation, and the memory to store up to eight separate songs.
Like drum machines, songs can be built by linking short (one to eight measure) patterns, although these patterns include melodic instruments as well as drums. However, you can also record linear sequence tracks, or combine the two approaches: string together a series of patterns, then overdub lines that run the length of the tune.

Of the eight tracks, four are dedicated to a 'backing track' consisting of bass, drums, and two different melodic/chordal instruments. Each of the 76 preset patterns plays a backing track with a particular musical style (see box). What keeps these presets from being merely a laundry list of musical cliches is that the performances and sounds are really pretty good. There are also 24 user-programmable patterns (up to eight measures each). The user pattern could start off as a copy of a preset pattern which you then edit, or be created from scratch. ...

The sounds in the QY10 are surprisingly good. Sure, hook the unit's line out into a decent playback system and you'll hear awkward loops on the strings, buzzing on some of the really tight loops, and quantisation noise. Yet these sounds still go way beyond the average 'consumer' device.

What's more, they're musically useful. All sounds can be transposed, sometimes to the point of becoming a new sound altogether. Transposing way down gives rumbles and roars that I'm sure someone will put to extremely good use ..."

De gebruiksaanwijzing in pdf-vorm is up-to-date en ZEER dik!

Vergelijkbaar en ook te koop: Zoo. rt323, maar die (de Z.om) kost wat meer. Die en deze Yamaha zijn geen portastudios (zulks heb ook te koop. De luxere daarvan kunnen (deels) wat deze drumcomputer / arrangers / sequencers kunnen, maar hebben geen 1 oktaafs toetsenbordje.)

Ophalen kan.
Verzending kan. Porto 5,50 euro dhl, of verzekerd + aangetekend met postnl wat euro's meer).
